Understanding Type J Thermocouple Extension Wire: Everything You Need to Know

Understanding Type J Thermocouple Extension Wire: Everything You Need to Know
Understanding Type J Thermocouple Extension Wire: Everything You Need to Know
Facebook
Twitter
Reddit
LinkedIn

Due to their importance in temperature measurement in a broad range of industries, thermocouples are most suitable among most extension wire types. Several thermocouple extension wires are used in extreme temperature conditions of up to 1382 (750) degrees Fahrenheit, and in this blog, we focus on type J thermocouple-grade extension wires. The content here advertises how Type J is advantageous and alluring for usage due to its iron with constant materials. Consequently, users will learn fundamental and technical information as well as the application and installation instructions for enhancing Type J thermocouples. Furthermore, we will discuss factors to consider and how best to address them to ensure that adequate thermal accuracy is achieved over time, which will be helpful to readers in the field of thermal sensors.

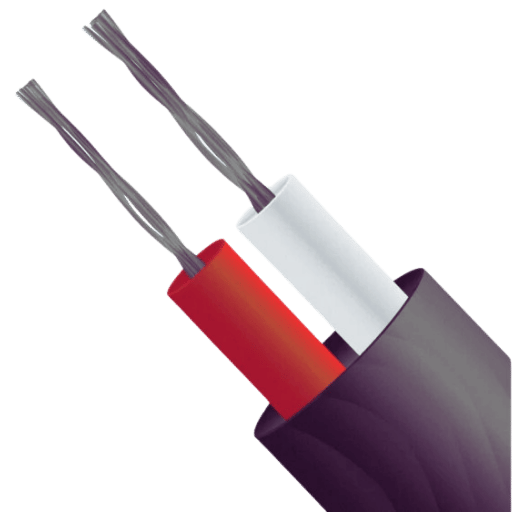

What is a Type J Thermocouple?

What is a Type J Thermocouple?

The Type J thermocouple is simple and composed of iron and constant wires joining at one junction to measure the temperature. One of the most commonly used factory thermocouples will work correctly in the temperature range of −346F (−210C) to 1382F (750C). Due to the excellent performance of Type J thermocouples in oxidizing and reducing environments, these thermocouples are widely used in applications. However, these do not exceed this temperature range and are economical and dependable.

Definition and Basic Components of Type J Thermocouples

Type J thermocouples can be defined as a thermoelectric instrument for measuring temperature that consists of two metal alloys, i.e., iron and constantan, which are joined at a junction. These metals are connected at their soldering point, known as the measuring point. Essential workings are based on the Seebeck effect. Namely, there is a temperature difference across the abovementioned wires in response to which a voltage is produced. This phenomenon allows for accurate measurement of temperature using both J and K-type thermocouples. This is because the iron-constantan combination of materials is sensitive to temperature changes but also maintains structural integrity under elevated temperatures, which is why it applies to many industrial processes. Its design simplicity and efficiency are adhered to in engineering so that it does not affect the already established thermal management systems.

Comparison with Other Thermocouple Types

Several notable distinctions stand out when juxtaposing Type J thermocouples with others like Type K and Type T. J-type thermocouples, made of iron and constantan wires, operate efficiently in the temperature range of -346°F(-210°C) to 1,382°F(750°C). These prove to be of tremendous benefit, especially in situations where / say, moderate temperatures are maintained. Still, there is a high need for accuracy. On the other hand, K-type thermocouples using chromel and alumel in their construction have a more comprehensive temperature range of use -454°F (-270°C) – 2,482°F (1,370°C) and are therefore used in slightly thicker applications. At the same time, T-type thermocouples made of copper and constantan work very well in temperatures ranging from -454° F (-270° C) to 700° F (370° C) since they are pretty sensitive and can easily measure good precision for very low temperatures, thus making them fit for use in these areas of cryogenics or laboratory environments. In the end, what matters in choosing the right thermocouple type is mainly the application in question, from the temperature range to the desired sensitivity and environmental conditions.

Common Applications of Type J Thermocouples

Due to their precision and affordability, Type J thermocouples are among the most preferred in many industries. They are mainly applied in the plastics industry to control and measure the processing temperatures of injection moulds. They are also used for various equipment in the food industry, such as ovens and refrigerators, which require accurate temperature control to enhance durability and safety. In manufacturing, Type J thermocouples are noteworthy for the heat treatment of metals such as steel due to their strength and efficiency at moderate temperatures. The enhancement of overall product quality and process performance can be attributed to conditions that allow these thermocouples to work accurately on various products.

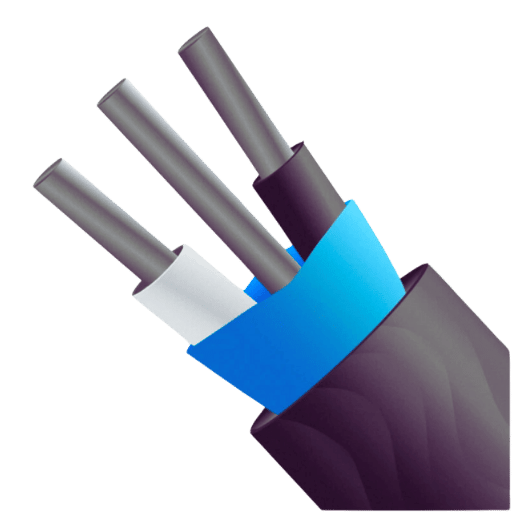

How Does Thermocouple Wire Work?

How Does Thermocouple Wire Work?

Understanding Thermocouple Functionality

It is commonly held that thermocouples operate based on the emf phenomenon even though any closed thermoelectric circuit made up of two metals with unidentical junctions at different temperatures produces emt. This voltage generated is proportional to the difference in temperature of the two junctions, making the thermocouple a temperature-measuring device. A thermocouple comprises a measuring or hot junction and a reference junction-type thermocouple wire. The contrast in temperature between these two points causes an output of voltage that can easily be harkened to temperature readings through several methods, including calibration or setup. Thermocouples are particularly favorable in several industrial automation due to their durability, large operational temperature span, and ability to take rapid readings.

The Role of Insulation in Thermocouple Performance

Thermocouple wires are surrounded by insulation, which serves the essential function of preventing electrical interference and environmental conditions that will alter the device’s readings. Two types of insulation are most often used: fiberglass and Teflon, and each of these materials has advantages that are suitable for given thermometric wire types. Fiberglass has an excellent heat resistance of approximately 700°C, making it safe for long-date high-temperature installations such as j-type thermocouples and k-type thermocouples in crystal. On the other hand, Teflon is more resistant to chemicals but is used for medium-temperature applications up to about 260°C. The insulating material selected determines the temperature and environmental effects, such as thermal conductivity, mechanical strength, and electrical isolation. Using the right insulating cover ensures that the thermocouple readings are accurate over time and in different surroundings without bias, especially in highly realistic temperature states. In addition, employing the correct type of insulation reduces the errors associated with the measurements done on the thermocouple by minimizing the impact of extrinsic factors such as moisture, physical stress, and electromagnetic interference.

Temperature Range and Tolerance for Type J

A Type J Thermocouple embodies an iron and a constantan(i.e., copper-nickel alloy) wire. Compared to other thermocouples, of course, it is a standard type J thermocouple. It provides temperature measurements from 0 degrees Celsius to about 760 degrees Celsius. Yet exposed iron wire in j-type thermocouples may also be oxidized if it exceeds 550 degrees C for an excessive period, making it brittle and affecting its durability. The tolerance for these thermocouples at the 0 degrees C to 275 degrees C range is ±2.2 degree C of the measured temperature or 0.75% of the measured temperature, whichever is higher. Tolerance for temperatures above 275 degrees C is usually ±2.2degree c or 2 percent of the measured temperature. These factors make Type J thermocouples ideal, where elements must be utilized for dynamic industrial applications with moderate temperature gauging receptacles.

Choosing the Right Extension Grade Wire

Choosing the Right Extension Grade Wire

Difference Between Extension Grade and Thermocouple Grade

Extension-grade wires and thermocouple-grade wires are helpful in measurement systems intended to protect the applicability of the thermocouple circuit. Such cables are said to be made as thermocouples only made out of the same electrode material, with thermocouples, in turn, keeping computational disorder at the measured temperature through the range of operation of the appliance. Typically, these wires are used in areas with high heat application, and accuracy is questioned. Alternatively, extension-grade cables are constructed with materials of the same type but low grade, meant to carry the temperature constants from the thermocouple’s proximal end to the control room instruments over long distances. These wires are intended to be used in nondestructive testing at room temperature and above, where this temperature tolerance can be accepted within limitations. In as much as thermocouples grade wires are necessary where high levels of accuracy in measurements are sought, extension grade wires are less costly as they do not fully have to be built for those sections where thermocouples chronically endure outside high temperatures.

Factors to Consider When Selecting Thermocouple Extension Wire

Some key factors, such as the ones below, if settled properly, will promote accurate temperature readings and alleviate system inefficiency when picking the thermocouple extension wire.

  1. Thermocouple Extension Wire Compatibility with Thermocouple: Different types of thermocouples, commonly identified using letters such as J, K, T, E, or N, will have corresponding extension wire types based on their material properties. Invalid extension wires introduce distortion to the signal, leading to measurement errors.
  2. Temperature Range: Check the limits of temperature within which the extension wire would be used. For example, extension wires with room temperature factors may seem too weak to withstand higher temperature ranges, resulting in wrong recordings.
  3. Insulation Material: Insulation material selection also affects thermal insulation performance and the mechanical strength of the wires. Materials include PVC, Teflon, fiberglass, etc., and each has different thermal effects and wear-and-tear resistance to moisture and chemicals, among other things.
  4. Tolerance Levels: Depending on their use, extension-grade wires will exhibit variations in intolerances, ultimately impacting the measurement system’s accuracy. It is important to note that an extension wire with the proper tolerance levels for the desired measurement system accuracy is paramount.
  5. Distance of Signal Transmission: In situations where the signal transmission is large, potential signal loss or noise interference, especially with the thermocouple wire type, may occur. To preserve integrity, a choice of wire diameter and wire material that increases resistance and leads to high-distance signal loss or degradation should be avoided.
  6. Area of Installation: The location where the wire will be installed is subject to environmental factors, including humidity, chemical factors, physical abrasion, etc. This helps to enhance durability and prevent weak areas which may cause destruction or corrosion.

Considering these factors will assist in the appropriate selection of a thermocouple extension wire, allowing the trade-off of the costs, fidelity, and robustness of the temperature measurement system.

Importance of Wire Gage and Compatibility

The wire gauge is significant in measuring electrical resistance and the current handling capacity of an extension wire. Fig. 1 describes the gauge of the wire, in which more significant gauge numbers represent smaller wire diameters. This may cause high resistance, leading to signal loss, especially for long cables. Such high resistance may not enhance the performance of the temperature measurement systems due to inaccurate and unreliable measurements. A lower gauge number means a thicker wire with better conductivity, ensuring presentable signals.

Compatibility guarantees that the extension wire is appropriate for the specific type of thermocouple employed, thereby avoiding the problem of providing the wrong kind of wire. Matching extension wires are necessary for different types of thermocouples since they are constructed of varying wire materials and to avoid discrepancies induced by variations in the materials used. Wire gage and compatibility requirements improve the measurement system when wires are used, as proper wire distortion and degeneration due to adverse conditions are guaranteed.

Types of Insulation for Thermocouple Wire

Types of Insulation for Thermocouple Wire

Overview of PVC, PFA, and Fiberglass Insulation

The first account presents several thermocouple wire insulations, including plasticized polyvinyl Chloride, Polyfluoropolymer, and fiberglass. As I examine them, I see that each variety of insulation appears to perform optimally in thermocouple wire installation. The plasticized polyvinyl chloride insulation materials accept water and various chemicals and do not deteriorate; therefore, they can be used for non-specialized purposes and in low-temperature conditions. However, they bear a relatively higher service temperature than that.

The plastic-molded Perfluoroalkoxy (PFA) insulation materials allow for the application of the wire within high-temperature and Acidic and Base Caustic media. They are useful in ultra-expansive applications because they give the same useful properties over an incredible temperature difference and maintain useful properties over a large span of temperature through low temperatures without any brittleness.

The fiberglass insulation does not fail to impress with the applied elements roughing up to very high and withstands even Robert Holt test temperature. It is used due to its thermic stability and mechanical resistance but leaves enough room for Alcides, which need fixation to remedy imperfect, so use coats or impregnation. Each insulation type is aimed at the surrounding factors that allow the wire to be used to inform the decision based on the application needs and performance parameters of the thermocouple and extension application.

Benefits of PVC Insulated Wire

PVC insulated wire finds everyday use due to its low cost and diverse applications. The most emphasized beneficial attribute is the superior resistance to many chemicals and moisture, making it suited for places with such exposures. In addition, PVC material for insulation has good performance in providing electrical field isolation, aiding in the integrity of signals carried by the wire. It exhibits high mechanical strength as it experiences mechanical forces and wears out with time, enhancing the use of this wire. It has also shown ease of installation and flexibility, positively increasing its practicality and making it effective in home and corporate usage. Though it tolerates heat moderately, the PVC insulated wire can still be applied for many general purposes; thus, it is unnecessary to explain why more advanced and costly insulations are used.

High-Temperature Applications and PFA Insulation

PFA (Perfluoroalkoxy) is also thermally stable and solvent-resistant at extremely high temperatures, which is why it is often used for regions that undergo harsh conditions. High performance is one of thermal stability and factors with PFA’s limit of 260 C/500 F, even in aggressive corrosion-resistant areas. PFA composites are most valuable for aerospace and automotive industrial applications, always demanding performance, reliability, and safety. Because there is no fire risk and PFA-insulated wires own excellent strength, working within extreme conditions is safe and efficient because the dangers of fires are low. PFA sya2061 does not burn, however, regarding getting rid of the aeronautical and elliptical artwork, which looks excellent and costly since there are no after expectations of whether it will perform.

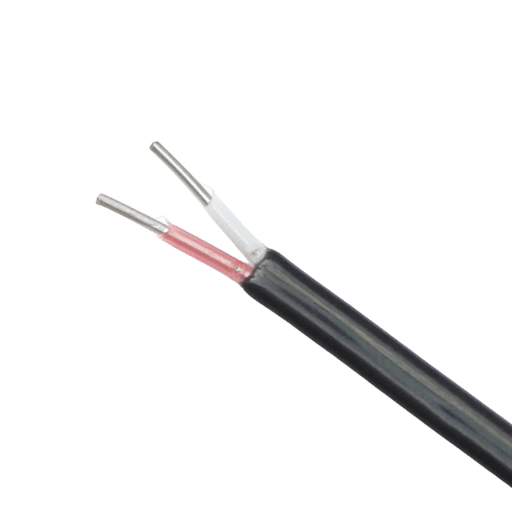

Availability of Thermocouple Extension Wire in the Market

Availability of Thermocouple Extension Wire in the Market

Finding Thermocouple Wire in Stock

To find readily available thermocouple extension wire in stock, it is worthwhile to look around major online shops and industrial product websites. Typical search results for thermocouple wire can be found on the Omega Engineering, Grainger, and Digi-Key Electronics sites. Besides the literature, the Omega Engineering website makes it possible to see multiple types of thermocouple wires and learn about their availability. Grainger offers thermocouple wires suitable for use in both HVAC and industrial settings and shows expected stock levels for procurement within the same order. In the same way, Digi-Key Electronics targets engineers and hobbyists, and a dedicated section of the company’s web page caters to thermocouple wire needs with a dedicated catalog, updating the stock level in real time and offering fast delivery options. These sites have significant stock and, thus, are good sites to get thermocouple wires as quickly as possible.

Understanding Available from Stock Options

As stock options become more prevalent, studying their applications in thermocouple extension wires is essential. This aspect requires an examination of the stocks of such leading companies as Omega Engineering, Grainger, and Digi-Key Electronics. Across its range of thermocouple wires, Omega Engineering usually lists all available stock items and their composition and rating information. A company with a vast stock is Grainger, which provides thermocouple wires of different grades with details of stock availability. A more commendable approach used by Digi-Key Electronics includes providing precise stock availability per thermocouple model with continuous updates. These platforms make it possible to order and procure everything from the stock because all items are in order, data is current, and so are the deliveries, hence timely satisfaction of technical needs.

Reference Sources

Thermocouple

Wire

Insulator (electricity)

Frequently Asked Questions (FAQs)

Q: What is a Type J thermocouple? What makes it different from other types?

A: A Type J thermocouple is another specific arrangement of a temperature-measuring instrument working with an iron-constantan alloy. It lies off other types, such as Thermocouple Type K, in the make of its construction and the temperatures it can measure. Type J thermocouples provide very high sensitivity levels and, therefore, are employed in various industrial industries to measure temperatures no more than 760oC 1400oF.

Q: What is the use of Type J thermocouple wire?

A: Type J thermocouple wire is used to increase the length of the lead wire and connect the end of a Type J thermocouple sensor to a measuring instrument. Its construction is such that it retains the same EMF (electromotive force) properties as that of the thermocouple itself so that long distances are bridged without losing temperature reading where the thermocouple wire type is used. In such circumstances, this wire is essential, as the sensor has to be located at an appreciable distance from the read-out device.

Q: How is Type J thermocouple wire different from Type K thermocouple wire?

A: J and K are also widely used thermocouple types, but their materials and temperature ranges differ vastly. According to their construction, Type J consists of iron and constantan, and Type K consists of chrome and alumni. The temperature range of Type J is far less than that of Type K, at only -760 degrees Celsius, while Type K may be as high as 1260 degrees Celsius. The particular application and the required temperature dictate which one is to be selected.

Q: Why is it necessary to have a suitable thermocouple cable for extensions?

A: Any extension inserted should have a suitable thermocouple cable to preserve precision. Successive interlacing of alloys varies in thermo-emf responses to temperature. Temperature errors can potentially be made by using the appropriate extension wire. This enhances the assured precision and consistency in the measurements for Type J thermocouples where Type J extension wire would be used.

Q. What kinds of insulation are available for Type J thermocouple wire?

A: Type J thermocouple wire is offered with various insulation materials for different applications and temperatures. PFA (Perfluoroalkoxy) is commonly used insulation owing to its excellent chemical and high-temperature capabilities; FEP (Fluorinated Ethylene Propylene) is also used. High temperatures may also suit fiberglass or Kapton, which might be used by some end-users.

Q. What wire gauge is most commonly associated with Type J thermocouple extension wire?

A: Of course, it is possible to buy Type J thermocouple extension wire, for example, 32 gauge wire, but a more common standard is 24 gauge. However, wire gauge choice is determined by other parameters, such as the required extension length, the type of environment, and the application of the wire. For longer runs and worse electromagnet interference, thicker wires (lower gauge numbers) may be used.

Q: In what ways do international standards influence type J thermocouple wire?

A: The Type J thermocouple wire is produced and color-coded according to the schemas adopted by the International Standards Organization for IEC, etc. These rules ensure that thermocouple wire characteristics and color code consistencies are the same across many manufacturers and countries. For Type J, the wire positive lead is primarily black and negative white in the US market while black and white in other areas.

Q: Is it recommended to use Type J thermocouple extension wire with other types that use other thermocouples?

A: Type J thermocouple extension wire should not be applied to other thermocouples too often. Each thermocouple type has distinct EMF properties, and it is recognized that the amalgamation of thermocouple types will result in significant distortion in measurement. Thermocouple connectors have extension wires that should always be employed with the corresponding thermocouple type to obtain the required temperature points or to ensure the system’s functioning with appropriate thermocouple connectors.
