Master the Art of Soldering Wires Together: A Beginner’s Guide

Soldering is an essential technique one should know when tackling the electrical/electronic component. Soldering provides the means of joining wires to devices and vice versa. This manual aims to walk the beginner through the soldering procedure, including understanding the soldering wire, how to use it, and the measures necessary to properly connect the cables. Learning to perform soldering will increase an individual’s capacity to make repairs and create as wide applications as household appliances or more advanced equipment’s printed circuit boards. This manual will also teach how to choose soldering consumables, prepare the wires, and make reliable solder joints. Whether you are a hobbyist or are looking forward to being a professional, your project will not be a reality without developing some skills in soldering.

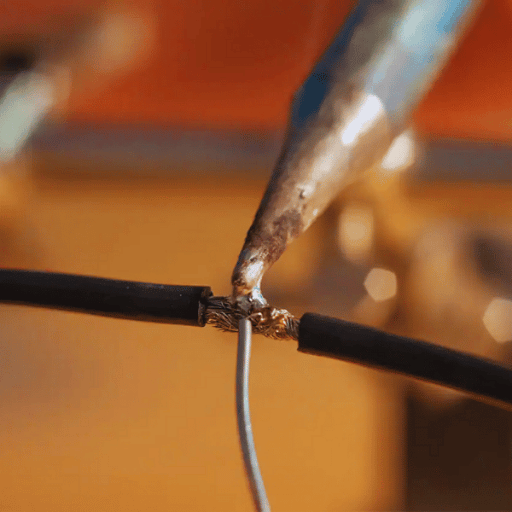

What tools do I need for soldering wires?

Effective soldering of wire requires the use of several equipment and supplies. First of all, there is a soldering device. It is used to melt the solder. Make sure there is an adjustable temperature for every task. Solder wire will connect the wires as it is made of either lead-tin alloy or lead-free, which has a rosin core to strengthen the soldering wire, ensuring a bonding surface. A stand or a holder for the soldering device when not in use, especially one with a cleaning sponge, is necessary to use a soldering iron and properly clean its tip effectively. It would be ideal to have wire strippers and wire cutters to facilitate the task of preparing the wires.

Moreover, a third-hand tool or regulator is handy for holding the workpiece. A fume evacuator or proper ventilation helps comply with regulations and minimizes exposure to harmful fumes. Finally, heat-shrinkable materials or electrical wires for insulating the connections after they are done are very important.

Essential soldering iron features for wire work

A few important considerations must be made while buying a soldering iron for wire work. First, choose an iron with a built-in and adjustable temperature control. Such handles ensure that one can work on various wire types and sizes. Fine-tipped and chisel-tipped soldering irons help to work in tight spots, and detailed work removing metal is needed to enhance its sharpness. Look out for a soldering iron that tends to be worked on comfortably and will provide overwhelming inputs inferable to control and comfort maintenance. Consider a soldering iron that quickens the heating process, maintains its temperature for long periods, and is the world’s indoor for efficient or speedy processes. You may also want to include a soldering stand with a cleaning sponge as an added advantage where maintenance safety is necessary while at work.

Choosing the right solder wire for your project

The significance of using appropriate solder wire in your work cannot be understated if the intention is to make practical, durable joints. Start by deciding on the solder type to use – lead and lead-free. Typical lead-containing solders such as 60/40 (60% Tin, 40% Lead) have lower melt temperatures or decent joint holding capacity, making them more competitive for numerous electrical tasks, although their use remains restricted. For healthy and green ideas, pick solder wires with no lead, which often contain tin, silver, and copper. The next thing you need to tackle is the thickness of the solder wire; high precision and delicate tasks will require a thinner solder wire, while thick solder wires are used for thicker and heavy-powered joints. Finally, check whether it has a rosin core. The front facilitates soldering by cleaning and priming the targeted surfaces for an ideal attachment.

Additional tools: flux, wire strippers, and heat shrink tubing

Meeting the increasing demands for quality work in soldering always requires certain tools like heat shrink tubing with solder sleeves, wire strippers, and selected compounds. The purpose of the flux in soldering is to act as a metal cleaning solvent to remove oxide layers from the metal surfaces and thus help the solder adhere to the metal more effectively. Choose those that best suit your solder and application in cases about soldering and usage of flux. It shaves off the insulation material from the wires mindfully without hurting the conductor, effectively prepping the wires for soldering. To wrap up, heat shrink tubing covers and insulates Ya bottle wires and protects/sustains the solder joint from any tension/force. It comes in several dimensions, and for use, it is slid over the joint, and with heat, it shrinks, creating a compressive cover over the joint. These additional items are essential for attaining the best soldering work or operation results.

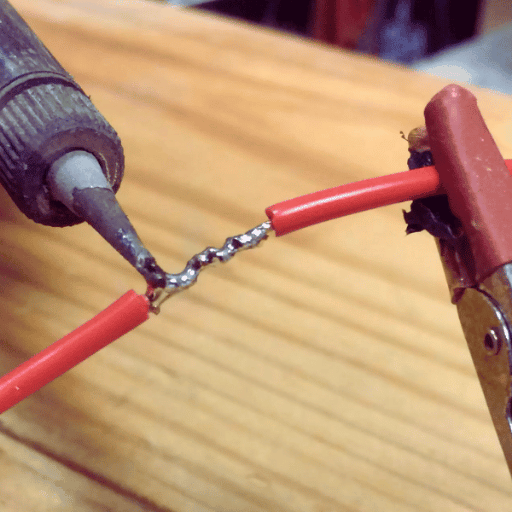

How do I prepare wires for soldering?

Proper wire stripping techniques

If you want to learn how to strip wires for soldering, start by using a wire stripper of the right size according to the wire gauge you are working with. Make sure to set the cutting blades of the tool correctly to cut the insulation and not to cut the wire itself. Insert the wire into the hollow of the wire stripper’s jaws so that the blade is kept at the required stripping length of approximately 0.25 to 0.5 inches as per the needs of your task. Apply pressure to the handles and cut through the PVC to the strands, but do not cut the strands, then pull the insulation back. Examine the freshly stripped wire to ensure no broken strands are present, as this weakness may create inferior soldering repair after soldering. Stripping correctly and at an appropriate level will contribute to more reliable soldering joints made after that, thus making it the first and perhaps the most essential step in the soldering procedure.

Tinning wire ends for better solder adhesion.

In preparation for soldering wires, when I tin wire ends, I usually begin by cleaning the wire ends to be tinned. Then, I am ready to use the soldering iron by setting it to a comfortable temperature (usually about 350 C (662 oF) is enough for most). Depending on the type of wire used and how hot the soldering tool is, there may be more solder with some solder-aiding iron (hard, soft solder) applied to the tip of the wire. For a few seconds, while keeping the wire firmly in something heat resistant, say with a hand tool or clamp, I warm the soldering iron tip against the wire. Then, I place a bit of solder on the tip of the wire and let the solder flow evenly along the strands. Proper solder immersion is done so that the whole outer wire is put under the solder. The dressing-up portion, referred to by those terms, improves the wetting of the solder by offering a clean and even surface, making it easier and more proper to place contacts across components where required.

Using flux to improve solder flow

The soldering operation would be incomplete without using flux as it offers excellent contact between the solder and the base metals and enhances the solder flow. It works by cleaning the joint’s surfaces by removing the oxides or other materials that could stop the joint from being made. In this regard, they enhance the soldering of the two components with the solder to obtain a stronger joint. Additionally, flux has hydraulic properties that virtually modify the molten solder’s surface tension, aiding in the even distribution of the solder on the soldered elements. The addition of flux is necessary for the soldering operation since it can function to alleviate the occurrence of solder problems like solder bridging. Generally, flux is offered in different types, for instance, liquid, paste, and even core solder wire, which helps to meet specific requirements during the soldering process. There is improvement in soldering performance and the reliability of the solder joint when the appropriate flux is used.

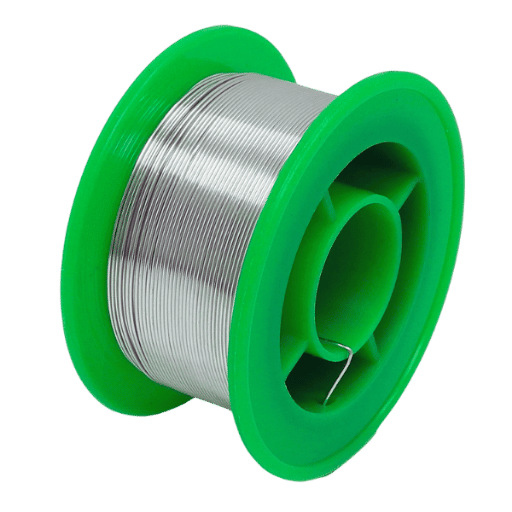

What’s the correct technique for soldering wires together?

Positioning and securing wires for soldering

In creating a solder joint, the placement and holding of wires are two essential parameters to be observed. To do this, strip off approximately a quarter-inch or a half-inch from each of the ends of the cables without damaging the core strands. If necessary, twist the wire strand cut-off ends to avoid shredding the strands inside the joint. Use a third-hand tool or helping hands to hold the wires while making the solder joint. If the wires move, water under the bridge of the solder joint may result in a poor splice. Adjust the wires so they run parallel to one another or let them cross each other slightly, depending on the connection you intend to achieve. Like pennant pre-tinning, wire ends that have been tinned could lend themselves towards good solder flow, which in turn enhances the electrical connection. However, With proper positioning and securing of the wires, cold soldering is no longer a risk; as a result, the joint created can be much better and stronger.

Applying the right amount of solder

The bond with wires must be reinforced enough to withstand harsh environments that require solder to the wires holding the mechanical part. To begin with, let the solder metal and the two wires in question be warmed with the soldering iron appropriately, and this can be quickly done by observing whether the solder makes contact. Instead, apply the solder directly toward the joint at a particular angle to ensure that the joint is thoroughly wet with the solder. You should be careful with the amount of solder applied to the joint. A highly polished curvilinear side will be exhibited without bond signs if you cover it with excess. Bypass makes a solder bridge with excess solder as it creates a short in the neighboring leads due to bridging with corrective solder. A good solder joint should be nice and smooth with no gaps or bubbles, as it satisfies mechanical and electrical requirements.

Creating a strong and reliable solder joint

Proper heat and solder control are paramount to preparing a rough yet skillfully applied solder joint. According to the information on Electronics Weekly, Adafruit, and SparkFun, these general steps are followed.

1. Cleanliness: Start by cleaning the joints to be soldered. Isopropyl alcohol will be used to scrub off any oxide or contaminants that may prevent solderability.
2. Temperature Control: First, the soldering iron is set at the required temperature depending on the type of solder used; this is about 350 – 4000C for lead-based solders and 370 to 420 for lead-free solders.
3. Tinning the iron: Before masking, apply a morsel of solder onto the tip of the soldering iron (referred to as thinning) to enhance joint heating for solder attachment.
4. Proper joint heating: Apply heat uniformly until the solder liquefies, then fill the joint with solder. Ensure the component lead and pad are heated to a specific temperature.
5. Soldering: The solder should be added to the joint where the wire is joined rather than the soldering iron. This will form a smooth fule as the solder covers the joint completely.
6. Cooling down: Allow the newly formed joint to cool slowly without interference, lest a cold joint or, worse, a weak joint form.

Following these steps logically, the obtained solder joints will possess structural solid and electrical characteristics necessary for the reliable operation of the circuits.

How can I ensure a good electrical connection when soldering wires?

Recognizing signs of a proper solder joint

Reliable electrical contacts in electronic circuits are made through good solder joints. Proper solder joint features include:

1. Appearance: A good solder joint should appear smooth and lustrous, meaning that the right amount of solder was applied and the joint has been heated enough. It should also exhibit a rounded convexity meniscus, indicating good wetting.
2. Shape: The joint should take a volcano or cone shape, with the solder fillet neatly swept in from the pad to the component lead, signifying good soldering and sufficiently strong adhesion.
3. No Gaps or Voids: There should not be any hole, void, space, or gap within the joint. This will provide the best electrical conduction and mechanical strength of the joint, which we can apply to some wire splicing. This sign shows that the amount of solder used and the technique applied were appropriate.
4. Mechanical Integrity: The union’s strength is such that an easy mechanical force can be applied without cracking or breaking the bond apart. Specifically, this stresses the internal bond within the joint.

Regarding this, it is easy to evaluate the quality and exercise cost-effective soldering technology to the level defined to be acceptable for efficient circuit operation, as per the guidance from Adafruit, SparkFun, and other electronics resources.

Common mistakes to avoid during wire soldering

Wires are not secured or twisted together as they should be manufactured in a pre-wired system or sockets added. It must be observed these corresponding errors:

1. Insufficient Heat: Most of the time, the joint area is under-heated, and the solder does not melt properly, leading to cold joints with poor electric conductivity. Make sure that the tip of your solder is well heated so that the solder will not stick to the joint’s surface but flow within it.
2. Excessive Solder: A mistake in this stage results in the use of too much solder in save-a-trooper, which is likely to form blobs connecting two or more vulnerabilities on the PCB, which means shorts. An optimum amount of solder must be used to ensure the connection gets done without having too much solder all over the joint.
3. Dirty Surfaces: Soldiers do not stick well to tarnished or dirty surfaces. To solder effectively, all the wire and component surfaces should be cleaned of dirt, such as oxidation, using a solvent like isopropyl alcohol.

Recognizing and avoiding these mistakes would help you enhance the quality of your soldering, thus ensuring the durability and effectiveness of electrical connections, as noted by reputable sites such as Adafruit, SparkFun, or even some direct guides that you can find on sites dedicated to electronics.

Testing the connection after soldering

Solder joint integrity should be tested to ensure it works and meets reliability requirements. First, look for a bright, clean, and smooth soldering joint; this will mean there is a solid physical connection at the joint. Then, a multimeter is used to check the continuity; this is done by switching to the continuity mode on the multimeter and checking whether current flows through the circuit. Further, check the ohms of the multimeter; excessive ohms would indicate an open, loose, or dead connection. As for other, more sophisticated measures, apply the power to the circuit when required and check whether it functions normally.

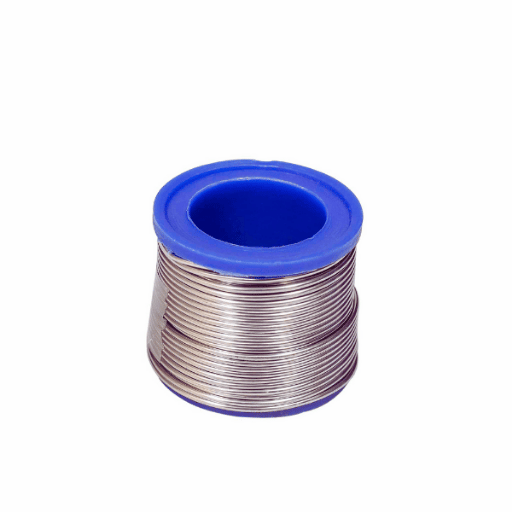

What safety precautions should I take when soldering wires?

Proper ventilation and protective equipment

These measures, along with proper ventilation and ways to prevent health hazards while soldering wires, are called safety measures. A gas mask or proper site ventilation can avoid fume inhalation that might be detrimental to one’s health during soldering. Non-experimental risks must be addressed; personal protective equipment (PPE) such as safety glasses is used to avoid the risk of hot solder splashes to the eyes, and heat-resistant gloves can also be used to protect one against soldering gun burns. Moreover, a lab coat or apron is also required so that one does not wear clothes with solder splashes.

Safe handling of hot soldering irons

When working with hot soldering irons, following the most basic safety principles to prevent injuries and damage to the equipment is essential. First, the soldering iron should be held by its handle and never touched by hands on the metal part of the device. When the soldering iron is not in use, placing it on a soldering station is advisable to avoid inadvertently putting the iron down and being burned or triggering a fire hazard. One thing that is understood is that a person should not leave the iron hot soldering and go unattended. Besides, the work table should not be cluttered with items as this may pose a risk of knockoff or contact with the hot iron. Such powerful sources as Adafruit and SparkFun state these considerations towards posterity for the user’s safety and the workspace’s effectiveness during soldering.

Dealing with lead-based vs. lead-free solder

When comparing the lead solder and the free solder, it is essential to consider the consequences of both types, including intelligence and health concerns. In most cases, leaded solder is a tin-lead alloy with good wettability and low melting consequence, which makes the soldering process less extreme. Leading to the increased use of non-lead solder alternatives because of the adverse effects of lead on health and the ecological balance. Common lead-free solder materials such as tin, copper, and silver are more problematic since these solder alloys require higher melting temperatures, causing challenges in equipment life and thermal shock of the equipment components. However, lead-free solders are more environmentally friendly and secure for people to purchase. Adopting any standard, strangely enough, also includes adherence to standards that consider the lead in solder. This is the focus of the available guidelines in countries, including those approved by Adafruit and Spark Fun, which require no inclusion of lead whenever it is practical within soldering, hence promoting eternal concepts such as the RoHS directive.

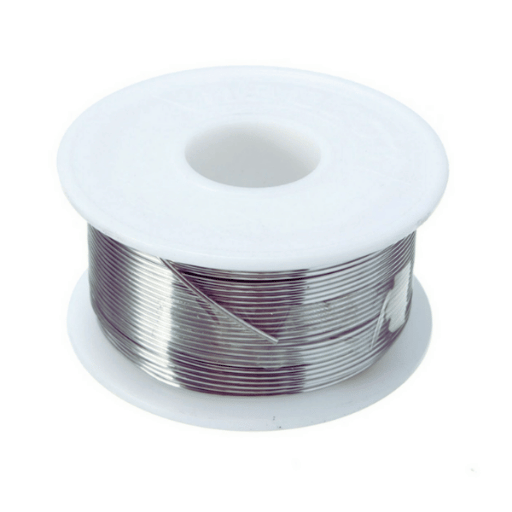

How do I finish and protect soldered wire connections?

Applying heat shrink tubing for insulation

In the case of insulation over joints, using heat shrink tubing requires that the first thing to be done is the right size of tubing such that it does not fit loosely about the wire or any other junction that you seek to insulate. It is pretty helpful to place the tubing over a soldered joint before trying to fit on the connector or completing the wire connection. Once it is positioned, a controlled dose of heat is applied to the tubing using either a heat gun or any such means, thus shrinking the tubing to the wire within the confines of the installed tubing. The covering is tightly compressed over the fitting, creating a seal that minimizes damage to the joint from various elements, water, and dirt. Best practices by industries such as Adafruit and SparkFun help educate people on the proper insulation of electrical junctions. Over long periods, techniques of working with heat shrink tubes have become more practiced.

Alternative methods for protecting solder joints

What do you do to secure your solder joints apart from just using heat shrink tubing:

1. Silicone Conformal Coating: In this concern, a thin coat of silicone coating is applied over the curable solder joint. It enhances protection from the environmental stresses of moisture, dust, and mold and reinforces insulation. Some resources from Adafruit and SparkFun, which promote the use of noncorrosive coatings for electronics, show such cases.
2. Liquid Electrical Tape: This is a very useful liquid rubber whose mode of application can be painting, inking, or spraying. This mobile seal covers up dust and moisture in joints without being visible or damaging surfaces, as noted in some DIY electronics instructions.
3. Epoxy Potting: This is a stronger solution in which the solder joint is encased in a hard plastic casing to shield it from physical injuries and allow it to be used in harsh extremes. This approach is often proposed for applications that demand high dependability, which has been corroborated by some technical instructions available on the internet.

Each method contributes to the life and reliability of solder joints and is used in addition to heat shrink tubing practices.

Proper cleanup and storage of soldering equipment

It is necessary to employ best practices to ensure the practical usage and longevity of tools during soldering and the proper cleanup and storage of materials and equipment. As stated by authorities in the industry:

1. Cleanup: First, it is very important to clean the soldering iron tip at the end of every wok. Excess solder and other residue must be wiped off using a brass sponge or a damp one. Never use abrasive materials around the tip since this might cause more damage than good. The tip should also be covered with a thin layer of solder (thinning) before putting it in a case to avoid getting oxidized.
2. Storage: Use a supportive base to keep the soldering hot tools and prevent burn accidents on the work surface. Use a solder wire and keep it away from damp air to prevent rust. They were burning with a soldering tool. Also, pay attention to unplugging the tools, cooling down periods, and putting the tools in their designated positions, reducing the chances of accidents.
3. Environment: A qualified soldering station should be orderly and neat, considering that soldering is a messy job. All dependencies and device components must be stored carefully in containers and organizers for safety and efficiency.

These practices, detailed on the best soldering websites, stress the need for routine checking and responsible care to enhance soldering tools’ durability and avoid hazards.

Reference Sources

Soldering

Wire

Soldering iron

Frequently Asked Questions (FAQs)

Q: What tools do I need for soldering wires?

A: To learn hot soldering techniques, one must have the essential required tools: a soldering iron with a clean tip, preferably rosin solder, wire strippers, a heat-resistant table, and a heat gun for heat shrink tubing is optional. Safety glasses and good ventilation are also necessary.

Q: How do I get wires ready to strengthen with a solder?

A: At the beginning of wire preparation, take the wire strippers and expose half-inch elongations of wires if you need to solder any wire ends together. If applying stranded wire, those loose wire ends have to be twisted firmly. A little rosin flux goes a long way in preparing the exposed metal by coating it to make the solder adhere better.

Q: How will I ensure the wires are correctly soldered while joining?

A: To properly solder wires together, the soldering wire hardens quickly after use as the wring rings are twisted around it, and the hardening wire’s ends are uniform. If you require it, the iron tip should not be used at the beginning if there is not too much solder to heat the joint area of connecting wires with the heated solder joint location. Be careful when solder may come in contact with hardening wires. After hardening, rings have horizontally distinct angles; use a wrench-like attachment for a doorknob.

Q: How do I know when I’ve used enough solder?

A: If the joint were soldered correctly, the interface would have a conical shape with a spherical cap on top and a smooth silvery collar around the wire core, with solder softening into the wire strands. They should cop out upwards into a small cone or a small volcano. If you can see the strands of the wire or if it is a single large ball of solder, then either too little solder has been used, or too much solder has been used, respectively.

Q: When assembling devices, what distinguishes soldering wires from other wires and soldering components from a circuit board?

A: When soldering wires, the common practice is to twist the bare ends of the wires one way and the other before soldering. When soldering a circuit board, the wire is first put inside a hole in the board or placed on a pad, then solder is applied to connect the wire and the circuit board. Soldering circuit boards is more accurate and uses less solder than soldering wires.

Q: What should I do to achieve a good solder joint?

A: To get a proper solder joint, ensure the wire and the soldering iron tip are clean. When wetting the solder with a heated wire, heat the wire first adequately. A suitable amount of solder is required to complete a joint—not too much or too little. When finished, allow the joint to cool without any movement. Consider placing heat-shrink tubing on the solder joint to make it more challenging.

Q: Why is rosin used in solder? Do I need to apply extra flux as well?

A: Rosin, an ingredient frequently included in the solder wire’s inner core, works as a chemical clean-up agent to enhance the flow of solder and adhesion of solder, which is of utmost importance during wire splicing. The rosin incorporated in the rosin-core solder is adequate for most soldering wire assignments. These rosin fluxes, however, can be advantageous on more difficult applications or applications on already oxidized surfaces that need to be attached.

Q: How do I troubleshoot common soldering problems?

A: Due to a lack of heat to the wire, if there is an unsoldered wire, the solder probably does not stick to the wire because the iron is not hot enough, or the wire is dirty and thus cannot melt the solder. If you are getting a dull, grainy joint, it might be a ‘cold’ solder joint, and just try re-heating the solder joint. Most of the time, if the solder appears in excess and tends to collect into pools or blobs, the likely explanation is that either the correct amount of solder is not being melted or enough heat has been applied to the wire to initiate the soldering process. The soldering iron tips must always be clean and well-tinned to avoid oxidation.

Q: Is using lead solder safe, and if not, what options are available?

A: I feel that lead solder makes the work much easier but harms health and the environment. Therefore, do this in a well-ventilated area, and remember to wash your hands after usage. There are also lead-free solders, which are on the rise. They usually require more heat to be melted and may leave joints that look dull, but at least they are safe to use.

Q: What is the best way to improve my soldering skills?

A: Each soldering task will require extensive practice if you wish to master the technique. Always begin with the simplest tasks and work on the more difficult ones. Balance it out with video tutorials of various soldering methods and guides. Going for a class or a guided workshop is also an option if it is within your reach. Focus on the big picture, and that is, getting the skills to solder will take time, so if, on your first attempts, the results are not what you expected, there is no need to feel depressed.
