For residential and industrial projects, setting up underground service cables is an essential part of creating a safe, efficient, and visually appealing electrical system. Whether your interest is in landscape lighting for improved outdoor aesthetics or preparing for a 200 amp electrical service upgrade, knowledge about the technicalities of proper underground cable installation is crucial. This article provides comprehensive tips on the key factors to consider while undertaking such projects, the essential tools required, and the step-by-step procedures followed to achieve this. In the process, one will learn how to ensure their power supply system’s durability and safety; thus, house owners and professionals should read this.

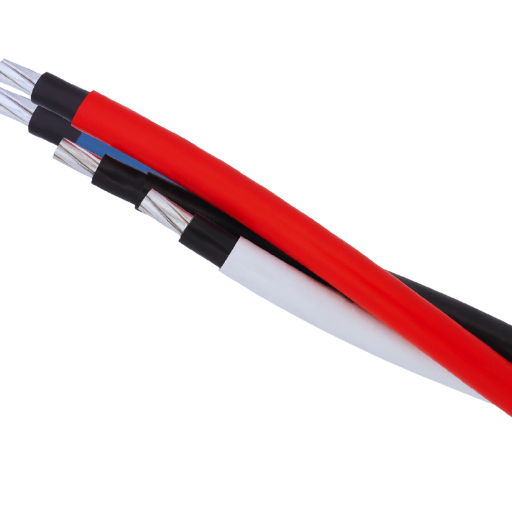

What is underground service wire, and why is it important?
Other names for the underground service wire, which is always referred to as an underground feeder (UF) cable, are those that include them being wiring systems designed specifically to be buried directly in the ground or within conduits and ensure power supply to such facilities as residential houses and garages, outdoor buildings. It comprises insulating materials that provide a strong barrier against water, pressure from soil, and other environmental factors. The importance of this kind of wiring cannot be overstated since it enhances safety by reducing electrical hazards, improves aesthetic appeal by getting rid of unsightly overhead wires, and ensures durability under different weather conditions. The use of underground service wires provides reliable solutions for safety-conscious modern electrical systems that value functionality.
Understanding direct burial cables and their applications
Direct buried cables are designed to be laid underground without the need for additional conduits, making them suitable for different uses. The cables go through a manufacturing process where they are covered with insulating materials that are strong in order to protect against dampness, rodents and other environmental factors; this gives long-term reliability and security. Below is an elaboration of some key characteristics and applications.
Key Characteristics
Strong Insulation
These direct burial cables have hard plastic insulation made up of things like polyethylene, which shields the wires from water, rusting, wear caused by friction, etc.
Water-proof
This means that wires can work even if they are exposed to moisture, as they do not allow any liquid to enter the circuit over time.
Sun Shielding
Some direct bury cables can survive exposure to the sun because they may need a little bit of above-ground connection when entering terminals.
High voltage capacity
- These cables can handle low and high-voltage activities and are thus suitable for all kinds of operations.
- Resistance to wear and tear
- They have tough outer covering that makes them resistant to soil abrasion as well as underground movement hence less prone to mechanical impairment.
Applications
- Residential Power Distribution
- Used widely across many areas where power lines run from the main electrical source to residential areas via the ground.
- Outdoor Lighting Systems
- These systems are best suited for gardens, pathways, or streets where it is impossible to use overhead wires.
Utility Networks
Utilities networks help distribute electricity or other services such as telecoms underground.
Industrial Installations
They are widely used in industries where electricity is needed to supply heavy machinery, outdoor workstations, and remote installations.
Irrigation and Agricultural Equipment
In this case, they power pumps, sensors, and other farm equipment when water and soil must come into contact with them.
Renewable Energy Systems
Thus, it is critical in solar and wind energy systems, as it links auxiliary components to the underground main ones for durability.
The ingenious design of direct burial cables ensures that industries and residential projects can all take advantage of safe, efficient, and long-term power transmission solutions.
The role of underground service entrance cables in electrical systems
Modern electrical systems have an important role in underground service entrance cables, whose main purpose is to safely transmit electricity from the supplier to residential, commercial, and industrial properties. Typically, these cables are insulated and armored by durable materials, which can be either aluminum or copper for purposes of durability and withstanding environmental factors. Installed underground, they provide a more appealing solution as they eradicate overhead wires, making them less susceptible to damage that may be due to storms, falling things, or animals.
Underground service entrance cables have power outage mitigation as one of their major benefits. Reports show fewer interruptions in underground electrical systems than in overhead systems because of low exposure to weather risks. Moreover, these cables also help improve safety since they are less likely to cause accidental contact and fire hazards.
Also, in the present market, cable technology is advancing. For example, the thermal performance and electrical properties of these cables have been significantly increased by using cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR) as insulation materials. Depending on the application, underground service entrance cables could have a variable range of voltage levels ranging from low voltage to high voltage, which will cater to any project as required, including those that use triplex configurations.
Regions implementing underground power distribution systems have seen consistent reliability improvements, according to statistics. Studies have found that when compared to other forms of electricity distribution, such as overhead systems, underground ones decrease the duration of blackouts by over 50% during severe weather events. The greater upfront costs related to their installation than overhead systems are offset by decreased maintenance and lower long-term costs.
Underground service entrance cables provide a robust solution for power delivery requirements, thereby contributing to system reliability improvement and public safety assurance as well as coping with increasing energy demands in both rural and urban areas.
Types of underground feeder (UF) cables and their uses
Underground feeder (UF) cables are mainly meant for outdoor or buried installations. They are insulated and protected to survive adverse environmental conditions like moisture, soil pressure, and temperature changes. Here is a breakdown of different UF cable types that are commonly used:
1. UF-B Cables
UF-B cables are some of the most frequently used underground feeder cables that find application in various residential and light commercial applications. These consist of several conductors, with each one having a solid thermoplastic insulation, which is then covered by an overall PVC jacket to increase their longevity. These cables can be directly buried without using conduit systems. Common applications include lighting up outdoor lights, powering pumps, and remote structures like garages or sheds. Their gauge sizes usually range from 12 AWG to 6 AWG, thereby accommodating different load needs.
2. Direct Burial Armored Cables
Direct burial armored cables are purposely designed to cater to additional mechanical protection required in some environments. These cables are encased within an aluminum or steel armor layer, making them useful in industrial applications and areas with rocky or shifting soils. The armor provides physical security, thereby reducing the chances of faults occurring. They are often used in heavy-load applications like powering large machines, electric gates, or underground distribution systems.
3. Tray Cable (TC) Rated for Burial
Another versatile choice for power transmission beneath the ground is a tray cable that can be rated for direct burial as well. These cables can be deployed at either low-voltage control wiring or high-voltage power distribution since they can withstand a wide range of voltage levels. Moreover, they are wrapped up with insulating materials that guarantee resistance against sun and water infiltration. Tray cables are extremely beneficial during commercial landscaping projects as well as long-range submetering installations.
4. URD (Underground Residential Distribution) Cables
URD cables supply power to residential locations, particularly in subdivisions and neighborhoods where houses require power delivery from utility lines. Generally, they comprise lightweight and cost-effective aluminum conductors. These are usually multi-conductor types that can transfer both primary and secondary voltage. These cables have good resistance to heat and chemicals, hence they can serve for many years even under very trying conditions.
Key Specifications and Data
By the standards, properly selected UF cables may carry voltages as high as 600V depending on their type and gauge size chosen. The National Electrical Code (NEC) specifies minimum burial requirements based on installation method and cable types, e.g., most UF-B cables necessitate a minimum of 24 inches for direct burial applications. Moreover, as a result of improved UV-resistant insulation materials, the life expectancy of such wires has been enhanced beyond those covered by ground sections until entering the ground.
Therefore, selecting which kind of underground feeder cable is necessary to attain performance levels like durability as well as adhere to safety guidelines. It is essential to follow this procedure in order to get dependable electric supply solutions that last long.

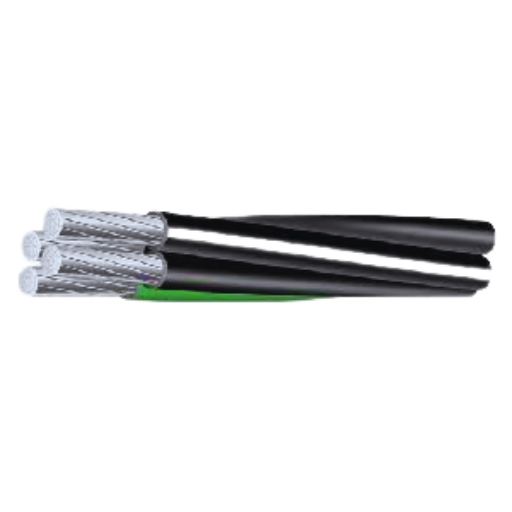

How do you choose the right underground service wire for your project?
Factors to consider when selecting underground cables
Voltage Rating
Safety and performance rely on the voltage rating of a cable. Generally, underground cables are categorized into low voltage (up to 1 kV), medium voltage (1 kV to 35 kV), and high voltage (above 35 kV). Low-voltage cables are adequate for residential or light commercial uses, while industrial or utility infrastructure may require medium or high-voltage cables.
Cable Material
The choice of conductor material, often copper or aluminum, has important effects on efficiency, weight, and cost in the case of a cable. Copper conductors increase conductivity, but they are more expensive and last longer than aluminum ones, which are lightweight and economical, although they require larger cross-sectional areas for equivalent performance. Modern technology has improved aluminum alloys to improve durability and electrical performance.
Insulation Type
The insulation material determines how much the cable can withstand various environmental conditions. Cross-linked polyethylene (XLPE) insulation is commonly used because it exhibits good thermal stability, moisture resistance, and its ability to take higher operating temperatures. Ethylene Propylene Rubber (EPR) is another good choice where flexibility and durability matter most.
Environmental Factors
When selecting the type of direct burial cables, it is important to consider soil conditions, moisture levels, and potential chemical exposure. In cases with high moisture or chemicals, it is better to use cables with a moisture-blocking sheath or additional protective layers. Sections exposed to sun before burying should have insulation that is UV resistant.
Ampacity and Load Requirements
The ampacity- the maximum current flow without exceeding temperature restrictions, must correspond to your project’s load requirements. Cable selection should consider the number of conductors, burial depth, and surrounding soil thermal resistivity for safe operation under specified electrical loads. For example, cables installed in high-resistivity soils may require derating to prevent overheating.
Conformance with Standards
Observing standards such as the National Electrical Code (NEC) and the International Electrotechnical Commission (IEC) ensures safety, reliability, and regulatory compliance. These standards state how cable construction should be done, recommend installation practices, and set operational limits.
Cost and Lifecycle Considerations
First, when considering costs associated with a life cycle, one should consider not only the initial expenses but also installation, maintenance, and possible replacement. Premium materials and enhanced insulation can cut operational expenses by increasing dependability and lengthening service life.
Installers and project planners could make informed decisions that optimize technical performance and investment value by systematically analyzing these factors, thereby ensuring efficient and secure power delivery.
Understanding AWG sizes and amp ratings for underground wiring
The diameter and capacity of electrical wires are determined by the American Wire Gauge (AWG) sizes. For underground wiring, AWG size selection depends on the current load in amperes and the length of the wire. Higher AWG numbers represent thinner wires, while lower ones are thicker wires with higher capacity.
For instance:
- A 12 gauge wire usually allows a maximum of 20 amps.
- A 10 gauge wire may handle as much as 30 amps.
- An eight gauge wire or more will be needed for larger loads such as 50 amps.
Longer runs must account for voltage drops. In such cases, thicker wires might be necessary to improve efficiency and prevent overheating. Therefore, always obey local codes concerning electric power supply and have an installation expert advise you to ensure safety and performance.
Comparing copper conductors vs. aluminum for underground service
When comparing copper and aluminum wires for underground service, their key properties need to be evaluated primarily in the context of triplex configurations.
- The conductance is a major factor to consider while choosing wire and cable for electrical installations.: Copper has superior conductivity over aluminum, thus requiring a smaller size of the conductor to achieve similar current carrying capacity. This can reduce the physical space required for installation.
- Cost: Aluminum costs significantly less than copper, making it popularly used when large-scale underground installations are done.
- Durability: Copper is more resistant to physical damage, corrosion, and oxidation processes, which can improve its lifespan while being used in underground applications.
- Weight: Aluminum has less mass than copper, making handling and installation easier.
In summary, budgetary constraints, application specifics, and conformity with local codes determine whether to choose between copper or aluminum.

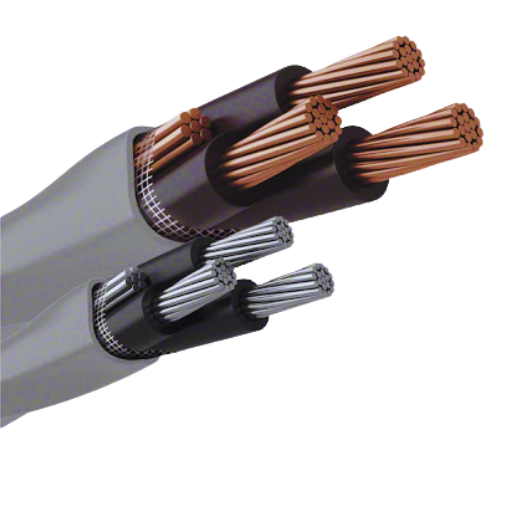

What are the proper installation techniques for underground service wire?
Direct burial methods and best practices
There are certain rules that I follow when I install the service wire underground using direct burial methods. The first rule is to select a wire rated for direct burial that can handle the moisture and soil conditions. This also entails digging the trench to the proper depth, usually twenty-four inches or more depending on local codes, ensuring that no sharp objects in its bottom might damage the wires. In addition, burying it inside a conduit or covering it with sand before backfilling offers additional protection. Finally, to ensure compliance with future excavation guidelines, I mark the location of the trench with warning tape above the wire a couple of inches more. Lastly, all applicable local codes and rules must be observed, and necessary licenses must be obtained to ensure safe and compliant installations of Southwire products.
Using conduit for additional protection of underground cables
Employing a conduit system for underground cables offers an extra layer of safeguarding against physical, moisture, and weathering damage. Ultimately, the risk of wearing out through soil shifting and accidental impacts becomes minimal as the cables remain safe and intact with time. Conduit also makes future repairs or replacements much easier since extensive excavation will not be needed to reach the cables. Moreover, this helps meet safety and code requirements, thus contributing to safe installation, which is also reliable.
Depth requirements and other National Electrical Code (NEC) regulations
The National Electric Code (NEC) states the minimum depths for the burial of various electrical installations. According to NEC, a cavity of at least 24 inches below the surface is typically the norm for direct burial cables. However, when installed in a concrete slab, there shall be no reduction in the depth of these conduits. On average, PVC conduit installation should have a depth of not less than eighteen inches. These rules may have exceptions depending on the area, types of soil, and any local modifications; hence, there may be a need to refer to NEC and local building codes so as to establish precise requirements.

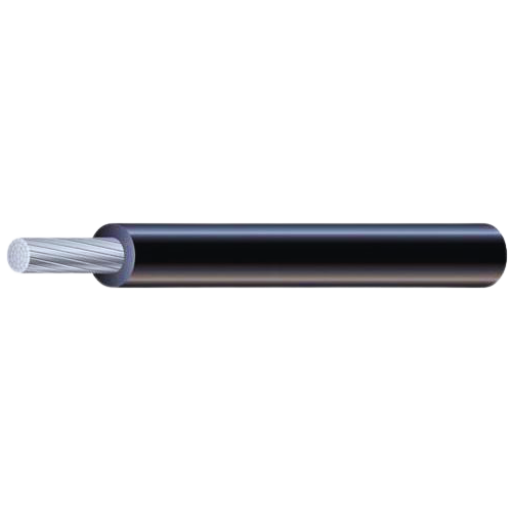

How do you maintain and troubleshoot underground service wire installations?
Common issues with underground wiring and how to address them
Underground wiring installations are meant to be durable, but over the course of time, they can have some problems. Some of these issues include physical damage, insulation wear and tear, and moisture penetration. Here is a detailed analysis of these challenges with possible answers:
Physical Damage
This mainly occurs when there are external forces such as construction, beautification, or natural causes like soil movement. Broken conduits or cables contribute to faults that cause breaks in the continuity of service. In this regard, a thorough examination is required to identify where there are breaks/cuts on the conduit. The normal repair process includes replacing the damaged section of the conduit and then ensuring complete sealing so as to guard against further stress.
Insulation Degradation
With time, wire and cable insulation may degrade due to aging, exposure to substances found in soil, such as chemicals, or thermal expansion and contraction. Insulation failure can lead to short circuits or reduced electrical performance. Routine inspections using insulation resistance meters assist in early detection. Whenever deterioration is noticed, substituting aged cables with contemporary materials such as cross-linked polyethylene (XLPE) insulated cables helps extend life expectancy and improve performance, mainly for direct burial application types.
Moisture infiltration
Corrosion, electrical shorts, or reduced efficiency are some of the consequences that can result from moisture entering conduit systems. This is particularly worrying in regions with high water tables or frequent rainfall. To prevent moisture entry in conduits, junctions, and openings must be properly sealed. Alternately, waterproof connectors can be used for such applications, and gel sealant can be applied to vulnerable areas.
Damage by Rodents
Depending on the location, rodents or other animals may chew underground cables, causing immense destruction. To counter this phenomenon, armored cables or rodent-resistant conduits can be used. Replacement should be done quickly, and protective barriers must be erected alongside them.
Voltage Drop over Distance
Voltage drop takes place when electrical current moves through long distances via underground cables, resulting in reduced effectiveness. By using conductors of proper gauge, this problem can be mitigated or alternatively installing step-up transformers to maintain consistent voltage levels at the load end. The NEC provides formulas and guidelines to compute acceptable voltage drop for given installations;
Preventing Actions
Routine maintenance is necessary to mitigate these risks. Techniques such as ground-penetrating radar (GPR) to map the underground wire layout and thermal imaging to detect hot spots can be used to identify potential problems early. The long-term reliability of a system, according to the manufacturer’s specifications, is dependent on adherence to NEC standards and consultation with local building codes.
With all these safety measures, underground service wiring can be made operational and efficient, allowing it to work effectively for years.
Importance of tracer wire in locating buried electrical cables
Tracer wire plays a vital role in successfully identifying laid-down electrical cables for safe and efficient purposes during excavation or maintenance. This is a specialized wire that gets installed alongside underground utilities so as to help determine their exact location without any invasive digging. Conductivity is usually made from copper or steel, which are coated with an insulating material to resist corrosion, thus ensuring such wires are very important in preventing potential damage to underground systems.
Tracer wire use is essential for construction projects or other underground service activities. Utility hits while digging are the cause of more than 25% of annual electricity outages and repair delays (Lingle & Drake, 2008). These risks can be mitigated by tracing the path of the wire using electromagnetic surveying equipment, thus tracking where the utility line lies. Among other regulations, ASTM B170 and NEC 250 also highlight traceability accuracy as one of the uses of quality tracer wire.
For the effectiveness of the tracer wire to be maximized, it must be installed accurately; this is done by either putting it parallel to or above the ground utilities at all times and ensuring that it remains in continuous contact for signal continuity. Furthermore, several access points, such as test stations, are usually included to facilitate easy detection in the future. By incorporating tracer wire systems into underground electrical installations, utility providers and contractors can cut repair expenses drastically, heighten worker safety, and upgrade subsurface infrastructure reliability.

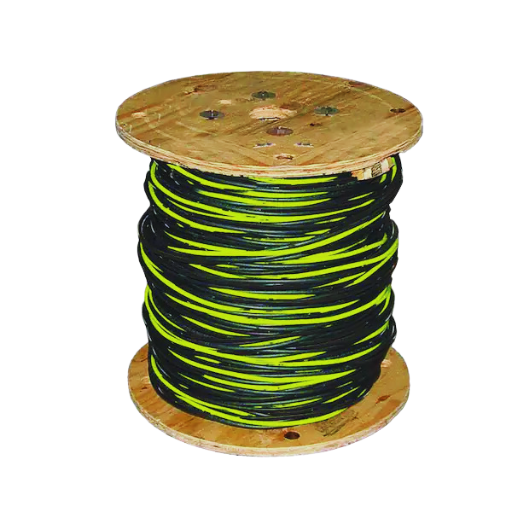

What are the safety considerations when working with underground service wires?
Electrical hazards and precautions when handling underground cables
The risks of working with underground cables are unique electrical hazards that must be carefully mitigated to protect workers’ lives and ensure infrastructure integrity. There is also a possibility that these cables may carry high currents, thereby causing electric shocks, arc flash explosions, or heat burns. Meeting industry standards, the voltages on underground distribution systems often go as low as less than 1,000 volts to higher levels, like up to 35,000 volts.
One major risk involves accidentally touching live wires when digging or repairing a line. For this reason, it is important to thoroughly conduct utility location and marking procedures before any excavation commences. Using ground-penetrating radar (GPR) or electromagnetic locators can avoid inadvertent contact with lines. Employees should also verify de-energization through a voltage detector before going near any cable.
Moreover, during maintenance, there is another issue, which is the deterioration of cable insulation over time. Faulty or damaged insulation can lead to increased leakage currents, resulting in unintentional electrical paths and possible contact with live equipment parts. To help mitigate such dangers, regular insulation tests and condition monitoring should be done alongside using protective clothing that complies with the voltage rating for specific applications.
Precautionary measures also include following protocols like safe working distance from energized conductors as per OSHA and IEC standards. It is essential to wear insulated gloves, safety shoes, and fireproof clothing in order to reduce the effects of possible contact with electrical hazards. Lastly, emergency plans such as first aids for electric injuries and quick power shutdown procedures should be implemented.
Using these precautions and staying abreast of changing industry regulations, staff can effectively manage risks associated with underground electrical work operations, thereby promoting safety at work and system reliability.
Importance of proper grounding and bonding in underground installations
In order to ensure the safety of operations, preserve the integrity of equipment, and safeguard personnel against electric hazards, it is important to have grounding and bonding appropriately done in the underground installations. Grounding constitutes a direct physical connection between electrical systems and the earth, enabling them to discharge any excess or malfunctioned currents safely. In contrast, bonding connects conductive materials to maintain a common electric potential, thus curbing the chances of arcing or accidental electrocution.
Grounding and bonding failures significantly raise the risk of electrical faults, such as ground faults leading to equipment overheating, fires, or even power shortages. It is worth noting that the National Electric Code (NEC) asserts that improper underground installations for bonding and grounding give rise to dangerous voltage differential levels, jeopardizing equipment and human security. The data released by associations of electricity experts reveals that up to 80 percent of power outages are caused by grounding issues, which demonstrates the importance of being strong in their implementation.
In addition, adequate grounding prevents transients from being impacted by lightning strikes or switching surges. Statistical analysis shows that grounded installations have fewer equipment failures and lower maintenance costs, which means better system reliability in the long run. Equally important is bonding, which prevents potential differences between metallic structures, especially in high-moisture or corrosive environments typical for underground settings.
Proper grounding and bonding are achieved by conforming to local regulations and using advanced materials such as corrosion-resistant conductors and exothermic welds for extended durability. Also, by following the recommended testing procedures like ground resistance measurement and continuity test, conformity and effectiveness can be maintained, too. Hence, grounding and bonding are crucial in ensuring underground electrical systems’ safe and reliable operation.

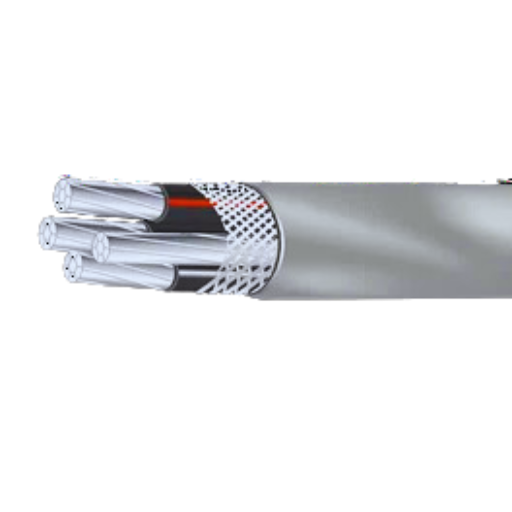

How does underground service wire differ for residential vs. commercial applications?
Comparing 100 amp vs. 200 amp underground service requirements
Underground service installations with 100 amp and 200 amp ratings, respectively, are suitable for the energy requirements of residential and commercial settings. Selecting one between these two options depends on the needed load, future expandability, and cost considerations.
100 Amp Underground Service
Usually, a 100-amp service will be sufficient for smaller residential properties with moderate energy needs. It supports basic household appliances, lighting, and standard HVAC systems. #4 AWG copper or #2 AWG aluminum conductors are used for the wire size of 100 amp service. Trenching requirements for 100 amp service usually involve a conduit buried at a depth of 18–24 inches, following NEC code standards to ensure safety. Although it may suffice in small houses, this capacity may not allow room for growth or additional power-demanding devices.
200 Amp Underground Service
On the contrary, a 200-amp service is intended for larger residential buildings, houses with many high-demand appliances, or commercial applications that have heavy loads. This capacity supports advanced HVAC systems, EV chargers, and other industrial-type electrical equipment, such as refrigerators, that consume much power. To effectively handle the larger load in terms of wire sizes, the conductor size increases to #2/0 AWG copper or #4/0 AWG aluminum wires and is connected safely. Trenching for 200 amp service commonly requires similar depths but may integrate larger conduits to accommodate the thicker wire.
Cost and Installation Considerations
Usually, the cost of installing a 200 amp service is greater due to the need for larger conductors and possibly more robust components. However, it offers long-term flexibility and scalability, thus reducing the need for future upgrades. On the other hand, a 100-amp service is less expensive initially but has limited ability to take on extra power demands.
Summary of Differences
|
Features |
100 Amp Service |
200 Amp Service can be efficiently supplied using branch circuit cable with the ground to ensure safety. |
|---|---|---|
|
Typical Use |
Small residences, moderate loads |
Larger homes, commercial settings |
|
Conductor Size |
#4 AWG copper / #2 AWG aluminum |
#2/0 AWG copper / #4/0 AWG aluminum |
|
Energy Capacity |
Supports basic appliances |
Handles high-demand systems |
|
Scalability |
Limited |
High |
|
Installation Cost |
Lower upfront |
Higher upfront, long-term flexibility |
When choosing between 100-amp or 200-amp underground service, two crucial factors are understanding the property’s energy requirements and considering potential future needs. Proper planning in compliance with local regulations is essential to ensure the system is efficient and reliable.
Specialized underground wiring for landscape lighting projects
Careful selection of materials and adherence to safety standards are necessary for underground wiring and landscape lighting. Their efficiency and security have made low-voltage wiring systems to be commonly used. UF-B (Underground Feeder) cables are best suited for direct burial. Such wires should be buried at a minimum depth of 6 inches for low-voltage circuits or 18 inches for high-voltage ones to protect them from damage. To ensure safety and performance, weatherproof connectors must always be used, and local electrical codes must be followed. For reliable and long-lasting landscape lighting installations, proper wire gauge and load distribution planning are very important.

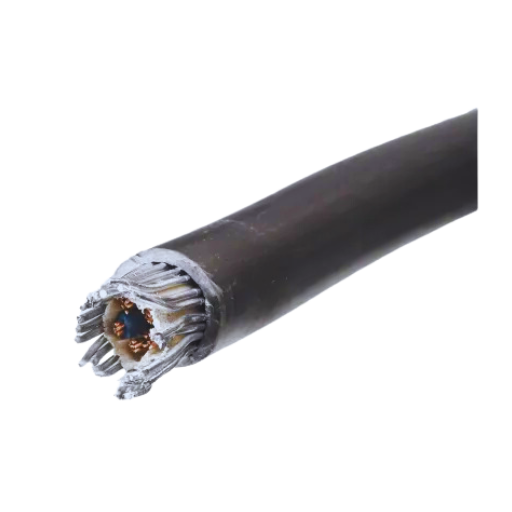

What are the latest innovations and trends in underground service wire technology?
Advancements in cable insulation and sheathing materials
Cable insulation and sheathing materials have improved durability, safety, and environmental sustainability. Modern substances like cross-linked polyethylene (XLPE) are better at resisting heat and insulating electricity than their old-fashioned counterparts. Moreover, there is an ongoing development of non-PVC alternatives to sheathing for maintaining high performance but reducing the ecological footprint in outside situations. These advances aim to augment the length of underground service wires, enhance moisture and abrasion resistance, and conform to more stringent safety and environmental requirements.
Innovative technologies for monitoring underground electrical systems
The concentration of innovative technologies for monitoring underground electrical systems is on enhancing reliability and efficiency. These days, sophisticated sensors are incorporated into the underground service wire to instantly identify voltage fluctuations, temperature variations, and possible faults. These links can easily connect to centralized monitoring platforms through IoT (Internet of Things) networks, facilitating proactive maintenance and quick response to problems. Moreover, machine learning algorithms used in monitoring solutions help predict failures based on past data, thus improving system performance and minimizing downtime. These developments enhance the system’s safety, cost-effectiveness, and long-term viability.

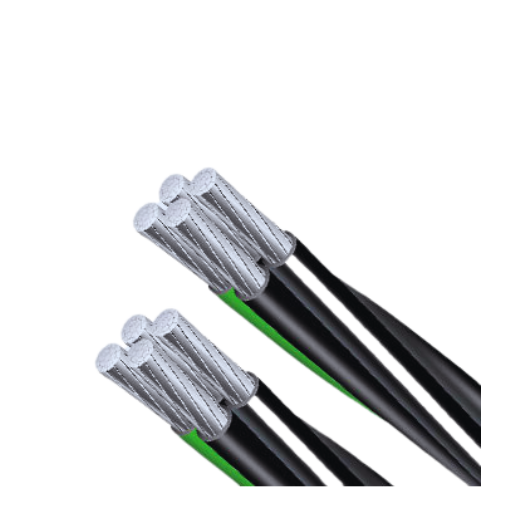

Frequently Asked Questions (FAQs)
Q: What is direct interment wire, and when is it used for landscape lights?
A: A direct interment wire is an electrical wire that can be buried underground without additional conduit protection. It is often used in landscape lighting installations as it is moisture-resistant and lasts longer. This has insulated and jacketed wires intended for use in the ground; hence, it is suitable for underground wiring in outdoor lighting systems.
Q: What is URD cable, and how is it used in 200 Amp electrical wiring?
A: URD cable, which stands for Underground Residential Distribution cable, is a service cable employed as utility underground connections. These cables are commonly utilized to connect the main electrical service from the utility pole to the meter box or main panel in 200 Amp electrical wiring. They can be directly buried and can carry high amperage loads, making them ideal for residential and light commercial applications.
Q: What are the benefits of using UF-B wire for underground feeder and branch circuit cables?
A: Underground installations can have some advantages from using UF-B (Underground Feeder-Branch) wire. Specifically designed for direct burial, it is resistant to moisture, corrosion, and abrasion. It’s applicable for both feeders and branch circuits, making it flexible. Besides, a ground wire is incorporated into this type of cable, thus simplifying its installation. With a 600V rating, it can be used in wet areas, hence suitable for outdoor/underground projects, particularly when combined with branch circuit cable with ground.
Q: How deep should the service cables be buried for landscape lighting?
A: The required depth to burying underground service cables used in landscape lighting varies depending on local electrical codes. However, a general rule of thumb is to bury low-voltage landscape lighting cables at least six inches deep. The standard depth should generally be less than eighteen inches for higher voltage cables (120V or more). Always check your local electrical code and hire a licensed electrician to guarantee correct installation and safety precautions.
Q: What differentiates copper wire from aluminum cable in underground electrical installations?
A: Both copper wire and aluminum cable are applicable for use in underground installations of an electrical nature but this is from differences in their characteristics. Copper wire is usually more conductive, corrosion-resistant, and rugged, which makes it a customer’s choice over many applications. However, the only difference is that aluminum cables weigh less and cost less than copper wires but will require larger gauge sizes to carry the same current as the latter. While copper may be used for underground installation due to its better moisture resistance and longer life, aluminum might be suitable in certain cases if properly installed and protected.
Q: How do you properly insulate underground electrical connections for landscape lighting?
A: To properly insulate underground electrical connections for landscape lighting, employ waterproof wire connectors or gel-filled wire nuts that are specifically made for wet locations. To enhance the safety of the connection, wrap it with electric tape. You can also use heat-shrink tubing as an additional insulation layer or waterproof junction boxes. Every connection should be well-insulated to prevent moisture penetration that can lead to short circuits or corrosion.
Q: What types of PVC conduit are suitable for protecting underground service cables?
A: Schedule 40 and Schedule 80 PVC conduits are typically used to safeguard underground service cables. Schedule 40 PVC is commonly used in residential applications and direct burial. Thicker walls make schedule 80 PVC more resistant to impact; hence, it is often employed in areas with heavy traffic or where additional protection is necessary. Both types are corrosion-resistant and provide good coverage for underground communication wires. Always check local codes to ensure the satisfaction of specific conduit requirements within your location.
