The specific ratings for installing a new electric shower suggest the required performance and efficiency; for instance, a 6mm cable kW rating must be acquired. The absence of an appropriate rating could lead to overheating and compromise the setup’s longevity. This guide will help formulate the supporting information necessary to acquire a shower’s kW rating to be used with 6mm cables. Understanding parameters like compliance with regulations, requirements for power installation, and cable capacity will facilitate decision-making that bears risk-mitigating attributes. Be it a new setup or an altercation with an existing one, the article presents vital information to execute the task in the most efficient way.

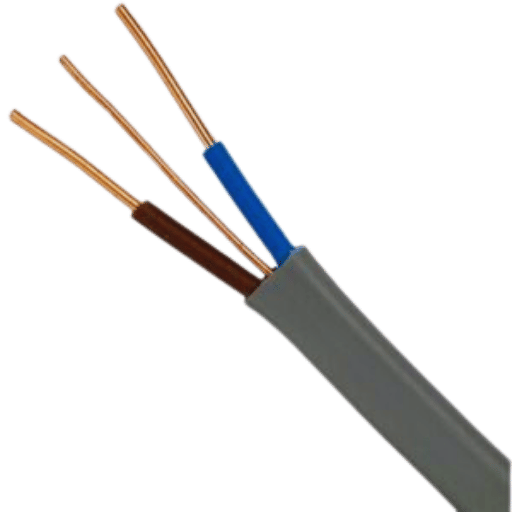

What is the Current Carrying Capacity of a 6mm Cable?
Factors such as the installation method, the temperature within the surrounding environment, and whether or not the cable in question is multicore or single-core greatly limit the current carrying capacity of a 6mm cable. In the case that the installation occurs in a domestic building, then the above-mentioned current carrying capacity can be achieved:
- When Clipped directly to a surface: The said cable can reach up to a maximum of about 47 amps.
- When Enclosed in a conduit or Trunking: Due to the limited opportunity for heat to dissipate the value drops further from the previous figure to an approximate 37 amps.
- When insulated or enveloped in thermal insulation: This time, while talking about insulation, the degree of insulation can make a difference as the value can be reduced to 32 amps or even lower.
Always check local standards such as the National Electrical Code (NEC) for any and all compliancy and safety strategies relevant to the installation mentioned above.
How many amps can a 6mm cable handle?
In normal circumstances, a 6mm² cable is rated at approximately 47 amps for open-air installations. However, the ampacity may vary due to installation configurations like insulation encasements, which can lead to reduced ampacity. Always check the National Electrical Code (NEC) or local requirements to establish accurate ampacity values for your installation.
Is a 6mm twin and earth cable suitable for my electric shower?
A 6mm twin and earth cable can be overkill for electric showers when the power rating and installation conditions do not require its use. Typically, the standard power rating of an electric shower falls in the range of 7.5-10.5kW. However, a basic 6m² cable under optimal conditions is rated for a current demand of 46-47 Amps for a voltage of 230V placing it at an ideal level to service electric showers. Moreover, the installed environment of a cable has a direct impact on its ampacity as well; for instance, if the cable is running through a conduit or if insulation has been added, the ampacity naturally is reduced.
For example:
- In the case of a 7.5 kW shower, 32.6 Amps are pulled, straining the upper limits of amperage, which, in turn, is ideal for a 6mm cable to run as a derating factor is added.
- However, a 10.5kW shower requires an upper limit of 230-240V, which is not a safe voltage for a 6m cable as its amperage extends close to 46, which, from optimal conditions, is too much.
In addition, the breaker or fuse size should be compatible with the windings of the cable and the load of the energy device in place. More so, if there is a need to have a cable for long runs, possibly through insulated sections, then derating and voltage drop must be considered, even to the extent of installing 10 mm twin and earth cable. For safety standards, it is essential to follow the guidelines identified by the National Electrical Code (NEC) or local regulations, and a qualified electrician should be consulted to determine the appropriate cable size for the installation.
What factors affect the current carrying capacity of a 6mm twin and earth cable?
The limits set in place in the carrying capacity of a 6mm twin and earth cable are in part determined by a number of factors that need to be accounted for in order for electrical circuits to work properly. Some of the factors include:
Ambient Temperature
- The amount of electrical current that a cable is capable of carrying is reduced with an increase in temperature. This is caused by the overheating of the conductor and the insulation material. In both of these situations, a de-rating is in order as it is apparent that high temperatures must be dealt with.
Installation Method
- The installation method used with the cables has a direct relation to their capacity and performance. An example would be cables that are placed under insulation or those that are situated in conduits or any other confined space for a sustained period of time.
Cable Length
- Increasing the length of the cable also increases the voltage drop, which results in resistance. Resistance from the cables negatively impacts the efficiency of the electrical device, specifically those that use low voltage, and as a solution, the cable length needs to be increased.
Group Configuration
- Restricted movement of air results in the ineffective dissipation of heat which in turn forces most rated current capacity to decrease, this is even more apparent in situations where multiple cables are used and are grouped together.
Thermal Insulation
- Thermal insulation of the cables increases the risk of cable overheating, since the performance of the insulating material blocks the heat from escaping. This circumstance requires careful determination of the corrected ampacity.
Conductor Material
- The conductor material (copper, aluminum, etc) too has a bearing on its resistance and hence its current rating. For instance, copper has higher conductivity and thus permits high capacity than aluminum does.
Frequency of Use
- Again, high operating frequencies may cause extra heating to occur in the skin effect and the proximity effect in the conductors, which may impact the net amount of effective current that can be carried.
Load Type
- Also the kind of electrical load (resistive, inductive, or capacitive) influences the thermal and efficient performance, hence determining the cable size and capacity to be used.
All these factors combined help to define the maximum permissible amount of current for 6mm twin and earth cable under those conditions. Proper evaluation and adherence to standards is crucial for achieving optimal cable performance and following local requirements regarding electrical installations.

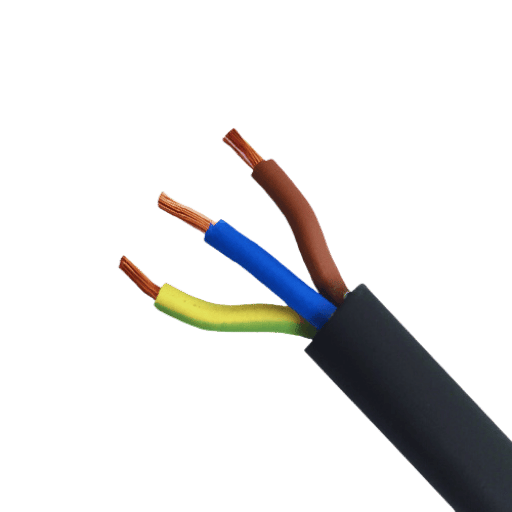

Can I Use a 6mm Cable for an 8.5 kW Shower?
What is the maximum kW rating for a shower on a 6mm cable?
A 6 mm twin and earth cable shower has a maximum kW rating, which is influenced by a number of factors, including run cable length, ambient temperature, and installation type. Generally, a 6mm cable is able to support a shower with a rating that does not exceed 8kw, or under most domestic conditions 7.5 kW. Furthermore, a 10mm cable should be used for showers with a power rating that exceeds 7.5kw to be electrical standards compliant. Before proceeding with the installation, it is best to seek an overview from certified electrical professionals.
Do I need a 40 amp fuse for an 8.5 kW shower?
In order to evaluate the use of a fuse, one must first consider the amount of current to be used. For example, if an 8.5KW shower is to be run on a 40amp fuse, one can determine:
Current (Amps) = Power (Watts) ÷ Voltage (Volts)
With a voltage of 230V, an 8.5KW shower can be said to have a wattage of a 8500W shower. In this case, the approximate calculation would be:
8500 W ÷ 230 V = 36.96 A
A rough conclusion can be drawn from this that a 40 amp fuse may or may not be able to manage a load of 37 amps. Now, there are other factors involved in the installation of a fuse. Some other factors, such as installation conditions, the size of the cable, the length of the cable run, and other potential issues, must be kept in mind. From practical experience, it can be seen that showers, which are used for long periods of time, run the risk of blowing any spares. This is more so the case with running a shower that is close to the fuse upper limits, for example, a 40 amp.
The electrical industries’ regulation manuals suggest that there be a safety measure over the load that was determined. When thinking about the upgradation of the structure or the possible changes in the supply voltage in the future, it adds to the requirements, ensuring reliability. For an 8.5 kW shower, it is ideal to have a dedicated circuit fused with a 45-amp MCB as well as an adequate 10mm square cable. With this combination installed, it takes care of both safety and performance.
However, it is important to add reservations to these suggestions, for any specific installation, one would need to speak to a qualified electrician who would assist in determining if that specific installation meets the updated Wiring regulations (the British Standard, BS 7671). By doing so, one can overwhelmingly ensure a proper installation of the shower and lower risks of equipment and fire failure.
What are the risks of using an undersized cable?
Undersized cabling comes with significant risks, including:
- Insulation damage and fire hazards: An extension cord with a smaller gauge wire barely manages to keep the wire’s temperature as low as it is able to. In case this wire is put to a higher than anticipated current, it might overstretch beyond its capacity and catch fire.
- Equipment Damage: If the cable is undersized for the required load, voltage drops will be present at the load end, reducing the appliances running onto that voltage greatly or even damaging them.
- Complete Burnout: Prolonged use of an undersized cable will eventually lead to interruptions in circuits, tripping breakers, or burning out the entire system.This will ultimately render the system unusable which can be avoided by using a correctly rated extension cord or consulting an electrician.

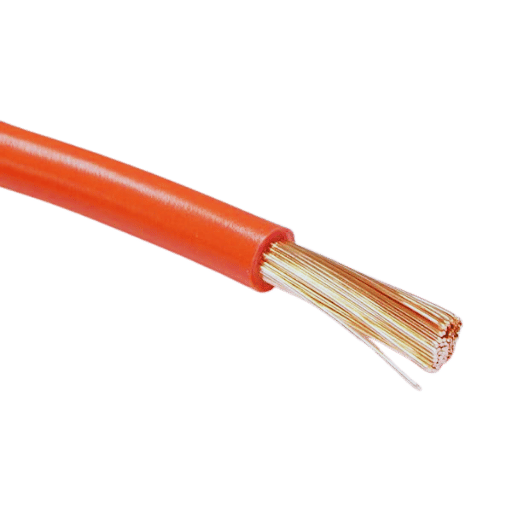

How to Ensure Safe Installation of a Shower with a 6mm Cable
How do you properly install a 6mm cable for a kw shower?
Check Cable Specifications
- Check that the 6mm cable is rated for the kilowatt (kW) power of the shower. A 6mm cable is normally considered suitable for showers rated between 7,5kW-8,5kW, but, as always, some variation arises due to the length of the cable and the environment.
Check Circuit Breaker Rating
- Fit a circuit breaker according to the current required by the shower. (This depends on the kW rate). For example, an 85kW rating is used as a breaker of 40A.
Use and Install an RCD (Residual Current Device)
- If you are an electrical professional in charge of providing such apparatus, verify that the Shower Circuit has an RCD set at 30mA. This is important for electrical safety.
Routing the Cable
- If possible, run the 6mm cable in almost a straight line from the consumer unit to the shower unit, never over 6m. Such drastic angles or compression should be minimized to lessen the chance of damage.
Having the Correct Amount of Conduit or Trunking
- Use compatible conduit or trunking to safeguard the cable, especially at locations where it may get crushed or other factors will affect it.
Making Sure There are Proper Connections
- Ensure that the cable is connected to the shower unit and, when appropriate, the consumer unit according to the manufacturer’s requirements. Also, check that their connections are intact and insulated as per specification.
Post-Installation Circuit Testing
- Once the installation is complete, electrical tests should be performed to check some values like continuity, insulation resistance, and many other parameters necessary for making sure that the circuit is completely working under restriction.
There is always a high recommendation for a licensed professional to perform the installation or check it in order to avoid any kind of violation.
What insulation and clip methods should be used?
The task of selecting the right insulation techniques and clipping methods is very important with respect to the requirements for electric safety, thoroughness, and adherence to the relevant legislation. Below is a detailed outline of recommended methods:
Insulation Methods
Heat-Shrink Tubing
- Offers a flexible robust, and waterproof covering.
- Recommended for shielding exposed wire ends or strips to cables.
- Recommended for situations having considerable moisture or other weather exposure.
Electrical Tape
- Widely employed and also serves numerous applications of insulation of wires and repairs of connections.
- Protects wires with flexibility, abraded, and chemically resistant properties.
- But electric tape, being porous, needs many layers to adequately cover the joint of cables, especially higher voltage ones.
Liquid Electrical Tape
- A coating that is brushed or dipped creates an airtight, waterproof, and insulating finish.
- Such materials come in handy for shapes that are curvature and respond better to difficult angles.
- They will dry out and define a skin that cannot be penetrated by air.
Cable Sleeving
- Assists in keeping things neat and saves space while putting additional protection for multiple wires.
- Usually used for protecting against wear in high-wear regions.
- It can include PVC, nylon, or PET braiding.
Clip Methods
- Cable Clips with Nails or Adhesives.
- By fitting wires or small cables along walls or other surfaces.
- They are available in numerous sizes to fit cables of varying diameters.
- For outdoor use make sure the clips are UV stabilised.
Cable Ties (Zip Ties)
- Perfect for consolidating many wires together and keeping them tied up securely.
- Available for one-time use or reusable to cater for different circumstances.
- Suitable for a short-term or long-term attachment.
P-Clamps (Cushioned Clamps)
- Minimizes the vibration and friction contact by holding the cables in position.
- It can be used in a vehicle, industrial, or sea environment.
- Comes with thermoplastic cushions for extra protection against wear and tear.
Adhesive Cable Management Clips
- Ideal for light-duty applications, for example, for managing cables on a workstation or a desk.
- Self-adhesive back facilitates easy application and removal.
- Honest reviews about the suitability of its very light cables for light applications and reinforcement for rough applications but not too well for heavy-duty cables.
Based on the location, load requirements, and application of the project, it’s possible to come up with a suitable method. All materials should pass safety and performance standards to ensure reliability and efficiency.
When should I consider upgrading to a 10mm cable?
For high-power applications and in cases where minimization of voltage drop across longer distances is required, it is necessary to consider upgrading to a 10mm cable when the electrical load exceeds the rating of smaller cables. If there is a need for increased safety or if the cable is intended for tough environmental conditions, then I would recommend this upgrade as well. Load specifications and relevant guidelines regarding American Safety Standards should always be checked and integrated.

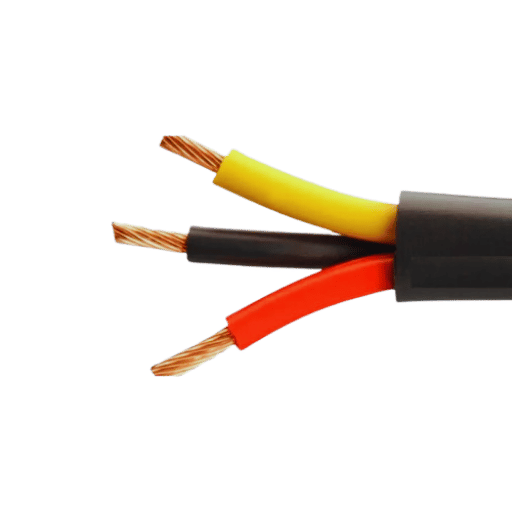

What is the Role of an Electrician in Installing a Shower on a 6mm Cable?
Why should a qualified electrician be consulted?
An electrician should be contacted because he or she is capable of doing an examination to determine whether the available 6mm wire will be adequate for the shower’s electrical load. Furthermore, they can determine the length of the cable run and check for overheating or voltage drops. Moreover, electricians guarantee safety by ensuring the local electrical codes and regulations are followed, minimizing risks of electrical fires and other dangerous equipment conditions. A professional and secure installation is then guaranteed.
What safety checks should be performed after installation?
Post the fitting of a shower that utilizes a 6mm cable, there are a few vital checks that need to be done to ensure the system is working properly and in a safe manner as well:
Conduct Intensity Testing
- Conduct intensity testing in order to make sure that there aren’t any breaks in the circuit for the electrical system within the system. This will guarantee that the current has a complete circuit to run through.
Test for Insulating Effect
- This test determines the insulating resistance of the wires to ensure no damage accumulates or wear and tear occurs. For residential purposes, this type of resistance typically exceeds 1 MΩ and meets the limitations laid out by IEC 60364.
Test for Loop Impedance of Protective Earth Fault
- In order to guarantee the people using the wire are safe from electrical faults, the earth fault loop impedance must be examined so that currents wishing to flow into the ground will be able to. Similar to the earth loop impedance, the circuits installed will have specifications that must be followed.
Residual Current Device Functionality Verification
- Residual Current Device must be operational before using a Residual Current Device or Integrated Protection Device without suitable means of fuse disconnection. An RCD should be tripped within 300ms or less when there is any detectable tracking or residual current of 30mA.
Thermal wiring
- In case a cable is rated with N or AN and operates on a lower range, it must still be operated under full load with maximum water pressure in order to generate a load under thermally un-dispersive conditions. It is going to be a best practice to rule out the possibility of undersized cables or any such design flaws.
Voltage Drop Assessment
- A voltage drop greater than 3%, except for lighting circuits, is considered to be too high, while for most UK residential circuit supply voltage, the percentage has to stay between 3 and 5, depending on the circuit being worked with. Now, based on the recognized standards and testing operating levels, the last issue needs to be set in the planning stage with effective change control procedures directly linked to the electrical wiring.
Testing all Integrations in a Shower Unit head and control panel
- All integrations, such as the head and the control panel that a device might have, such as a programmable thermostat, protective covering elements against overheating, and measuring devices for setting temperature, water flow rates, etc., should be thoroughly interrogated with questions covering every possible parameter for that specific auto-sensor thermostat or running devices.
Proof of Compliance
- When any test is over, a relevant certificate should be given, which states that a certain installation is compliant with the area regulations as well as other requirements, for example, BS 7671 in the UK (or local equivalents elsewhere). This entails the issuance of an Electrical Installation Certificate if necessary.
Making these compliance checks means that the electric installations are safe for use on a daily basis and pose minimal risks of faults, injuries, and property damage.

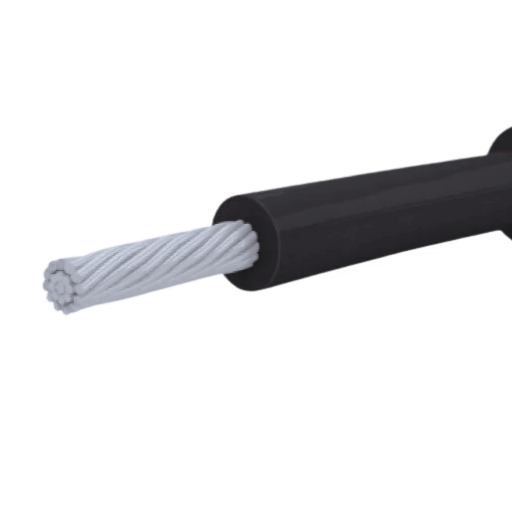

Common Questions About Shower on a 6mm Cable
Can a 9.5 kW shower be installed on a 6mm cable?
A shower of 9.5 kW can be connected to a 6mm squared cable, but only under certain conditions. The use of the 6mm squared cable comes into effect only with consideration of the method of installation and ambient temperature, which are important factors. Take, for instance, a 9.5 kW Shower. It would draw almost 41 amps; hence, under a few conditions, a 6mm cable may not be suited for the shower. Furthermore an appropriately rated circuit breaker or fuse must also be provided to the circuit.
These are key factors in attaining safety and meeting the requirements of the British electrical standards. If safety cannot be guaranteed or doubts arise it is always wise to get in contact with a licensed electrician.
How does the 40a breaker setting affect safety?
A 40A breaker is quite important in ensuring that an electrical circuit that has been wired using 6mm² is safe. The following are explanations of how the 40A breaker setting affects safety:
Overcurrent Protection
- The most important role played by a 40A breaker is shielding the circuit from excessive current. If the current goes over 40 amps because of a fault or added load, then the breaker will switch off and isolate the supply to minimize heating and potential fires.
Cable Capacity Alignment
- In most cases, a 40A circuit breaker serves as the upper limit of current ratings given a 6mm² cable under regular installation circumstances. Still, if the cable is exposed to high temperatures, subjected to long runs, or situated in warm environments, then the 40 amp setting might cause the cable to overheat. Therefore, it is necessary to adjust the breaker rating to the amended cable capability as a safety measure.
Avoiding Nuisance Tripping
- As the 40 amp setting is suited to deal with sudden short-duration spikes in demands, such as the surge current from a shower heater, it avoids the nuisance level of tripping under normal conditions. Instead, it affords protection against prolonged levels of overcurrent, which is still a very useful complaint.
Protection of Devices
- Inspection Breaker 40A as insulation puts off damage to the cable but essentially protects the appliances connected to the cable (showers as an example) as the power gets cut during abnormal conditions like short circuits or over voltage scenarios.
Systemarem
- By interrupting current situations, the 40A breaker minimizes cable and electrical components’ stress, making the life span and reliability of the circuit more robust .
Compliance Regulations
- Using a 40A breaker guarantees compliance with regulations such as the BS 7671 (IET Wiring Regulations). This compliance is interposed to legal safety protocols regarding electrical installations in residential and commercial settings.
Protection Devices
- Under normal conditions, that 40A breaker avoids shorting the cable and appliances attached to it. Such appliances can be showers that operate under low power. The breaker however shorts when conditions such as *overvoltage events arise.
Lastly, it’s essential to regularly verify and check the breaker and circuit to check if all components function as intended. If the cable or breaker functions as intended, then contact a professional electrician who can help you survey the issue and rectify it.
What should be done if the cable trips the breaker?
When evaluating why a cable trips the breaker, it is critical to find a solution in order to mitigate any further interference and preserve the safety of the system. Here’s how to solve that problem:
Identify the Cause of Breaking
One of the main reasons to toggle a breaker, which can result in tripping, would be an overload in a short circuit or a ground fault. To fully understand what the cause of the issue is, let us provide deeper insight into what ascertains it:
- Overload: You would like to gauge if the complete load in the circuit goes beyond its threshold, for example, take a 40A breaker, it has set an upper limit of continuous loading at 32 amps which is approximately 80% of its rated capacity, per the National Electrical Code (NEC) guidelines. If the collective of all the devices has surpassed this limit, the load can either be heaped differently or the circuit can be worked upon to be upgraded.
- Short Circuit: The factors that would fulfill this requirement would be the appropriate appliances, cables, and much more. These all are an endpoint to whether or not a short circuit would take place; the defining features for signifying a short are odors that are burnt or burn marks that are visible; these would identify whether cables and machines are at short-circuiting levels.
- Ground Fault: A ground fault, or a GFCI, to put it in simpler terms, would provide a protection layer to identify where the ground leakage problems might arise. This is ideal when insulation is unable to perform its functions or wiring is damaged and touching an unrelated surface.
Examine the Cable and Connections
Scrutinize the cable and plug them in for any breakage, disrepair, or deterioration. All indicated concerns, such as cables with exposed areas or lessened insulation, should be remedied by an electrician as these indicate the need to alter or substitute the wire.
Diagnose the Circuit Components
A multimeter or circuit tester can be used to scan for fault conditions at the breaker, outlets, and other appliances that are in use. Confirm that every component works within nominal parameters.
Reset the Breaker
Let the problem be resolved power off the equipment and reposition the switch to the OFF position, and then once more to ON. Additionally, safeguard the circuit and check if it can withstand normal load conditions.
Prevent Repeating Incidents
- Prevent Device Congestion on a Circuit: Remove superfluous high load devices from a single terminal.
- Revamp Circuit Configuration: For heavy current drawing devices, make it a point to have an adequate number of circuits to avoid strain on a single line.
- Static System Diagnosis: Your electricity system should be examined frequently for any sign of thinning, tearing, or other irregularities that could signify the onset of a malfunction.
You can rectify the issues involving an electrical circuit by diagnosing the problem and then resolving it effectively, thus avoiding low productivity and minimal risk in the future as well. For complex electrical circuits and system alterations, appropriate and insured professionals must be contacted to avoid risks.
Frequently Asked Questions (FAQs)
Q: What is the maximum kW rating for a shower on a 6mm cable?
A: For showers connected on a 6mm cable, the maximum kW rating that is permitted varies on other considerations such as cable length or method of installation. Usually, a cable of 6mm² is rated and given the allowance to use devices such as a pistol grip flame gun (or) hot air grip to use a shower that produces a maximum power of upto 8.5kW, but distance factors should definitely be calculated. It is best to seek the advice of a qualified electrician or check BS7671 regulations when making your calculations.
Q: Can I use a 40A MCB with a 6mm cable for my shower installation?
A: If one is using MCB with a 40A rating, it is still compatible with the 6mm sq cable in most cases during the installation of showers; however, it should be remembered that the current that is carried by the cable must be in tolerance with respect to the MCB rating or that of the showers. When using cables to install devices, remember that MCB’s rating, cable length, and environmental conditions, such as temperature, humidity, etc, should all be accounted for.
Q: What are the impacts of Cable length on power output in a shower installation?
A: The use of longer cables translates to lower voltage by 3%, and this voltage drop would affect the power output. For cable runs that are longer and exceed a predefined distance, cable size may need to be increased or the power rating of the shower reduced so as to keep voltage drop within the 3% limit. So, it can be inferred that an increase in cable run does indeed reduce the power output quite significantly, which is an adverse effect on the performance of the shower.
Q: How Much Load Can 6mm2 Cables Carry in Amperes?
A: So, in order to determine the load 6mm2 cables carry in Amperes, cables of that size would usually carry approximately 46 to 47 amps. However, If the cables are exposed to high temperatures or severe ambient conditions, the temperature shed may need to be lowered to suit the conditions. Different installation methods should also be taken into consideration as the conditions under which the construction may be protected vary. Always refer to the latest electric regulations and tables for accurate current ratings.
Q: Will a shower rated at 8.5kW run on a 6mm cable that is 18m long?
A: It may be possible to attach a shower rated at 8.5kW on a 6mm cable that is 18m long, but the issue of voltage drop has to be handled with care. You will have to work out the voltage drop across this distance and verify that it is less than three percent of the supply voltage, which is normally 230V. Should the voltage drop get out of hand, you would have to get thicker cables, possibly around 10mm², or lower the power rating of the shower head. This is perhaps necessary. It is,, however,, advisable for the correct procedure to be adopted to employ a professional electrician or rather a “sparky.”
Q: How does a 40 A MCB differ when compared with a 40amp fuse in a shower installation?
A: Even though both a 40A MCB and a 40amp fuse are there for the purpose of protecting against overloading the system, the MCB has a number of advantages. MCBs can be reset after being tripped while fuses are replaced. MCBs tend to trip sooner than fuses, which means that MCBs deliver better electrical protection to the system. In addition, MCBs can also be used together with RCBOs for additional protection against earth faults. For shower installations, MCBs are generally preferred due to their superior performance and ease of use.
Q: What would be the right fuse for shower installation? For instance, what size cable does Fusion use?
A: Generally speaking, if the hand shower has a power rating of less than 9.5 kW, and provided the rated cable size is 6 mm, then the MCB or fuse size likely to be used will be 40A. However, once again, Kalifa recommends reviewing manufacturer recommendations beforehand and never forgetting to follow the rules outlined in the BS7671 regulations. To determine the fuse rating, multiply the power by ¾ and the fuse rating slightly higher than this calculator value, and remember not to exceed anything higher than the designed current rating for the cable.
Q: What elevation would be allowed for the correct size kW for shower installation on a 6mm cable?
A: When looking for such, a few factors to keep in mind include the vertical and horizontal span of the wires, whether or not they will be clipped on directly or under the enclosure, the temperature of the surrounding environment, as well as the amount of MCB or fuse current ratings. Be sure to cross check the selected ratings with the designed current rating of the cable. Go through the BS7671 regulatory documents concerning the related tables like table 4D5 for more practical guidance pertaining to the cable to be utilized and Fleurette rating currently able to control Go through the BS7671 regulatory documents concerning the related tables like table 4D5 for more practical guidance pertaining to the cable to be utilized and Fleurette rating currently able to control. Consult an experienced electrician beforehand and ensure the cables adaptable are enough.
