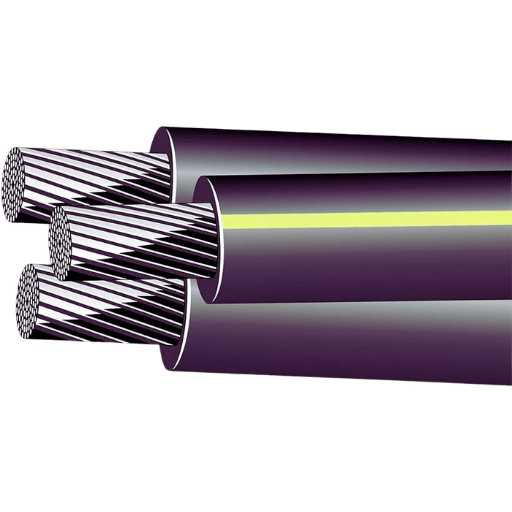

What is a 100 Amp URD Wire and How Does It Work?
Features of URD Cable and Its Uses
Being a 100 Amp URD cable, the cable is intended for Underground Residential Distribution, which includes significant features to qualify it for this application. The structure usually contains aluminum conductors, which are cheaper than copper and provide balanced conductance in houses electrical systems. The sheath of this cable is made using crosslinked polyethylene XLPE which has a good thermal resistance and excellent insulating properties. Besides, most of the time, the URD cables are in a triplex construction, incorporating a neutral conductor and two-phase conductors for effective transmission of electrical power.
URD cables find applications when buried underground between electricity poles and the houses in urban areas for extending the electricity supply from the roads electricity distribution poles to the houses. Being below the ground surface greatly minimizes chances of power cuts due to environmental hazards like storms and falling trees, which are very important for home improvement. In addition, because buried power distribution is required for appearance and overhead line space issues, a few URD cables are also used in commercial as well as industrial areas. Because of their ability to withstand harsh conditions, being cost-effective, and being dependable, they become suitable for modern electrical distribution systems.
Understanding Direct Burial Capabilities
The term direct burial capability explains the feature of a cable which is to be buried underground without the use of any additional conduit or mechanical protection. The 100 Amp URD cable possesses properties, which make it suitable particularly for applications, which require direct burial of the cables. Its insulation, commonly quenched cross-linked polyethylene (XLPE), is highly effective against moisture, soil chemicals and even impact, enhancing its durability and dependability even when subjected to harsh conditions. They arehin gyoturtitvavi able to bear the mechanical pressures that come during installation and the climatic temperature changes present when in the ground, enhancing user experience. This makes it suitable to connect power from the distribution utility’s network to various loads like residential, commercial, and industrial establishments for which underground cabling is preferred for safety and aesthetics.
Advantages of Aluminum URD Cables
More advantages can be listed that are addressing the requirements of the residential, commercial, and industrial electricity distribution systems so making the aluminum URD cables more appealing to customers. First, they are less dense than the copper thereby making their handling and installation easy. Hence savings can be made in terms of labor costs, and time taken for the installation may be reduced. Second, they are more affordable than aluminum URD cables making them a preferred choice for reliable power source in improve centers purely from an economy perspective. Their resistance to corrosion allows for use in places where there is a lot of water and dirt like underground. Also, this is because of the thermal expansion features of aluminum cables, ensuring a good response to temperature changes in underground usage. All these advantages help to serve the purposes that are required and fit the structure of the modern URD cables.
How to Choose the Right 100 Amp URD Cable for Your Needs?
Determining Wire Size for 100 Amp Service
Selecting the correct wire size for 100 amp service is important for safety and compliance. The proper wire size is generally based on the American Wire Gauge (AWG) standard and depends on the run’s length and the type of wire in use.
- Copper Wiring: For copper conductors, wiring conducted with a wire size of #4 AWG is standard for use in 100-amp service. Copper wiring has better conductivity and, therefore, a longer lifespan and temperature-resistive properties.
- Aluminum Wiring: For 100-amp service, a wire size of #2 for AWG wire is recommended. Aluminum wires are thin, less expensive, and appropriate for use over long distances with large diameters, especially in 100-amp applications.
- Length of the Run: When the length from the source to the opt-out is quite long, the voltage drop factor should be considered; quite possibly, a bigger wire size may be called for. It is advisable and possible to speak to an electrician to find out whether or not it is necessary to make that adjustment.
Ensuring that the correct wire size is used is central to achieving favorable performance levels, meeting all, and giving up electrical safety rules.
The Role of Ampacity in Cable Selection
Ampacity, defined as the capacity of a conductor to sustain heat without damage, is considered to be of the utmost importance in the selection of wires. In particular, appropriate ampacity should be determined while choosing a 100-amp URD cable to guarantee the reliability and safety of the electrical system.
- Material Differences: Copper and aluminum conductors have different ampacities, with copper generally having higher values. This is because a copper conductor has a greater current-carrying potential than a similarly sized aluminum conductor, which is why copper wires are usually of a smaller diameter for the same Amp rating.
- Environmental Factors: Installation environments affect ampacity. Many factors, such as ambient temperature, method of installation, and other cables, may adversely affect a conductor’s current capacity. For example, cables placed below ground may have different ampacity ratings from those in free-air installations because of different heat dissipation conditions.
- Safety Standards: The National Electrical Code ampacity tables and other codes enhance the safe usage of wires and other cables in practice, and therefore, proper selection, installation, and utilization of the various types of cables is of the utmost importance. These codes take into account various conditions, such as temperature ratings and insulation.
To conclude, correctly selecting the proper URD cable for a 100-amp service also involves understanding ampacity. This means taking into account conductor materials, ambient conditions, and safety codes to avoid excessive heating and guarantee the expected lifetime and reliability of the electrical system. These arguments for why it is necessary also resonated with operational effectiveness.
Southwire vs Other Brands: Which Is Better?
In assessing Southwire and other brands of electrical wire and cable, several factors must be considered: quality, durability, cost, and product range.
- Quality and Durability: Southwire is famous for providing high-quality, long-lasting products. The company trusts that its cables are manufactured in such a way that they abide by the accepted standards in the industry or even improve them. Other reliable manufacturers sell quality cables like Southwire, but most people and even contractors use Southwire because of the reputation that they have built over the years.
- Cost: Southwire prices are always reasonable, but in some cases, they tend to be higher than those of other brands. However, consumers do not mind writing that little extra check at the cash register, and they seem to be getting the best from buying between middle and high-priced products. Other brands may offer inexpensive service cable, which would be adequate for less complex tasks, but not the poor cables more budget-orientated brands would champion.
- Product Range: Southwire has an excellent variety of cables and wires for domestic, commercial, and industrial applications. This wider range may prove beneficial especially when there is a need to use specified or specialized cable types. Other brands do darker meat to a good extent, and it is conceivable that some brands carry a slimmer assortment of products, which can be a disadvantage when all the project requirements are met.
To conclude, in spite of the presence of other dependable brands within the market, Southwire’s quality, performance, and extensive range of products tend to make it the leader for most electrical applications. As I mentioned earlier, the final choice is based upon the volition and finances of the home improvement assignment.

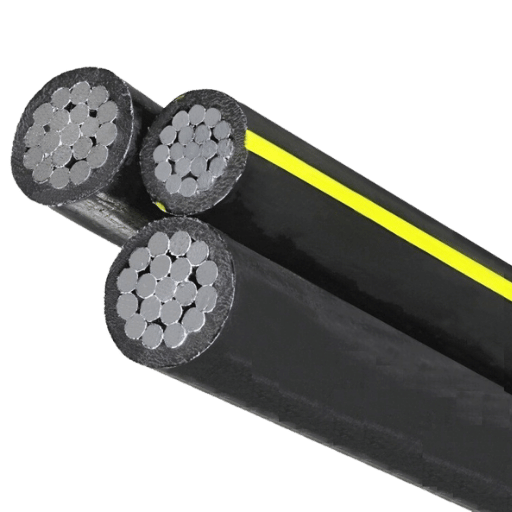

Installing a 100 Amp Subpanel with URD Wire
Step-by-Step Guide to Installation
Step 1: Gather Necessary Materials
Before commencing the installation process, you must ensure all the required materials and tools are in place. The required material includes a 100 amp subpanel, a URD wire, a main breaker, grounding rods as well as other connectors and fasteners. In addition, you will require more items such as a voltage tester, wire stripper, screwdriver, and drill.
Step 2: Shut Off Power
It is important to switch off the main power supply to avoid accidents. Using the voltage tester, ensure there is no power before proceeding to the next step.
Step 3: Mount the Subpanel
Locate and mount the 100 amp subpanel to the wall in an appropriate place. Even so, it must not be hard to get to and must comply with local electrical codes.
Step 4: Run URD Wire
Extend the URD wire from the Main Panel to the subpole. A protective conduit should protect this wire and run a few inches deep to clear the pipe. Make sure the pipe is well clamped, and the cable is laid out evenly, with no kinks or sharp turns across it.
Step 5: Connect the Grounding
Install grounding rods where necessary in accordance with the area’s codes. Connect the rods to the subpanel using a grounding cable. Ground wire connections will be fastened to the grounding bar within the subpanel.
Step 6: Wire the Subpanel
Take the ends of the wires connected to the URD wires and connect the wires to the right positions on the sub-panel. Usually, the red and black wires are funneled to the main breaker in the box; the white color neutral wire has a place on the neutral bus bar, while the bare or green colored grounding wire is placed on the ground bus bar.
Step 7: Install Breakers
Add a sufficient number of circuit breakers in the subpanel. The breakers shall be properly locked in place and of the right rating to allow service on those circuits.
Step 8: Test the Installation
At this point, all the wiring and connections are done. Now, do a final check of the electrical connections to ensure they are securely tightened. Switch on the main power supply and check with a voltage tester if the subpanel is loaded as expected.
Step 9: Final Inspection
As a best practice, a qualified electrician should inspect the whole installation before using the subpanel to confirm that the relevant codes are met.
These steps provide a ready methodology for wiring a 100-amp subpanel using URD wire, but one should always bear in mind building codes, which may differ from place to place.
Importance of Proper Grounding
Grounding is essential for the safety and proper functioning of any electrical work. Provision for effective grounding prevents these electrical faults, as it provides an alternative route for dangerous stray currents that may cause electric shock. It prevents over-voltage conditions caused by surges and lightning strikes and helps protect the power transmission system components from permanent failure. In addition, grounding that is maintained within the system enhances the operational efficiency of electrical devices through system reliability with no interruptions or faults. In conclusion, grounding is one of the most essential safety and reliability measures for both persons and equipment during electrical connections.
Avoiding Common Pitfalls During Installation
Installing a brief post on how to set up an electrically operated 100 amp sub panel with the help of URD wire may be easier than usual if some common mistakes are avoided. These points are rather basic but can be significant:
- Mistakes in Dimensioning the Wire: Remember to size the tampered URD wire correctly to suit the 100-amp subpanel and prevent it from overheating, which can cause fires. It is risky to operate undersized wires in a 100-amp subpanel.
- Mistakes in Dimensioning the Wire: It is necessary to repeat that the most common mistake is improper grounding. Ensure that the subpanel’s ground is appropriately fixed so there is no risk of electric shock or voltage spikes.
- Looseness of the Connections: Ensure all joints made have been tightened and that none of the joints are lax. Loose connections can create arcing conditions, leading to a fire hazard and performance blowouts of the electrical parts.
- Disregarding Building Codes: Consult your local engineer to ensure everything inside complies with the building code. Doing that can make you fail the building inspeciton and create safety hazards.
- Circuit Overloading: Ensure that you sit and design the circuit layout in such a way that it will never exceed the designed load for the circuit. Circuits that are loaded beyond the acceptable load ratings cause the circuit breakers to trip unnecessarily and also spoil the load appliances and other electrical gadgets.
Addressing such issues unclogs the path to many hurdles concerning electrical installation compliance, making it safer and more efficient.
Differences Between 200 Amp Service and 100 Amp Service
Understanding the Conductor Requirements
It is equally important to know what construction and how thick conductors are needed for safe and effective usage of both 200 amp service and 100 amp service. In the case of 100 amp service, the cable commonly used is copper and aluminum wires. It is recommended that for a 100 amp service, the minimum wire size should be 4 american wire gauge (AWG) of copper or 2 AWG of aluminum (American National Standard Construction). On the other hand, a 200 amp service will need a bigger conductor size ranging from 2/0 gauge copper wire or 4/0 aluminum wire for high current carrying capacity.
There is also a comparison of the cost of installation of electrical systems using either copper or aluminum conductors watching the THHN or THWN ratings which also affects performance. Copper, on one hand, has favorable conduction and fracture toughness properties, making it a popular, although expensive, option over aluminum. Aluminum, though inexpensive and lightweight and giving more flexibility than copper, is also put under antioxide compounds, and this should be handled properly to avoid corrosion and expansion problems resulting in loose connections.
These conductor requirements are necessary for the proper functioning and safety of the electrical installation, especially concerning the use of 600 V wires. Using a proper conductor size reduces the risk of overheating, voltage drop, and fire hazard, considering the soundness and legality of the electrical system.
When to Upgrade from 100 Amp to 200 Amp Service
There are many reasons why upgrading from 100 amp to 200 amp service is appropriate. If you are planning a major home improvement or an extension that may cause a rise in your electrical load, such as installing a central A/C unit, electric heating systems or new appliances, then it is wise to consider an upgrade. Moreover, more than one hundred amp service may be required in older homes with outdated wiring to meet present-day power and safety standards. Also, the fact that the circuit breaker often pops or that extension cords are being used to power more appliances than a room can accommodate are signs that a change is required. Also, if you are going to install a home electric vehicle charging station, plan for a 200 amp service as this will be needed for the efficient safe running of the charging station. Thus, an upgrade guarantees that your home’s electrical system will accommodate rising loads, increasing its safety and reliability.
Cost Considerations for Upgrading
The fees associated with an upgrade from 100 amp service to 200 amp service depend on many factors including the installation difficulty, the geography, and the requirements of the building in question (especially if one has to run relevant service cable in excess of 100 feet). On average, a homeowner looking to achieve this home improvement can prepare to spend anywhere between $1500 to $3000 for this upgrade. Such expenses cover materials for instance a wall-mounted electrical panel, extra cables, and labor costs. However, installations surrounding such upgrades may incur extra costs i.e. meter base replacements, paid permits etc or other expenses in order to comply with the building codes. For such work involving the 100amp service, it is imperative that a licensed electrician is consulted so as to approve seeking a quote. Any homeowner will derive not only improved safety and more capacity from the service upgrade but also the value thereof will further protect its investment when completed.
FAQs About URD Cable and Its Applications
Can URD Cable Be Used for Direct Burial?
Yes, URD (Underground Residential Distribution) cable may also be directly buried without any extra protective duct. This kind of cable is called underground cable, which is ideal for the distribution of power from the transformer plant to the houses. URD cable has adequate insulation, which shields it from moisture, corrosion, and impacts, making it suitable for long-term direct-burial application. Precautions should be observed to avoid safety and compliance issues with building codes and installation guidelines provided by manufacturers.
Is Aluminum URD Cable Safe for Home Use?
Aluminum URD cables that are fitted in homes are safe provided they are installed properly and conform to local safety regulations. There are modernized aluminum conductors provided with better design and material properties that help prevent electrical accidents. Because of their low weight and cost, they are commonly utilized for power distribution and service entrance cables. However, they call for a high level of application strictness, such as the installation of anti-oxidant materials and using suitable cable connectors in the right manner so that factors like overheating and corrosion do not occur. Seeking the services of a licensed technician for the installation of aluminum URD cables would help contain any doubts regarding their use within residential areas.
What is the Life Expectancy of URD Wire?
Life expectancy of URD (Underground Residential Distribution) Â cable may differ concerning the place of installation and support, especially in the case of triplex URD arrangements. In general terms, URD wire is expected to have a service life of 25 to 40 years. Sometimes, the type of soil or implementation and the applied insulation over the wire may affect its useful life. Appropriate construction measures and good quality URD cables, which have excellent dielectric properties, will guarantee optimal performance even for extended duration. Maintenance was recommended within particular intervals, and compliance with the local building regulations contributed to the durability of the URD wiring system.
Reference Sources
Frequently Asked Questions (FAQs)
Q: Define URD cable and where it is applied in the electrical supply.
A: URD (Underground Residential Distribution) cable is a type of electrical cable that is built for burial and can, therefore, be directly buried. It is often used in the underground service entrance for both residential and light commercial and feeder applications. URD cable is specially made for 100 amp service when putting up a main panel and 100 amp sub panel or for other electrical supply purposes.
Q: Can a 100 Amp URD cable be installed in the conduit?
A: Although URD cable is meant for dirt applications, it can still be used in a conduit. Nevertheless, the conduit’s size must match the cable’s size. PVC should be used when employing conduit, as it is cheaper and more efficient in underground applications.
Q: What’s the difference between stranded and solid conductor URD cables?
A: Stranded and solid conductor URD cables are available. Stranded conductors allow more flexibility and are easier to apply in relatively smaller spaces. Solid conductors, being tubes, provide more moisture protection but are more difficult to shape. In the case of 100 amp service, stranded aluminum conductors are, in most cases, optimally used due to their installability and performance ability.
Q: What is the order of magnitude of a 100-amp URD cable with respect to an SER cable for connecting a 100-amp subpanel?
A: Both can be utilized when joining the 100 amp sub panel, but as the name implies, URD cable is meant specifically for underground research, which makes it suitable for outdoor use. This cable type is typically employed for internal applications or in a wall running throughout the structure. Due to its capability for moisture resistance about usage stopped outside, URD cable is preferred externally between a 100 amp sub panel and a central panel within specific contexts.
Q: What kind of wire is used for the 100 Amp URD cable?
A: The most predominant wire size for a 100-amp service is 2-2-2 aluminum. This means that two 2 AWG conductors are chosen for the hot wires and a neutral wire, which is a single 2 AWG conductor. The ground wire may be of a lower gage. Always consult local electrical codes and an electrician to specify the exact wire size needed for the job at hand.
Q: Can a 100-amp main panel be upgraded to a 200-amp main panel using a 100-amp URD cable?
A: No 100-amp URD Cable is used for upgrading to a 200-amp main panel. If one is looking at a 200-amp service, then one would need to use higher gauges of conductors to accommodate this, usually 4/0 aluminum conductors or 2/0 copper conductors. Always contact a licensed electrician for such upgrades and installations as per the local codes.
Q: What’s the voltage rating of a 100 Amp URD cable?
A: Most 100-amp URD cables are rated for 600V. This voltage rating is appropriate for typical domestic and some light commercial installations. Always check the cable’s specifications and make sure that it is appropriate for your electrical system and all local codes.
Q: What is the minimum burial depth for URD cable for direct bury applications of 100 Amps?
A: The depth at which the URD cable can be buried varies by local regulations. However, it usually has to be at least 24 inches deep. Despite that, there are areas that accept lesser depths provided the service cable is ducted. It’s better if the local electrical inspector is consulted or the NEC codes that govern the area are followed.
