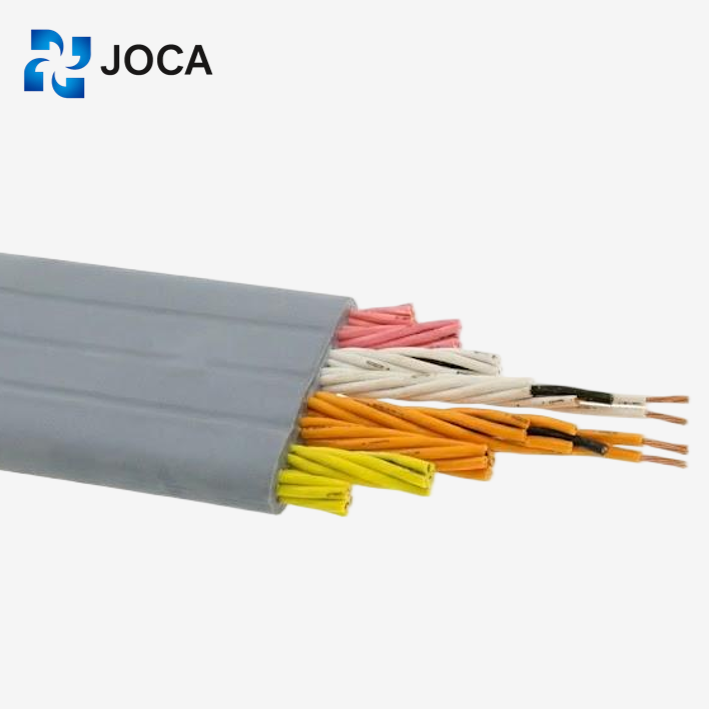

TVVB Flat PVC Sheathed Elevator Cable
High-Flexibility Flat Traveling Cable for Elevators & Cranes
Conductor: Meets GB/T 3956 Class 5 conductor standard (Flexible Copper).
Insulation: PVC/D type PVC compound insulation.
Sheath Material: PVC/ST5 special PVC compound.
Sheath Color: Black or Gray (RAL7001).
Applicable Standards: GB/T 5023.6, IEC 60227-6, EN 50214, Enterprise Standard.
Rated Voltage: 300/500V (For nominal conductor cross-section <= 1mm²).
Test Voltage:
Rated 300/500V (Insulation thickness <= 0.6mm): 1500V; Finished cable test voltage: 2000V.
Rated 450/750V (Insulation thickness > 0.6mm): 2500V; Finished cable test voltage: 2500V.
Minimum Bending Radius: Not less than 6 times the cable’s smaller side.
Temperature Range: -15°C to +70°C.
Static Torsion Test: Complies with GB/T 5023.2 3.5.
Flame Retardant Test: Pass GB/T 18380 test.
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
TVVB Flat PVC Sheathed Elevator Cable: Product Description and Specifications
The TVVB Flat Elevator Cable is a flexible PVC traveling cable designed for lifts and cranes. Engineered with cold and oil-resistant insulation, it supports free-hanging lengths up to 80 meters and travel speeds of 4m/s. Reliable and durable, it fully meets IEC 60227 and EN 50214 standards.
-
Advantages
TVVB Flat PVC Sheathed Elevator Cable : Benefits and Features
80m Free Suspension Reinforced core (steel/textile) allows vertical hanging up to 80m without elongation.
-15°C Cold Flexibility Specialized PVC remains flexible and crack-resistant in cold shafts (down to -15°C).
Anti-Torsion Design Flat profile eliminates twisting and ensures smooth stacking in cable chains.
Abrasion Resistant Heavy-duty sheath withstands constant friction against guide rails.
EN 50214 Compliant Certified to European standards for lift and hoist applications.
Dimensions/Parameters
| Model | Specification | Approx. OD (mm) | Approx. Weight (kg/km) |
|---|---|---|---|
| TVVB (Flower Pattern) | 24x0.5 | 7.4*22.8 | 337.95 |
| TVVB (Flower Pattern) | 30x0.5 | 7.4*31.8 | 454.43 |
| TVVB (Flower Pattern) | 36x0.5 | 7.4*34.8 | 509.46 |
| TVVB (Flower Pattern) | 40x0.5 | 8.1*35.3 | 554.18 |
| TVVB (Flower Pattern) | 42x0.5 | 7.4*41.8 | 604.28 |
| TVVB (Flower Pattern) | 48x0.5 | 7.4*44.8 | 670.11 |
| TVVB (Flower Pattern) | 54x0.5 | 7.4*51.8 | 780.75 |
| TVVB (Flower Pattern) | 60x0.5 | 7.4*54.8 | 805.84 |
| TVVB (Flower Pattern) | 24x0.75 | 9.15*29.8 | 527.41 |
| TVVB (Flower Pattern) | 30x0.75 | 8*34.8 | 574.13 |
| TVVB (Flower Pattern) | 36x0.75 | 8*38.4 | 647.25 |
| TVVB (Flower Pattern) | 40x0.75 | 8.8*38.8 | 713.02 |
| TVVB (Flower Pattern) | 42x0.75 | 8*46 | 765.18 |
| TVVB (Flower Pattern) | 48x0.75 | 8*49.6 | 838.30 |
| TVVB (Flower Pattern) | 54x0.75 | 8*57.2 | 956.23 |
| TVVB (Flower Pattern) | 60x0.75 | 8*60.8 | 1029.34 |
| TVVB (Flower Pattern) | 24x1.0 | 9.75*32.2 | 639.87 |
| TVVB (Flower Pattern) | 30x1.0 | 9.6*41.2 | 798.21 |
| TVVB (Flower Pattern) | 36x1.0 | 9.6*46 | 905.97 |
| TVVB (Flower Pattern) | 40x1.0 | 10.6*46.2 | 996.10 |
| TVVB (Flower Pattern) | 42x1.0 | 9.6*54.8 | 1067.51 |
| TVVB (Flower Pattern) | 48x1.0 | 9.6*59.6 | 1175.26 |
| TVVB (Flower Pattern) | 54x1.0 | 9.6*68.4 | 1336.80 |
| TVVB (Flower Pattern) | 60x1.0 | 9.6*73.2 | 1444.56 |
| TVVB (Parallel) | 3x0.75 | 4.08*9.72 | 66.97 |
| TVVB (Parallel) | 4x0.75 | 4.08*11.96 | 85.25 |
| TVVB (Parallel) | 5x0.75 | 4.08*16.2 | 114.96 |
| TVVB (Parallel) | 6x0.75 | 4.08*18.44 | 133.24 |
| TVVB (Parallel) | 9x0.75 | 4.08*25.16 | 188.07 |
| TVVB (Parallel) | 12x0.75 | 4.08*32.88 | 248.62 |
| TVVB (Parallel) | 16x0.75 | 4.08*41.84 | 321.73 |
| TVVB (Parallel) | 18x0.75 | 4.08*46.32 | 358.29 |
| TVVB (Parallel) | 20x0.75 | 4.08*50.8 | 394.85 |
| TVVB (Parallel) | 24x0.75 | 4.08*59.76 | 467.96 |
| TVVB (Parallel) | 3x1.0 | 4.24*10.32 | 77.08 |
| TVVB (Parallel) | 4x1.0 | 4.24*12.76 | 98.63 |
| TVVB (Parallel) | 5x1.0 | 4.24*17.2 | 132.07 |
| TVVB (Parallel) | 6x1.0 | 4.24*19.64 | 153.62 |
| TVVB (Parallel) | 9x1.0 | 4.24*26.96 | 218.29 |
| TVVB (Parallel) | 12x1.0 | 4.24*35.28 | 288.89 |
| TVVB (Parallel) | 16x1.0 | 4.24*45.04 | 375.11 |
| TVVB (Parallel) | 18x1.0 | 4.24*49.92 | 418.22 |
| TVVB (Parallel) | 20x1.0 | 4.24*54.8 | 461.33 |
| TVVB (Parallel) | 24x1.0 | 4.24*64.56 | 547.55 |
| TVVB (Parallel) | 3x1.5 | 4.91*11.73 | 103.40 |
| TVVB (Parallel) | 4x1.5 | 4.91*14.64 | 133.40 |
| TVVB (Parallel) | 5x1.5 | 4.91*19.55 | 177.16 |
| TVVB (Parallel) | 6x1.5 | 4.91*22.46 | 207.16 |
| TVVB (Parallel) | 9x1.5 | 4.91*31.19 | 298.36 |
| TVVB (Parallel) | 12x1.5 | 4.91*40.62 | 393.58 |
| TVVB (Parallel) | 3x2.5 | 5.53*14.19 | 151.61 |
| TVVB (Parallel) | 4x2.5 | 5.53*17.72 | 195.91 |
| TVVB (Parallel) | 5x2.5 | 5.53*24.25 | 263.46 |
| TVVB (Parallel) | 6x2.5 | 5.53*27.78 | 307.76 |
| TVVB (Parallel) | 9x2.5 | 5.53*38.37 | 440.68 |
| TVVB (Parallel) | 12x2.5 | 5.53*50.46 | 585.21 |
| TVVB (Parallel) | 4x4.0 | 6.5*20 | 277.26 |
| TVVB (Parallel) | 5x4.0 | 6.5*27.1 | 368.87 |
| TVVB (Parallel) | 4x6.0 | 7.06*22.24 | 363.19 |
| TVVB (Parallel) | 5x6.0 | 7.06*29.9 | 478.51 |
| TVVB (Parallel) | 4x10 | 9.25*29.4 | 617.47 |
| TVVB (Parallel) | 5x10 | 9.25*38.85 | 805.48 |
| TVVB (Parallel) | 4x16 | 10.31*33.24 | 855.97 |
| TVVB (Parallel) | 5x16 | 10.31*43.55 | 1106.83 |
| TVVB (Parallel) | 4x25 | 12.31*40.44 | 1289.93 |
| TVVB (Parallel) | 5x25 | 12.31*52.55 | 1658.29 |
-
Production Processes Of Elevator Cable
Our production relies on state-of-the-art manufacturing equipment to ensure exceptional flex-life and dynamic performance. The process integrates precision fine copper stranding with advanced flexible compound extrusion for maximum bendability. During the critical cabling stage, we implement specialized anti-twist core arrangement and steel-member integration for high-rise applications. Throughout production, strict quality controls—including online spark testing and continuous tension monitoring—are applied to every meter. This rigorous workflow guarantees our traveling cables meet stringent EN, IEC, and GB standards for safe vertical transport.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
Q: Primary Applications?
A: Vertical Suspension & Traveling.
Core Use: Internal suspension for elevators and lift platforms.
Secondary: Suitable as trailing cables for traveling cranes and hoists.
Q: Max Suspension Length?
A: 80 Meters.
Supports a free-hanging length of up to 80m (unsupported). (Note: For lengths >80m, steel-reinforced versions are recommended).
Q: Maximum Travel Speed?
A: High Speed Rated (4 m/s).
Engineered for running speeds up to 4 meters per second.
Q:Voltage Rating?
A: Section Dependent.
≤ 1.0mm²: 300/500V.
> 1.0mm²: 450/750V (Standard Practice).
Q: Operating Temperature?
A: Cold Resistance (-15°C).
Range: -15°C to +70°C.
Feature: Sheath remains flexible and crack-resistant in cold shafts.
Q: Minimum Bending Radius?
A: 6 x Thickness.
Radius: 6 x Minor Axis (Cable Thickness).
Q: Environmental Resistance?
A: Oil & Cold Resistant (ST5).
Sheath: PVC/ST5 Compound.
Properties: Excellent resistance to oil spray, moisture, and low temperatures.
Q : Core Identification?
A: GB/T 5023 Compliance.
≤ 5 Cores: Color Coded (GB/T 5023.1 4.1).
> 5 Cores: Black with White Digits (GB/T 5023.1 4.2).
