TVVBG-Cat5e Elevator Cable
network cable + steel wire reinforced flat or figure8 elevator cable with network cable
Conductor: Meets GB 3956 Class 5 or Class 6 conductor standard.
Insulation: Special PVC compound insulation.
Video Core: Bare copper and CCS conductor, low interference 75Ω coaxial video cable.
Shielding: Bare (or electroplating) copper braiding.
Reinforced Core: Steel rope, meets YB/T 5196 standard.
Sheath Material: PVC/ST5 special PVC, black or gray (RAL7001).
Application Standard: Enterprise Standard.
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
TVVBG-Cat5e Elevator Cable : Product Description and Specifications

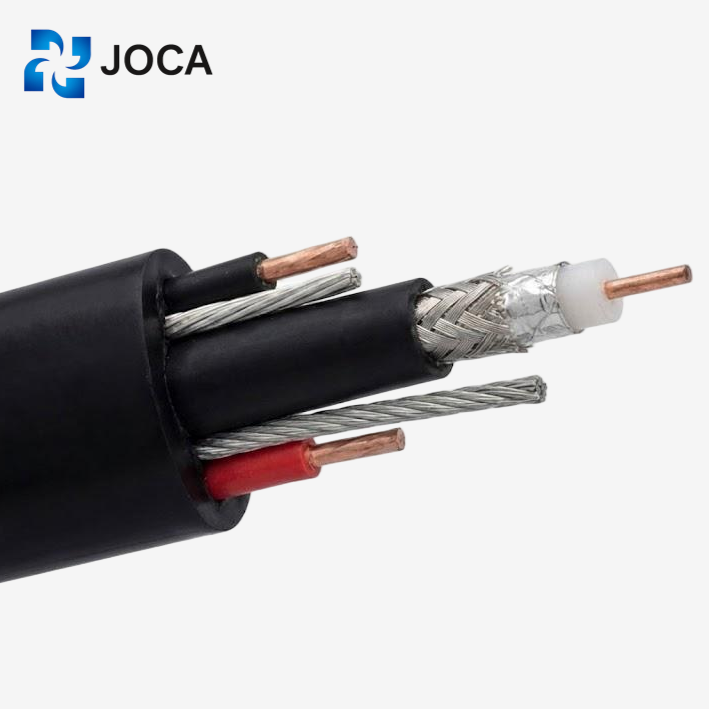

Engineered for elevator CCTV systems, this composite flat traveling cable integrates video transmission, power supply, and high-tensile reinforcement. It features a SYV75-5 coaxial core for clear video signals, RV2x0.75 power lines, and dual steel ropes (2G) to prevent elongation. The special flexible PVC sheath ensures durability and a tight bending radius (-15°C to +70°C) for smooth vertical operation.
-
Advantages
TVVBG-Cat5e Elevator Cable : Benefits and Features
Integrated Design: Combines SYV75-5 video and power cores in one flat cable to save space.
High Strength: Reinforced with dual steel ropes (2G) to prevent elongation and breakage.
Superior Flexibility: Flat profile allows for a tight bending radius for smooth travel.
Clear Signal: High-quality coaxial core ensures low-interference video transmission.
Durable: Flame retardant and cold resistant (-15°C to +70°C).
Dimensions/Parameters
| Attribute | Value |
|---|---|
| Model | DT-SYV75-5+RV-2-0.75+2G |
| Average Max OD (mm) | 8.3±0.3 × 18.5±0.6 |
| Cable Approximate Weight (kg/km) | 210 |
| Max Free Hanging Length (m) | < 80 |
| Max Moving Speed (m/s) | < 10 |
| Application Environment | Internal elevator suspension, monitoring, serial communication |
| Shielding Property | Particularly anti-electromagnetic interference |
| Flexibility | Excellently flexible & bendable |
| Resistances | Oil resistance, Cold resistance, Moisture resistance, Wear resistance |
| Compliance | RoHS |
| Rated Voltage | 300/500V |
| Test Voltage | 2000V |
| Operating Temperature | -15°C to +70°C |
-
Production Processes Of Elevator Cable
Our production relies on state-of-the-art manufacturing equipment to ensure exceptional flex-life and dynamic performance. The process integrates precision fine copper stranding with advanced flexible compound extrusion for maximum bendability. During the critical cabling stage, we implement specialized anti-twist core arrangement and steel-member integration for high-rise applications. Throughout production, strict quality controls—including online spark testing and continuous tension monitoring—are applied to every meter. This rigorous workflow guarantees our traveling cables meet stringent EN, IEC, and GB standards for safe vertical transport.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
Q: Primary Application of TVVBG-Cat5e Elevator Cable
A: Elevator CCTV 3-in-1 Solution.
Composition: Integrates SYV75-5 Coax (Video) + RV 2×0.75 (Power) + Dual Steel Ropes (Suspension).
Function: Specifically designed to power and transmit video for analog HD cameras inside the elevator cabin.
Limits: Suitable for free-hanging lengths up to 80 meters and travel speeds up to 4 m/s. (Critical Update: 10 m/s is too risky for coaxial signal stability).
Q: How is Signal Stability Ensured?
A: 75Ω Impedance & EMC Shielding.
Core: Features a high-precision SYV75-5 Coaxial Core strictly maintained at 75Ω impedance to prevent signal reflection (ghosting).
Shield: Uses High-Density Tinned Copper Braiding (instead of bare copper) to effectively block electromagnetic interference (EMI) in the noisy shaft environment.
Q:Durability for Vertical Suspension?
A: Reinforced “2G” Structure.
Strain Relief: Reinforced with Dual Galvanized Steel Wire Ropes (2G) embedded laterally.
Benefit: These members absorb the mechanical tensile load, ensuring the sensitive coaxial dielectric is not compressed or stretched, preserving video quality during vertical acceleration.
Q:Exact Dimensions & Weight?
A: Spec Sheet Data.
OD: Approx. 8.3 mm x 18.5 mm (Tolerance: ±0.3/0.6mm).
Weight: Approx. 210 kg/km.
Note: Please verify that your elevator cable clamp is sized for a width of 18.5mm.
Q: Harsh Environment Capability?
A: ST5 Cold Resistant.
Sheath: PVC/ST5 Compound.
Range: -15°C to +70°C.
Performance: Resistant to oil mist and remains flexible without cracking in unheated, cold shafts.
Q: Installation Bending Radius?
A: Protecting the Coax.
Rule: Minimum bending radius ≥ 6 x Thickness (approx. 50mm).
Warning: Do not kink. A sharp bend will deform the coaxial foam insulation, causing immediate signal loss.
Q: Is Power Included?
A: Yes, Integrated Power.
Specs: Includes 2 x RV 0.75mm² flexible copper cores.
Benefit: Sufficient to power standard IR Cameras or Dome Cameras, eliminating the need for a separate power cable run.
Q : Environmental Compliance?
A: RoHS Compliant.
Materials: Free from hazardous substances (Lead, Mercury, etc.), fully complying with EU RoHS directives for safe indoor installation.
