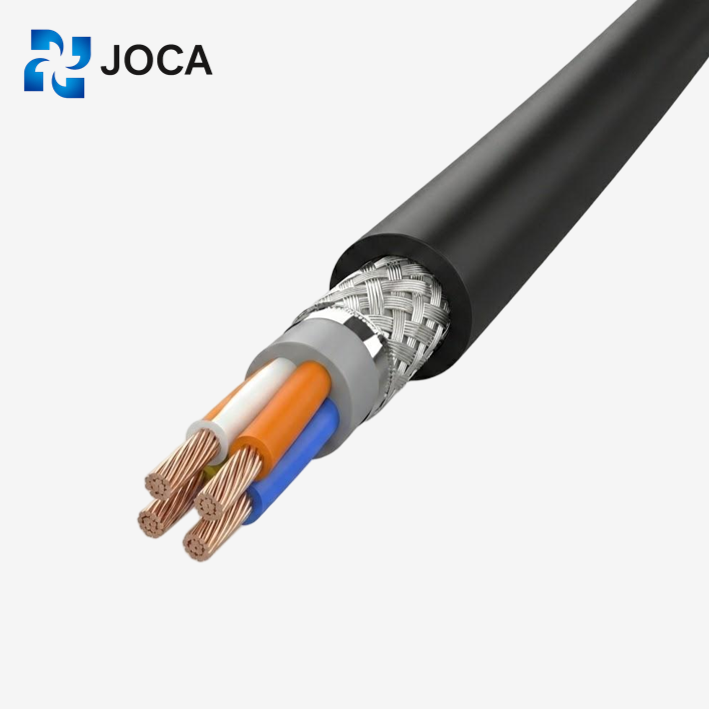

930 CY.P High-Flex Shielded PUR Drag Chain Cable with Reinforced PVC Inner Sheath
Oil & Weather Resistant | EMC Compliant | >10 Million Cycles for Automation & Machinery
Conductor: Fine stranded oxygen-free copper wire (Class 6 according to DIN VDE 0295 & IEC 60228)
Insulation: High-strength PVC compound
Inner Jacket: Special high-strength elastic PVC compound
Shielding: Tinned copper wire braid
Outer Sheath (Jacket): PUR (Polyurethane)
Sheath Color: Black, Gray, Orange (Customizable)
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
930 CY.P: Product Description and Specifications
The 930 CY.P is a premium, highly flexible control and power cable engineered for dynamic automation systems. Featuring a robust double-sheath design—a high-strength PVC inner layer and a tear-resistant Polyurethane (PUR) outer jacket—this cable is built to withstand the most demanding industrial environments. With a service life exceeding 10 million cycles, it is the ideal solution for high-speed drag chains, robotics, and CNC machinery where electromagnetic interference (EMC) protection is critical.
-
Advantages
930 CY.P: Benefits and Features
Structure: Reinforced PVC Inner + Shielded + PUR Outer
Durability: Oil, Acid, Alkali & Weather Resistant
Performance: ≤ 10m/s Speed, ≥ 10 Million Cycles
Application: Robotics, CNC, Outdoor Automation
Technical Data
| Category | Parameter | Value |
|---|---|---|
| Electrical Data | Rated Voltage | 300/300V, 300/500V, 450/750V |
| Electrical Data | Test Voltage | 1500V, 2000V, 2500V |
| Electrical Data | EMC Compliance | Copper wire shielding (prevents electromagnetic interference) |
| Mechanical Data | Min. Bending Radius (Fixed Installation) | 6 x D |
| Mechanical Data | Min. Bending Radius (Mobile Installation) | 8 x D |
| Mechanical Data | Movement Speed | ≤ 10 m/s |
| Mechanical Data | Service Life | ≥ 10 Million Cycles |
| Thermal Data | Temperature Range (Fixed Installation) | -50°C ~ +105°C |
| Thermal Data | Temperature Range (Mobile Installation) | -40°C ~ +90°C |
| Construction | Conductor | Fine oxygen-free copper wire (DIN VDE 0295 / IEC 60228 Class 6) |
| Construction | Insulation | High-strength PVC compound |
| Construction | Inner Jacket | Special high-strength elastic compound |
| Construction | Shielding | Tinned copper wire braided |
| Construction | Outer Jacket | PUR (Polyurethane) |
| Construction | Core Color | Color coded or Numbered (Customizable) |
| Construction | Jacket Color | Black, Gray, Orange |
| Application Properties | Environment | Oil resistant, Acid and Alkali resistant, Weather resistant (Outdoor) |
Dimensions/Parameters
| Model | Spec (Cores x mm²) | Outer Diameter (mm) | Weight (kg/km) |
|---|---|---|---|
| 930 CY.P | 2x0.14 | 5.5 | 38 |
| 930 CY.P | 3x0.14 | 5.7 | 42 |
| 930 CY.P | 4x0.14 | 6.0 | 47 |
| 930 CY.P | 5x0.14 | 6.4 | 54 |
| 930 CY.P | 6x0.14 | 6.8 | 60 |
| 930 CY.P | 7x0.14 | 7.2 | 67 |
| 930 CY.P | 8x0.14 | 7.6 | 73 |
| 930 CY.P | 9x0.14 | 8.0 | 81 |
| 930 CY.P | 10x0.14 | 8.4 | 88 |
| 930 CY.P | 12x0.14 | 9.7 | 108 |
| 930 CY.P | 14x0.14 | 10.6 | 123 |
| 930 CY.P | 16x0.14 | 10.6 | 128 |
| 930 CY.P | 2x0.2 | 5.7 | 42 |
| 930 CY.P | 3x0.2 | 6.0 | 46 |
| 930 CY.P | 4x0.2 | 6.3 | 53 |
| 930 CY.P | 5x0.2 | 6.7 | 61 |
| 930 CY.P | 6x0.2 | 7.2 | 68 |
| 930 CY.P | 7x0.2 | 7.6 | 75 |
| 930 CY.P | 8x0.2 | 8.0 | 83 |
| 930 CY.P | 9x0.2 | 8.5 | 92 |
| 930 CY.P | 10x0.2 | 8.9 | 100 |
| 930 CY.P | 12x0.2 | 10.4 | 124 |
| 930 CY.P | 14x0.2 | 11.3 | 141 |
| 930 CY.P | 16x0.2 | 11.3 | 147 |
| 930 CY.P | 2x0.25 | 5.8 | 45 |
| 930 CY.P | 3x0.25 | 6.1 | 50 |
| 930 CY.P | 4x0.25 | 6.5 | 57 |
| 930 CY.P | 5x0.25 | 6.9 | 65 |
| 930 CY.P | 6x0.25 | 7.4 | 73 |
| 930 CY.P | 7x0.25 | 7.8 | 82 |
| 930 CY.P | 8x0.25 | 8.3 | 90 |
| 930 CY.P | 9x0.25 | 8.7 | 99 |
| 930 CY.P | 10x0.25 | 9.2 | 109 |
| 930 CY.P | 12x0.25 | 10.7 | 134 |
| 930 CY.P | 14x0.25 | 11.6 | 153 |
| 930 CY.P | 16x0.25 | 11.7 | 161 |
| 930 CY.P | 2x0.3 | 5.8 | 47 |
| 930 CY.P | 3x0.3 | 6.2 | 52 |
| 930 CY.P | 4x0.3 | 6.6 | 61 |
| 930 CY.P | 5x0.3 | 7.1 | 69 |
| 930 CY.P | 6x0.3 | 7.6 | 78 |
| 930 CY.P | 7x0.3 | 8.0 | 87 |
| 930 CY.P | 8x0.3 | 8.5 | 96 |
| 930 CY.P | 9x0.3 | 9.0 | 106 |
| 930 CY.P | 10x0.3 | 9.4 | 117 |
| 930 CY.P | 12x0.3 | 11.0 | 145 |
| 930 CY.P | 14x0.3 | 12.0 | 165 |
| 930 CY.P | 16x0.3 | 12.0 | 173 |
| 930 CY.P | 2x0.34 | 5.8 | 48 |
| 930 CY.P | 3x0.34 | 6.2 | 53 |
| 930 CY.P | 4x0.34 | 6.6 | 62 |
| 930 CY.P | 5x0.34 | 7.1 | 71 |
| 930 CY.P | 6x0.34 | 7.6 | 80 |
| 930 CY.P | 7x0.34 | 8.0 | 90 |
| 930 CY.P | 8x0.34 | 8.5 | 99 |
| 930 CY.P | 9x0.34 | 9.0 | 109 |
| 930 CY.P | 10x0.34 | 9.4 | 121 |
| 930 CY.P | 12x0.34 | 11.0 | 149 |
| 930 CY.P | 14x0.34 | 12.0 | 170 |
| 930 CY.P | 16x0.34 | 12.0 | 179 |
| 930 CY.P | 2x0.4 | 6.7 | 59 |
| 930 CY.P | 3x0.4 | 7.0 | 67 |
| 930 CY.P | 4x0.4 | 7.5 | 77 |
| 930 CY.P | 5x0.4 | 8.0 | 89 |
| 930 CY.P | 6x0.4 | 8.7 | 102 |
| 930 CY.P | 7x0.4 | 9.2 | 113 |
| 930 CY.P | 8x0.4 | 9.8 | 126 |
| 930 CY.P | 9x0.4 | 10.4 | 140 |
| 930 CY.P | 10x0.4 | 11.0 | 156 |
| 930 CY.P | 12x0.4 | 12.9 | 191 |
| 930 CY.P | 14x0.4 | 14.1 | 221 |
| 930 CY.P | 16x0.4 | 14.1 | 233 |
| 930 CY.P | 2x0.5 | 7.4 | 73 |
| 930 CY.P | 3x0.5 | 7.8 | 83 |
| 930 CY.P | 4x0.5 | 8.4 | 97 |
| 930 CY.P | 5x0.5 | 9.0 | 112 |
| 930 CY.P | 6x0.5 | 9.7 | 127 |
| 930 CY.P | 7x0.5 | 10.4 | 144 |
| 930 CY.P | 8x0.5 | 11.1 | 160 |
| 930 CY.P | 9x0.5 | 11.8 | 178 |
| 930 CY.P | 10x0.5 | 12.5 | 199 |
| 930 CY.P | 12x0.5 | 14.8 | 246 |
| 930 CY.P | 14x0.5 | 16.2 | 284 |
| 930 CY.P | 16x0.5 | 16.2 | 301 |
| 930 CY.P | 2x0.75 | 7.9 | 85 |
| 930 CY.P | 3x0.75 | 8.3 | 98 |
| 930 CY.P | 4x0.75 | 9.0 | 115 |
| 930 CY.P | 5x0.75 | 9.7 | 134 |
| 930 CY.P | 6x0.75 | 10.5 | 154 |
| 930 CY.P | 7x0.75 | 11.2 | 173 |
| 930 CY.P | 8x0.75 | 12.0 | 195 |
| 930 CY.P | 9x0.75 | 12.7 | 217 |
| 930 CY.P | 10x0.75 | 13.5 | 242 |
| 930 CY.P | 12x0.75 | 16.0 | 301 |
| 930 CY.P | 14x0.75 | 17.6 | 347 |
| 930 CY.P | 16x0.75 | 17.6 | 369 |
| 930 CY.P | 2x1.0 | 9.3 | 114 |
| 930 CY.P | 3x1.0 | 9.7 | 131 |
| 930 CY.P | 4x1.0 | 10.6 | 156 |
| 930 CY.P | 5x1.0 | 11.5 | 182 |
| 930 CY.P | 6x1.0 | 12.6 | 211 |
| 930 CY.P | 7x1.0 | 13.4 | 239 |
| 930 CY.P | 8x1.0 | 14.4 | 268 |
| 930 CY.P | 9x1.0 | 15.4 | 301 |
| 930 CY.P | 10x1.0 | 16.2 | 337 |
| 930 CY.P | 2x1.5 | 9.8 | 134 |
| 930 CY.P | 3x1.5 | 10.4 | 156 |
| 930 CY.P | 4x1.5 | 11.3 | 186 |
| 930 CY.P | 5x1.5 | 12.3 | 219 |
| 930 CY.P | 6x1.5 | 13.3 | 254 |
| 930 CY.P | 7x1.5 | 14.4 | 289 |
| 930 CY.P | 8x1.5 | 15.4 | 325 |
| 930 CY.P | 9x1.5 | 16.5 | 364 |
| 930 CY.P | 10x1.5 | 17.5 | 410 |
| 930 CY.P | 2x2.5 | 12.0 | 202 |
| 930 CY.P | 3x2.5 | 12.7 | 238 |
| 930 CY.P | 4x2.5 | 13.9 | 287 |
| 930 CY.P | 5x2.5 | 15.2 | 341 |
| 930 CY.P | 6x2.5 | 16.6 | 397 |
| 930 CY.P | 7x2.5 | 18.0 | 454 |
| 930 CY.P | 8x2.5 | 19.4 | 513 |
| 930 CY.P | 9x2.5 | 20.7 | 578 |
| 930 CY.P | 10x2.5 | 22.1 | 651 |
| 930 CY.P | 2x4.0 | 13.5 | 264 |
| 930 CY.P | 3x4.0 | 14.3 | 314 |
| 930 CY.P | 4x4.0 | 15.7 | 383 |
| 930 CY.P | 5x4.0 | 16.9 | 456 |
| 930 CY.P | 6x4.0 | 18.8 | 535 |
-
Production Processes Of Rubber cable
To ensure superior durability, JOCA manufactures heavy-duty rubber cables using advanced Continuous Vulcanization (CV) technology. Specifically, this automated workflow integrates fine copper stranding, rubber insulation extrusion, and precise curing. In addition, the line applies high-quality EPR insulation and a robust PCP (Neoprene) outer sheath to resist harsh environments. Moreover, our quality control team actively conducts oil immersion and flexibility tests on every batch. Consequently, this rigorous process guarantees that our cables strictly meet IEC 60245 and EN 50525 standards.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
Q: Primary Application (Why choose the 930 Series)?
A: The “Speed King” for Linear Motors.
Positioning: The ultimate Double-Sheathed PUR Cable designed for Ultra-High-Speed automation.
Target: Specifically engineered for Linear Motor Drives, Fast Pick-and-Place Robots, and machinery requiring travel speeds up to 10 m/s.
Key Differentiator: If your machine moves faster than 5 m/s, the 930 CY.P provides the necessary mechanical stability that standard cables lack.
Q: Internal Structure (The Secret to Speed)?
A: Double-Sheathed Stabilization.
Inner Jacket: A pressure-extruded High-Strength PVC Inner Sheath locks the twisted Class 6 conductors in place, preventing core disintegration under high G-forces.
Shield: The braid sits on the smooth inner jacket, protecting the insulation from abrasion.
Outer Jacket: Tear-Resistant PUR armor.
Result: This multi-layer design allows the cable to withstand rapid acceleration without deforming.
Q: Maximum Travel Speed?
A: 10 m/s (Extreme Dynamics).
Capability: Rated for continuous gliding speeds of up to 10 m/s.
Acceleration: Capable of handling extreme acceleration/deceleration curves found in modern SMT (Surface Mount Technology) and laser cutting machines.
Q:Service Life (Bending Cycles)?
A: ≥10 Million High-Velocity Cycles.
Rating: Tested to withstand over 10 Million Bending Cycles even at high speeds.
Reliability: While other cables might last 10 million cycles at slow speeds, the 930 CY.P maintains this lifespan under high dynamic load, ensuring 24/7 reliability.
Q: Harsh Environment & Outdoor?
A: All-Weather PUR Protection.
Chemical: The PUR Outer Sheath is immune to cutting fluids, mineral oils, acids, and alkalis.
Outdoor: Naturally UV-Resistant and weather-proof.
Temp: Remains flexible from -40°C (Arctic) to +90°C, making it perfect for outdoor gantry cranes or cold chain automation.
Q: EMI Protection?
A: Stable Signal at High Speed.
Structure: Features a Tinned Copper Braid Shield.
Benefit: Ensures EMC Compliance for sensitive servo feedback systems. The inner jacket isolates the shield, preventing “shield noise” caused by internal friction during rapid movement.
Q: Minimum Bending Radius?
A: Compact & Flexible.
Mobile (Drag Chain): 8 x D (Cable Diameter).
Fixed: 6 x D.
Engineering Note: Despite having two jackets (Double Sheath), the use of Class 6 Extra-Fine Conductors ensures the cable remains flexible enough for compact energy chains.
Q : Voltage Ratings?
A: Tailored for Power & Control.
Low Voltage: 300/300V or 300/500V for signal/control cores.
High Voltage: 450/750V for power cores (depending on cross-section).
Tip: Please consult the spec sheet to match the correct voltage rating to your servo drive requirements.
