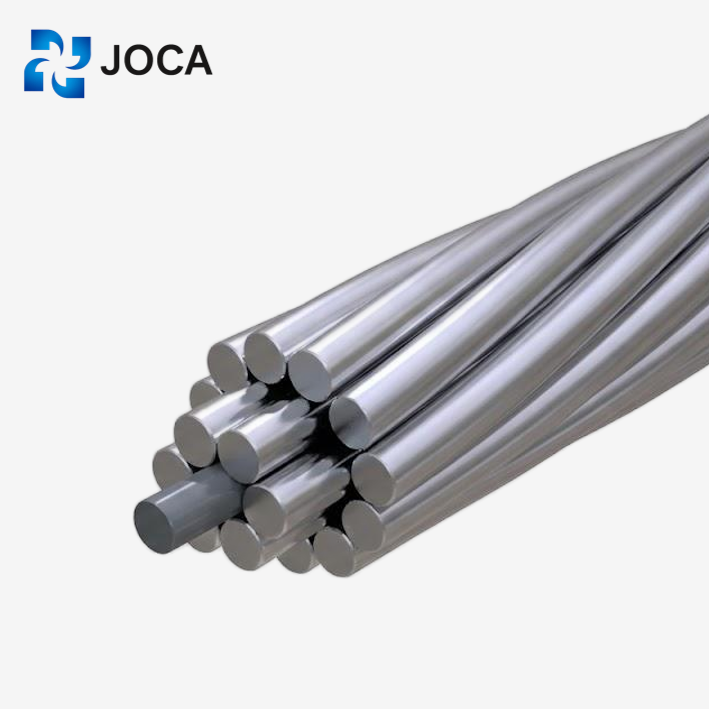

AACSR Conductor – Aluminum Alloy Conductor Steel Reinforced
AACSR Conductor for Overhead Transmission Lines
AACSR conductors are widely used for overhead transmission and distribution lines, especially in environments requiring:
Long spans (river crossings, mountainous areas)
High mechanical loads
Lightweight conductor with strong tensile capability
- Corrosion-resistant installations
- These conductors are particularly suitable for long-span transmission networks and harsh outdoor conditions.
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
AACSR Conductor : Product Description and Specifications
The AACSR (Aluminum Alloy Conductor Steel Reinforced) is engineered for environments that demand more than what standard ACSR can provide. By stranding Al-Mg-Si (Aluminum-Magnesium-Silicon) alloy wires around a high-strength galvanized or aluminum-clad steel core, we’ve created a conductor with a massive strength-to-weight ratio. This specific alloy combination doesn’t just conduct; it adds a layer of mechanical toughness that allows the cable to withstand high-tension spans and severe weather without compromising electrical efficiency. Whether your project involves river crossings or heavy-snow regions, the AACSR provides the extra “backbone” needed for long-term grid stability.
-
Advantages
AACSR Conductor : Benefits and Features
Tension Mastery: Al-Mg-Si alloy paired with high-tensile steel supports river crossings and long-span tower grids.
Sag Stability: High-strength alloy layers minimize mechanical sag under heavy ice and high wind loads.
Core Customization: Available with Class A/B/C galvanization or Aluminum-Clad (AW) steel to match regional corrosion specs.
Tower Savings: High strength-to-weight ratio reduces tower loads and expands span distances.
Harsh Environment Guard: Optional grease filling blocks oxidation in volatile coastal or industrial zones.
Grid Efficiency: Precision-stranded alloy ensures low line losses for long-distance transmission.
Specification Of AACSR Conductor
| Category | Item | Details |
|---|---|---|
| Construction | Definition | AACSR is a concentrically stranded conductor composed of one or more layers of Aluminium -Magnesium -Silicon Alloy wire stranded around a high strength coated steel core. |
| Construction | Core Structure | The core can be of either single wire or stranded multi wire. |
| Construction | Core Material Options | AACSR is available with steel core of Class A, B or C galvanizing or Aluminium clad (AW). |
| Construction | Corrosion Protection | Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease. |
| Construction | Packaging | Conductor are supplied on Non returnable wooden / steel reels or Returnable steel reels. |
| Standards | ASTM | ASTM B711 CONDUCTOR SIZES |
| Standards | IEC Group 1 | IEC Sizes IEC 61089 Standard A2/S1A A2/S3A |
| Standards | IEC Group 2 | IEC Sizes IEC 61089 Standard A3/S1A A3/S3A |
| Standards | DIN | AACSR-DIN Standard |
| Standards | French | FRENCH CONDUCTOR SIZES: Equal steel and Aluminum wire diameter, Non-equal steel and aluminum wire diameter |
Dimensions/Parameters
| Conductor Area (mm2) | Alloy Area (mm2) | Steel Area (mm2) | No. of Alloy Wires | Dia of Alloy Wire (mm) | No. of Steel Wires | Dia of Steel Wire (mm) | Dia of Conductor (mm) | Linear Weight (Kg/km) | Rated Strength (daN) | Maximum DC Resistance at 20°C (Ohm/km) |
|---|---|---|---|---|---|---|---|---|---|---|
| 163 | 140 | 23 | 26 | 2.62 | 7 | 2.04 | 16.6 | 560 | 7500 | 0.240 |
| 173 | 140 | 33 | 30 | 2.44 | 7 | 2.44 | 17.1 | 650 | 8740 | 0.240 |
| 186 | 160 | 26 | 26 | 2.80 | 7 | 2.18 | 17.7 | 645 | 8560 | 0.210 |
| 198 | 160 | 38 | 30 | 2.61 | 7 | 2.61 | 18.3 | 740 | 10600 | 0.210 |
| 209 | 180 | 29 | 26 | 2.97 | 7 | 2.31 | 18.8 | 725 | 9510 | 0.187 |
| 222 | 180 | 42 | 30 | 2.76 | 7 | 2.76 | 19.3 | 825 | 11200 | 0.187 |
| 232 | 200 | 32 | 26 | 3.13 | 7 | 2.43 | 19.8 | 800 | 10600 | 0.168 |
| 247 | 200 | 47 | 30 | 2.91 | 7 | 2.91 | 20.4 | 920 | 12400 | 0.168 |
| 260 | 224 | 36 | 26 | 3.31 | 7 | 2.57 | 21.0 | 900 | 11800 | 0.150 |
| 276 | 224 | 52 | 30 | 3.08 | 7 | 3.08 | 21.6 | 1025 | 13900 | 0.150 |
| 291 | 250 | 41 | 26 | 3.50 | 7 | 2.72 | 22.2 | 1010 | 12900 | 0.135 |
| 308 | 250 | 58 | 30 | 3.26 | 7 | 3.26 | 22.8 | 1145 | 15600 | 0.135 |
| 326 | 280 | 46 | 26 | 3.70 | 7 | 2.88 | 23.4 | 1140 | 14400 | 0.120 |
| 345 | 280 | 65 | 30 | 3.45 | 7 | 3.45 | 24.2 | 1280 | 17100 | 0.120 |
| 367 | 315 | 52 | 26 | 3.93 | 7 | 3.06 | 24.9 | 1276 | 16300 | 0.107 |
| 387 | 315 | 72 | 30 | 3.66 | 19 | 2.20 | 25.6 | 1433 | 19000 | 0.107 |
| 413 | 355 | 58 | 26 | 4.17 | 7 | 3.24 | 26.4 | 1433 | 18300 | 0.0950 |
| 436 | 355 | 81 | 30 | 3.88 | 19 | 2.33 | 27.2 | 1614 | 21100 | 0.0950 |
| 465 | 400 | 65 | 26 | 4.43 | 7 | 3.45 | 28.1 | 1612 | 20700 | 0.0842 |
| 491 | 400 | 91 | 30 | 4.12 | 19 | 2.47 | 28.8 | 1816 | 23700 | 0.0842 |
| 509 | 450 | 59 | 54 | 3.26 | 19 | 1.96 | 29.5 | 1703 | 21500 | 0.0748 |
| 563 | 500 | 63 | 54 | 3.43 | 19 | 2.06 | 30.9 | 1873 | 22900 | 0.0673 |
| 631 | 560 | 71 | 54 | 3.63 | 19 | 2.18 | 32.7 | 2101 | 25700 | 0.0601 |
| 710 | 630 | 80 | 54 | 3.85 | 19 | 2.31 | 34.6 | 2365 | 28600 | 0.0534 |
| 800 | 710 | 90 | 54 | 4.09 | 19 | 2.45 | 36.8 | 2665 | 32200 | 0.0474 |
| 901 | 800 | 101 | 54 | 4.34 | 19 | 2.60 | 39.0 | 3000 | 36300 | 0.0420 |
| 973 | 900 | 73 | 84 | 3.69 | 19 | 2.21 | 40.6 | 3062 | 35500 | 0.0374 |
| 1081 | 1000 | 81 | 84 | 3.89 | 19 | 2.33 | 42.8 | 3395 | 39100 | 0.0337 |
| 1211 | 1120 | 91 | 84 | 4.12 | 19 | 2.47 | 45.3 | 3803 | 43900 | 0.0300 |
| 1352 | 1250 | 102 | 84 | 4.35 | 19 | 2.61 | 47.8 | 4250 | 49000 | 0.0270 |
| Code Word | Stranding Aluminium (mm) | Stranding Steel (mm) | Diameter (mm) | Area Aluminium (mm2) | Area Steel (mm2) | Total Area (mm2) | Weight (kg/km) | Load kN (A2/S1A / A2/S3A) | D.A. Resistance (ohm/km) |
|---|---|---|---|---|---|---|---|---|---|
| 16 | 6/1.98 | 1/1.98 | 5.93 | 18.4 | 3.07 | 21.5 | 74.4 | 9.02/9.88 | 1.7934 |
| 25 | 6/2.47 | 1/2.47 | 7.41 | 28.8 | 4.80 | 33.6 | 116.2 | 13.96/15.25 | 1.1478 |
| 40 | 6/3.13 | 1/3.13 | 9.38 | 46.0 | 7.67 | 53.7 | 185.9 | 22.02/24.17 | 0.7174 |
| 63 | 6/3.92 | 1/3.92 | 11.80 | 72.5 | 12.10 | 84.6 | 292.8 | 34.68/37.58 | 0.4555 |
| 100 | 18/2.85 | 1/2.85 | 14.30 | 115.0 | 6.39 | 121.0 | 366.4 | 41.24/42.97 | 0.2880 |
| 125 | 18/3.19 | 1/3.19 | 16.00 | 144.0 | 7.99 | 152.0 | 458.0 | 51.23/53.47 | 0.2304 |
| 125 | 26/2.65 | 7/2.06 | 16.80 | 144.0 | 23.40 | 167.0 | 579.9 | 69.86/76.42 | 0.2310 |
| 160 | 18/3.61 | 1/3.61 | 18.00 | 184.0 | 10.20 | 294.0 | 586.2 | 65.58/68.03 | 0.1800 |
| 160 | 26/3.00 | 7/2.34 | 19.00 | 184.0 | 30.00 | 214.0 | 742.3 | 88.52/96.61 | 11.805 |
| 200 | 18/4.04 | 1/4.04 | 20.20 | 230.0 | 12.80 | 243.0 | 732.8 | 81.97/85.04 | 0.1440 |
| 200 | 26/3.36 | 7/2.61 | 21.30 | 230.0 | 37.50 | 268.0 | 927.9 | 110.64/120.77 | 0.1444 |
| 250 | 22/4.08 | 7/2.27 | 23.10 | 288.0 | 28.30 | 316.0 | 1013.5 | 117.09/124.72 | 0.1154 |
| 250 | 26/3.75 | 7/2.92 | 23.80 | 288.0 | 46.90 | 335.0 | 1159.8 | 138.31/150.96 | 0.1155 |
| 315 | 45/3.20 | 7/2.14 | 25.60 | 363.0 | 25.10 | 388.0 | 1196.5 | 136.28/143.30 | 0.0917 |
| 315 | 26/4.21 | 7/3.28 | 26.70 | 363.0 | 59.00 | 422.0 | 1461.4 | 171.90/188.44 | 0.0917 |
| 400 | 45/3.61 | 7/2.41 | 28.90 | 460.0 | 31.80 | 492.0 | 1519.4 | 172.10/180.36 | 0.0722 |
| 400 | 54/3.29 | 7/3.29 | 29.70 | 460.0 | 59.70 | 520.0 | 1738.3 | 201.46/218.17 | 0.0723 |
| 450 | 45/3.83 | 7/2.55 | 30.60 | 518.0 | 35.80 | 554.0 | 1709.3 | 193.61/203.28 | 0.0642 |
| 450 | 54/3.49 | 7/3.49 | 31.50 | 518.0 | 67.10 | 585.0 | 1955.6 | 226.64/245.44 | 0.0643 |
| 500 | 45/4.04 | 7/2.69 | 32.30 | 575.0 | 39.80 | 615.0 | 1899.3 | 215.12/225.86 | 0.0578 |
| 500 | 54/3.68 | 7/3.68 | 33.20 | 575.0 | 74.60 | 650.0 | 2172.9 | 251.82/269.73 | 0.0578 |
| 560 | 45/4.27 | 7/2.85 | 34.20 | 645.0 | 44.60 | 690.0 | 2127.2 | 240.93/252.97 | 0.0516 |
| 560 | 54/3.90 | 19/2.34 | 35.10 | 645.0 | 81.60 | 727.0 | 2420.9 | 283.21/305.25 | 0.0516 |
| 630 | 72/3.58 | 7/2.39 | 35.80 | 725.0 | 31.30 | 756.0 | 2248.0 | 249.62/258.08 | 0.0459 |
| 630 | 54/4.13 | 19/2.48 | 47.20 | 725.0 | 91.80 | 817.0 | 2723.5 | 318.61/343.40 | 0.0459 |
| 710 | 72/3.80 | 7/2.53 | 38.00 | 817.0 | 35.30 | 852.0 | 2533.4 | 281.32/290.85 | 0.0407 |
| 710 | 54/4.39 | 19/2.63 | 39.50 | 817.0 | 104.00 | 921.0 | 3069.4 | 359.06/387.01 | 0.0407 |
| 800 | 72/4.04 | 7/2.69 | 40.40 | 921.0 | 39.80 | 961.0 | 2854.6 | 316.98/327.72 | 0.0361 |
| 800 | 84/3.74 | 7/3.74 | 41.10 | 921.0 | 76.70 | 998.0 | 3145.1 | 356.03/374.44 | 0.0362 |
| 900 | 72/4.28 | 7/2.85 | 42.80 | 1036.0 | 44.80 | 1081.0 | 3211.4 | 356.60/368.69 | 0.0321 |
| 900 | 84/3.96 | 7/3.96 | 43.60 | 1036.0 | 86.30 | 1122.0 | 3538.3 | 400.53/421.25 | 0.0322 |
| 1000 | 84/4.28 | 19/2.51 | 45.90 | 1151.0 | 93.70 | 1245.0 | 3916.8 | 446.37/471.67 | 0.0289 |
| 1120 | 84/4.42 | 19/2.65 | 48.60 | 1289.0 | 105.00 | 1394.0 | 4386.8 | 449.93/528.27 | 0.0258 |
| Code Word | Stranding Aluminium (mm) | Stranding Steel (mm) | Diameter (mm) | Area Aluminium (mm2) | Area Steel (mm2) | Total Area (mm2) | Weight (kg/km) | Load kN (A2/S1A / A2/S3A) | D.A. Resistance (ohm/km) |
|---|---|---|---|---|---|---|---|---|---|
| 16 | 6/1.98 | 1/1.98 | 5.93 | 18.4 | 3.07 | 21.5 | 74.4 | 9.02/9.88 | 1.7934 |
| 25 | 6/2.47 | 1/2.47 | 7.41 | 28.8 | 4.80 | 33.6 | 116.2 | 13.96/15.25 | 1.1478 |
| 40 | 6/3.13 | 1/3.13 | 9.38 | 46.0 | 7.67 | 53.7 | 185.9 | 22.02/24.17 | 0.7174 |
| 63 | 6/3.92 | 1/3.92 | 11.80 | 72.5 | 12.10 | 84.6 | 292.8 | 34.68/37.58 | 0.4555 |
| 100 | 18/2.85 | 1/2.85 | 14.30 | 115.0 | 6.39 | 121.0 | 366.4 | 41.24/42.97 | 0.2880 |
| 125 | 18/3.19 | 1/3.19 | 16.00 | 144.0 | 7.99 | 152.0 | 458.0 | 51.23/53.47 | 0.2304 |
| 125 | 26/2.65 | 7/2.06 | 16.80 | 144.0 | 23.40 | 167.0 | 579.9 | 69.86/76.42 | 0.2310 |
| 160 | 18/3.61 | 1/3.61 | 18.00 | 184.0 | 10.20 | 294.0 | 586.2 | 65.58/68.03 | 0.1800 |
| 160 | 26/3.00 | 7/2.34 | 19.00 | 184.0 | 30.00 | 214.0 | 742.3 | 88.52/96.61 | 11.805 |
| 200 | 18/4.04 | 1/4.04 | 20.20 | 230.0 | 12.80 | 243.0 | 732.8 | 81.97/85.04 | 0.1440 |
| 200 | 26/3.36 | 7/2.61 | 21.30 | 230.0 | 37.50 | 268.0 | 927.9 | 110.64/120.77 | 0.1444 |
| 250 | 22/4.08 | 7/2.27 | 23.10 | 288.0 | 28.30 | 316.0 | 1013.5 | 117.09/124.72 | 0.1154 |
| 250 | 26/3.75 | 7/2.92 | 23.80 | 288.0 | 46.90 | 335.0 | 1159.8 | 138.31/150.96 | 0.1155 |
| 315 | 45/3.20 | 7/2.14 | 25.60 | 363.0 | 25.10 | 388.0 | 1196.5 | 136.28/143.30 | 0.0917 |
| 315 | 26/4.21 | 7/3.28 | 26.70 | 363.0 | 59.00 | 422.0 | 1461.4 | 171.90/188.44 | 0.0917 |
| 400 | 45/3.61 | 7/2.41 | 28.90 | 460.0 | 31.80 | 492.0 | 1519.4 | 172.10/180.36 | 0.0722 |
| 400 | 54/3.29 | 7/3.29 | 29.70 | 460.0 | 59.70 | 520.0 | 1738.3 | 201.46/218.17 | 0.0723 |
| 450 | 45/3.83 | 7/2.55 | 30.60 | 518.0 | 35.80 | 554.0 | 1709.3 | 193.61/203.28 | 0.0642 |
| 450 | 54/3.49 | 7/3.49 | 31.50 | 518.0 | 67.10 | 585.0 | 1955.6 | 226.64/245.44 | 0.0643 |
| 500 | 45/4.04 | 7/2.69 | 32.30 | 575.0 | 39.80 | 615.0 | 1899.3 | 215.12/225.86 | 0.0578 |
| 500 | 54/3.68 | 7/3.68 | 33.20 | 575.0 | 74.60 | 650.0 | 2172.9 | 251.82/269.73 | 0.0578 |
| 560 | 45/4.27 | 7/2.85 | 34.20 | 645.0 | 44.60 | 690.0 | 2127.2 | 240.93/252.97 | 0.0516 |
| 560 | 54/3.90 | 19/2.34 | 35.10 | 645.0 | 81.60 | 727.0 | 2420.9 | 283.21/305.25 | 0.0516 |
| 630 | 72/3.58 | 7/2.39 | 35.80 | 725.0 | 31.30 | 756.0 | 2248.0 | 249.62/258.08 | 0.0459 |
| 630 | 54/4.13 | 19/2.48 | 47.20 | 725.0 | 91.80 | 817.0 | 2723.5 | 318.61/343.40 | 0.0459 |
| 710 | 72/3.80 | 7/2.53 | 38.00 | 817.0 | 35.30 | 852.0 | 2533.4 | 281.32/290.85 | 0.0407 |
| 710 | 54/4.39 | 19/2.63 | 39.50 | 817.0 | 104.00 | 921.0 | 3069.4 | 359.06/387.01 | 0.0407 |
| 800 | 72/4.04 | 7/2.69 | 40.40 | 921.0 | 39.80 | 961.0 | 2854.6 | 316.98/327.72 | 0.0361 |
| 800 | 84/3.74 | 7/3.74 | 41.10 | 921.0 | 76.70 | 998.0 | 3145.1 | 356.03/374.44 | 0.0362 |
| 900 | 72/4.28 | 7/2.85 | 42.80 | 1036.0 | 44.80 | 1081.0 | 3211.4 | 356.60/368.69 | 0.0321 |
| 900 | 84/3.96 | 7/3.96 | 43.60 | 1036.0 | 86.30 | 1122.0 | 3538.3 | 400.53/421.25 | 0.0322 |
| 1000 | 84/4.28 | 19/2.51 | 45.90 | 1151.0 | 93.70 | 1245.0 | 3916.8 | 446.37/471.67 | 0.0289 |
| 1120 | 84/4.42 | 19/2.65 | 48.60 | 1289.0 | 105.00 | 1394.0 | 4386.8 | 449.93/528.27 | 0.0258 |
| Conductor Area Type | Alloy Area (mm2) | Steel Area (mm2) | No. of Alloy Wires | Dia of Alloy Wire (mm) | Number of Steel Wires | Diameter of Steel Wire (mm) | Diameter of Conductor (mm) | Linear Mass (kg/km) | Nominal Breaking Load (daN) | Maximum DC Resistance at 20°C (Ohm/km) |
|---|---|---|---|---|---|---|---|---|---|---|
| 16/2.5 | 15.27 | 2.54 | 6 | 1.8 | 1 | 1.8 | 5.4 | 62 | 748 | 2.18 |
| 25/4 | 23.86 | 3.98 | 6 | 2.25 | 1 | 2.28 | 6.8 | 97 | 1171 | 1.3952 |
| 35/6 | 34.35 | 5.73 | 6 | 2.7 | 1 | 2.7 | 8.1 | 140 | 1685 | 0.9689 |
| 44/32 | 43.98 | 31.67 | 14 | 2 | 7 | 2.4 | 11.2 | 373 | 5027 | 0.7625 |
| Aug-50 | 48.25 | 8.04 | 6 | 3.2 | 1 | 3.2 | 9.6 | 196 | 2366 | 0.6898 |
| 50/30 | 51.17 | 29.85 | 12 | 2.33 | 7 | 2.33 | 11.7 | 378 | 5024 | 0.6547 |
| Dec-70 | 69.89 | 11.4 | 26 | 1.85 | 7 | 1.44 | 11.7 | 284 | 3399 | 0.4791 |
| 95/15 | 94.39 | 15.33 | 26 | 2.15 | 7 | 1.67 | 13.6 | 383 | 4582 | 0.3547 |
| 95/55 | 96.51 | 56.3 | 12 | 3.2 | 7 | 3.2 | 16 | 714 | 9475 | 0.3471 |
| 105/75 | 105.67 | 75.55 | 14 | 3.1 | 19 | 2.25 | 17.5 | 899 | 12014 | 0.3174 |
| 120/20 | 121.57 | 19.85 | 26 | 2.44 | 7 | 1.9 | 15.5 | 494 | 5914 | 0.2754 |
| 120/70 | 122.15 | 71.25 | 12 | 3.6 | 7 | 3.6 | 18 | 904 | 11912 | 0.2742 |
| 125/30 | 127.92 | 29.85 | 30 | 2.33 | 7 | 2.33 | 16.3 | 590 | 7280 | 0.2621 |
| 150/25 | 148.86 | 24.25 | 26 | 2.7 | 7 | 2.1 | 17.1 | 604 | 7236 | 0.2249 |
| 170/40 | 171.77 | 40.08 | 30 | 2.7 | 7 | 2.7 | 18.9 | 794 | 9775 | 0.1952 |
| 185/30 | 183.78 | 29.85 | 26 | 3 | 7 | 2.33 | 19 | 744 | 8922 | 0.1822 |
| 210/35 | 209.1 | 34.09 | 26 | 3.2 | 7 | 2.49 | 20.3 | 848 | 10167 | 0.1601 |
| 210/50 | 212.06 | 49.48 | 30 | 3 | 7 | 3 | 21 | 979 | 12068 | 0.1581 |
| 230/30 | 230.91 | 29.85 | 24 | 3.5 | 7 | 2.33 | 21 | 874 | 10308 | 0.1449 |
| 240/40 | 243.05 | 39.49 | 26 | 3.45 | 7 | 2.68 | 21.8 | 985 | 11802 | 0.1378 |
| 265/35 | 263.66 | 34.09 | 24 | 3.74 | 7 | 2.49 | 22.4 | 998 | 11771 | 0.1269 |
| 300/50 | 304.26 | 49.48 | 26 | 3.86 | 7 | 3 | 24.5 | 1233 | 14779 | 0.1101 |
| 305/40 | 304.62 | 39.49 | 54 | 2.68 | 7 | 2.68 | 24.1 | 1155 | 13612 | 0.1101 |
| 340/30 | 339.29 | 29.85 | 48 | 3 | 7 | 2.33 | 25 | 1174 | 13494 | 0.0988 |
| 380/50 | 381.7 | 49.48 | 54 | 3 | 7 | 3 | 27 | 1448 | 17056 | 0.0879 |
| 385/35 | 386.04 | 34.09 | 48 | 3.2 | 7 | 2.49 | 26.7 | 1336 | 15369 | 0.0868 |
| 435/55 | 434.29 | 56.3 | 54 | 3.2 | 7 | 3.2 | 28.8 | 1647 | 19406 | 0.0772 |
| 450/40 | 448.71 | 39.49 | 48 | 3.45 | 7 | 2.68 | 28.7 | 1553 | 17848 | 0.0747 |
| 490/65 | 490.28 | 63.55 | 54 | 3.6 | 7 | 3.4 | 30.6 | 1860 | 21907 | 0.0684 |
| 550/70 | 549.65 | 71.25 | 54 | 3.4 | 7 | 3.6 | 32.4 | 2085 | 24560 | 0.061 |
| 560/50 | 561.7 | 49.48 | 48 | 3.86 | 7 | 3 | 32.2 | 1943 | 22348 | 0.0597 |
| 680/85 | 678.58 | 85.95 | 54 | 4 | 19 | 2.4 | 36 | 2564 | 30084 | 0.0494 |
| Code Name | Nominal Size/Area | Al Alloy Area (mm2) | Steel Wire Area (mm2) | No. Of Al Alloy Wires | No. Of St Wires | Dia of Wire (mm) | Overall Dia of Conductor (mm) | Tens Str of AL Alloy (hbar) | Tens Str of Steel (hbar) | Rated Str of Conductor (daN) | Max DC Resist at 20°C (Ohm/km) | Linear Weight (Kg/km) | Elasticity Mod (hbar) | Coefficient Of Linear Expansion (/°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PHLOX | 37.7 | 28.27 | 9.42 | 9 | 3 | 2.00 | 8.3 | 32.4 | 156.8 | 2360 | 1.17 | 155 | 9300 | 17.0 x 10^-6 |
| PHLOX | 59.7 | 37.70 | 21.99 | 12 | 7 | 2.00 | 10.0 | 32.4 | 156.8 | 4560 | 0.880 | 276 | 10800 | 15.3 x 10^-6 |
| PHLOX | 75.5 | 47.71 | 27.83 | 12 | 7 | 2.25 | 11.25 | 32.4 | 156.8 | 5770 | 0.695 | 348 | 10800 | 15.3 x 10^-6 |
| PHLOX | 116.2 | 56.55 | 59.69 | 18 | 19 | 2.00 | 14.0 | 32.4 | 156.8 | 10815 | 0.580 | 636 | 12400 | 14.2 x 10^-6 |
| PHLOX | 147.1 | 71.57 | 75.54 | 18 | 19 | 2.25 | 15.75 | 32.4 | 156.8 | 13685 | 0.466 | 802 | 12400 | 14.2 x 10^-6 |
| PASTEL | 147.1 | 119.28 | 27.83 | 30 | 7 | 2.25 | 15.75 | 32.4 | 156.8 | 8185 | 0.279 | 547 | 8400 | 18.1 x 10^-6 |
| PHLOX | 181.6 | 88.36 | 93.27 | 18 | 19 | 2.50 | 17.5 | 32.4 | 156.8 | 16895 | 0.378 | 990 | 12400 | 14.2 x 10^-6 |
| PASTEL | 181.6 | 147.26 | 34.36 | 30 | 7 | 2.50 | 17.5 | 32.4 | 156.8 | 10120 | 0.227 | 675 | 8400 | 18.1 x 10^-1 |
| PHLOX | 228 | 110.83 | 116.99 | 18 | 19 | 2.80 | 19.6 | 32.4 | 156.8 | 21200 | 0.300 | 1244 | 12400 | 14.2 x 10^-1 |
| PASTEL | 228 | 184.72 | 43.10 | 30 | 7 | 2.80 | 19.6 | 32.4 | 156.8 | 12680 | 0.180 | 848 | 8400 | 18.1 x 101 |
| PHLOX | 288 | 140.28 | 148.07 | 18 | 19 | 3.15 | 22.05 | 32.4 | 156.8 | 26800 | 0.237 | 1570 | 12400 | 14.2 x 101 |
| PASTEL | 288 | 233.80 | 54.55 | 30 | 7 | 3.15 | 22.05 | 32.4 | 156.8 | 16050 | 0.142 | 1074 | 8400 | 18.0 x 101 |
| PASTEL | 299 | 205.17 | 93.27 | 42 | 19 | 2.50 | 22.5 | 32.4 | 156.8 | 20875 | 0.162 | 1320 | 9650 | 16.3 x 10^-1 |
| PHLOX | 376 | 147.78 | 227.83 | 24 | 37 | 2.80 | 25.2 | 32.4 | 156.8 | 38960 | 0.225 | 2211 | 13000 | 13.5 x 10^-1 |
| Code Name | Nominal Area | Al Alloy Area (mm2) | Steel Area (mm2) | No. & Dia Of Al Alloy Wires | No. & Dia Of Steel Wires | Overall Dia of Conductor (mm) | Tens Str of Al Alloy (hbar) | Tens Str of Steel (hbar) | Rated Str of Conductor (daN) | Max DC Resist at 20°C (Ohm/km) | Linear Weight (Kg/km) | Elast Mod (hbar) | Coefficient Of Linear Expansion (/°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PHLOX | 94.1 | 51.95 | 42.12 | 15 x 2.10 | 19 x 1.68 | 12.8 | 32.4 | 156.8 | 8035 | 0.642 | 481 | 11200 | 14.7 x 10^1 |
| PASTEL | 412 | 325.72 | 85.95 | 32 x 3.60 | 19 x 2.40 | 26.4 | 32.4 | 156.8 | 23830 | 0.103 | 1593 | 8200 | 17.8 x 10^-1 |
| PETUNIA | 612 | 507.80 | 104.79 | 66 x 3.13 | 19 x 2.65 | 32.1 | 32.4 | 156.8 | 32830 | 0.0657 | 2241 | 7750 | 18.6 x 101 |
| PETUNIA | 865 | 717.33 | 148.06 | 66 x 3.72 | 19 x 3.15 | 38.1 | 32.4 | 156.8 | 46000 | 0.0465 | 3174 | 7750 | 18.5 x 101 |
| POLYGONUM | 1185 | 956.66 | 227.82 | 54 x 2.80 / 66 x 3.47 | 37 x 2.80 | 44.7 | 32.4 | 156.8 | 66385 | 0.0349 | 4475 | 7750 | 18.1 x 101 |
-
Production Processes Of Overhead Bare Conductors
JOCA operates a digitalized production line specifically for manufacturing overhead bare conductors. The process flow starts with raw aluminum rod inspection, moving through high-speed wire drawing and precision stranding within a single, data-tracked environment. To prevent defects, we’ve integrated intelligent sensors that monitor the diameter and surface smoothness of every conductor layer in real-time. This automated setup utilizes laser measurement technology to enforce strict adherence to ASTM, IEC, and BS standards. By removing manual variability, the system ensures that every reel of AAC, AAAC, or ACSR maintains consistent tensile strength and stable electrical performance, even under extreme environmental exposure.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
Q: What is the core technical difference between AACSR and ACSR?
A: Material composition is the key. While ACSR uses pure 1350 aluminum, AACSR utilizes Al-Mg-Si alloy. This substitution significantly enhances the conductor’s tensile strength and sag performance, making it a “heavy-duty” alternative to standard ACSR.
Q: When is AACSR preferred over AAAC or standard ACSR?
A: AACSR is the ideal middle ground for extreme spans. It offers more mechanical “muscle” than all-alloy AAAC and better structural stability than ACSR, specifically in regions where long distances between towers are mandatory.
Q: What role does the steel core play in this alloy conductor?
A: The galvanized or aluminum-clad steel acts as the primary tension member. It handles the raw mechanical load, allowing the Al-Mg-Si alloy layers to focus on electrical delivery without stretching or snapping under high tension.
Q: Is grease filling necessary for AACSR?
A: It depends on the installation site. While not mandatory, we recommend grease for coastal or high-pollution industrial zones. It provides a critical oxidation barrier for the steel core, extending the grid’s overall service life.
Q: How does AACSR perform under high thermal loads?
A: It excels in high-temperature scenarios. The Al-Mg-Si alloy offers superior creep resistance compared to pure aluminum, meaning the conductor maintains its ground clearance even during peak summer power demands.
Q: Can I specify an Aluminum-Clad Steel (AW) core for AACSR?
A: Absolutely. We provide AW steel cores for projects requiring maximum corrosion protection. The aluminum-to-aluminum interface between the core and the strands eliminates bi-metallic corrosion risks.
Q: What are the standard packaging options for large projects?
A: We offer a range of reinforced wooden reels and steel drums. Packaging is determined by the conductor’s total weight and the terrain of the job site to ensure safe handling during stringing operations.
Q: How do I request a technical datasheet or bulk quotation?
A: Please submit your project specifications through our “Inquiry” portal or contact our engineering department directly. We provide full sag-tension charts and customized pricing based on your required span distances.
