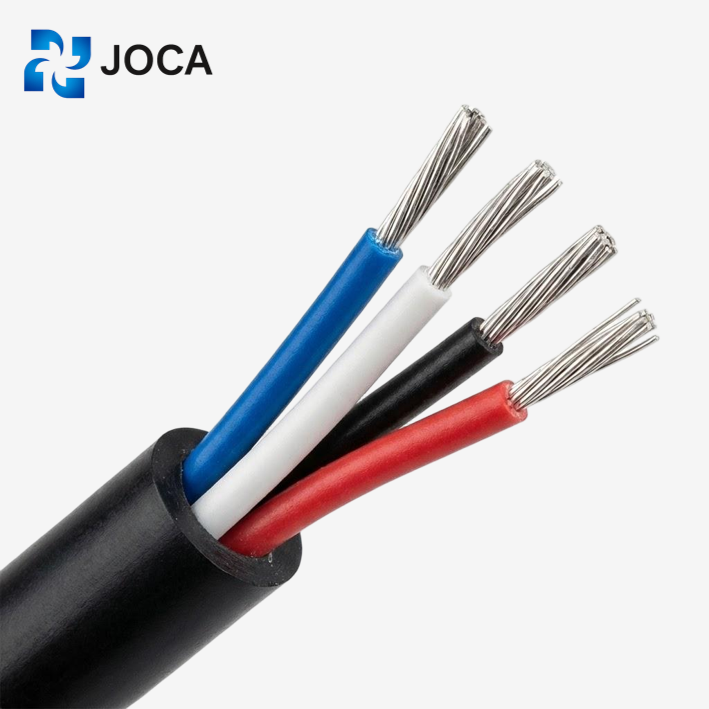

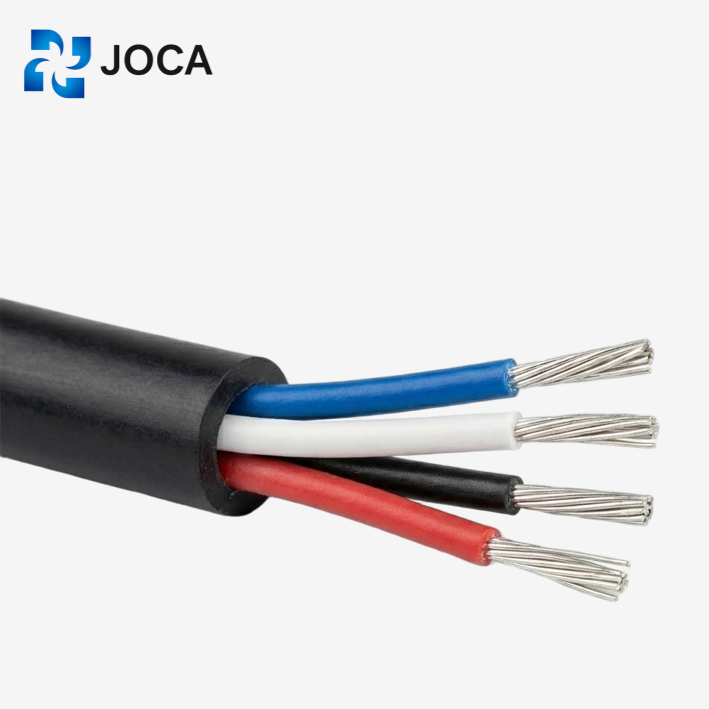

UL2517
PVC Insulated & Jacketed 300V 105°C Hook-Up Wire Cable
Used for computers, electrical equipment, electronic devices, instruments, and internal wiring applications.
Reference Standards: UL758, UL1581.
- Fast Sample Processing with Customized Solutions
- High-Quality Materials
- Affordable Price Options
- Global Delivery
- For better data protection, make sure that all uploads are secure
Save at least 30% on average
-
Product Description
UL2517 : Product Description and Specifications
The UL2517 is engineered specifically for instrumentation environments requiring higher thermal endurance than standard data cables. Rated for continuous operation at 105°C, it addresses the heat accumulation often found in compact control housings, medical devices, and high-density industrial panels. Unlike lower-rated alternatives, the insulation maintains its physical integrity without softening or deforming under sustained thermal stress.
Structurally, the cable utilizes a “Dual-PVC” protection system. The heat-resistant inner insulation secures the conductors, while the rugged outer PVC jacket guards against mechanical pinching and abrasion during installation. For applications requiring high signal fidelity, the optional Aluminum Foil and Tinned Copper Braid shielding creates an effective barrier against EMI, ensuring precise data transmission even in electrically noisy factory settings.
-
Advantages
UL2517 : Benefits and Features
105°C Rating: Withstands heat accumulation in sealed enclosures where standard 80°C wire fails.
EMI Defense: Optional Foil + Braid shielding creates a Faraday cage to block industrial signal noise.
Mechanical Armor: The smooth, tough outer jacket resists abrasion and snagging during installation.
Safety Verified: Fully compliant with VW-1 flame test standards for internal fire safety.
Wide Range: Available from 30 AWG to 2 AWG for both signal and power applications.
Specification Of UL2517
| Category | Value |
|---|---|
| Application Scope | Used for internal wiring of computers, electrical appliances, electronic equipment, instruments, meters, etc. |
| Application Standards | UL758, UL1581 |
| Conductor | Uses 30~2AWG single or stranded bare copper wire or tinned copper wire |
| Insulation | 105°C heat-resistant PVC compound |
| Core Color | Any color |
| Jacket | 105°C heat-resistant PVC compound |
| Jacket Color | Any color |
| Rated Voltage | 300V |
| Test Voltage | 2000V |
| Temperature Range (Fixed) | -20°C-105°C |
| Temperature Range (Mobile) | -5°C-105°C |
| Bending Radius (Fixed) | 6xD |
| Bending Radius (Mobile) | 8xD |
| Flammability Test | Passes UL VW-1 and CSA FT1 vertical flame tests |
Dimensions/Parameters
| Model No. | Specification | Approx. Outer Diameter (mm) | Approx. Cable Weight (kg/km) |
|---|---|---|---|
| UL2517 | 2x16AWG | 6.1 | 63.0 |
| UL2517 | 3x16AWG | 6.5 | 77.7 |
| UL2517 | 4x16AWG | 7.0 | 96.7 |
| UL2517 | 5x16AWG | 7.7 | 115.2 |
| UL2517 | 6x16AWG | 8.4 | 135.8 |
| UL2517 | 7x16AWG | 8.4 | 148.7 |
| UL2517 | 8x16AWG | 9.4 | 178.4 |
| UL2517 | 9x16AWG | 10.5 | 206.6 |
| UL2517 | 10x16AWG | 11.2 | 231.5 |
| UL2517 | 11x16AWG | 11.6 | 249.6 |
| UL2517 | 12x16AWG | 11.6 | 258.3 |
| UL2517 | 13x16AWG | 12.4 | 289.6 |
| UL2517 | 14x16AWG | 12.4 | 298.6 |
| UL2517 | 15x16AWG | 13.0 | 324.5 |
| UL2517 | 16x16AWG | 13.0 | 336.5 |
| UL2517 | 17x16AWG | 13.9 | 367.2 |
| UL2517 | 18x16AWG | 13.9 | 379.3 |
| UL2517 | 19x16AWG | 13.9 | 392.2 |
| UL2517 | 2x26AWG | 4.1 | 21.6 |
| UL2517 | 3x26AWG | 4.3 | 24.5 |
| UL2517 | 4x26AWG | 4.6 | 28.6 |
| UL2517 | 5x26AWG | 5.0 | 33.5 |
| UL2517 | 6x26AWG | 5.3 | 38.6 |
| UL2517 | 7x26AWG | 5.3 | 40.3 |
| UL2517 | 8x26AWG | 5.7 | 45.3 |
| UL2517 | 9x26AWG | 6.2 | 52.0 |
| UL2517 | 10x26AWG | 6.6 | 58.2 |
| UL2517 | 11x26AWG | 6.8 | 60.2 |
| UL2517 | 12x26AWG | 6.8 | 61.9 |
| UL2517 | 13x26AWG | 7.1 | 67.2 |
| UL2517 | 14x26AWG | 7.1 | 68.9 |
| UL2517 | 15x26AWG | 7.4 | 75.6 |
| UL2517 | 16x26AWG | 7.4 | 77.4 |
| UL2517 | 17x26AWG | 7.8 | 83.3 |
| UL2517 | 18x26AWG | 7.8 | 85.0 |
| UL2517 | 19x26AWG | 7.8 | 86.5 |
| UL2517 | 2x24AWG | 4.3 | 25.2 |
| UL2517 | 3x24AWG | 4.5 | 29.0 |
| UL2517 | 4x24AWG | 4.9 | 34.2 |
| UL2517 | 5x24AWG | 5.3 | 40.9 |
| UL2517 | 6x24AWG | 5.7 | 47.1 |
| UL2517 | 7x24AWG | 5.7 | 50.4 |
| UL2517 | 8x24AWG | 6.1 | 56.6 |
| UL2517 | 9x24AWG | 6.7 | 64.5 |
| UL2517 | 10x24AWG | 7.1 | 68.6 |
| UL2517 | 11x24AWG | 7.3 | 74.2 |
| UL2517 | 12x24AWG | 7.3 | 76.6 |
| UL2517 | 13x24AWG | 7.6 | 83.2 |
| UL2517 | 14x24AWG | 7.6 | 85.7 |
| UL2517 | 15x24AWG | 8.0 | 93.8 |
| UL2517 | 16x24AWG | 8.0 | 96.3 |
| UL2517 | 17x24AWG | 8.4 | 103.9 |
| UL2517 | 18x24AWG | 8.4 | 106.4 |
| UL2517 | 19x24AWG | 8.4 | 108.6 |
| UL2517 | 2x22AWG | 4.6 | 30.1 |
| UL2517 | 3x22AWG | 4.9 | 35.2 |
| UL2517 | 4x22AWG | 5.3 | 43.4 |
| UL2517 | 5x22AWG | 5.7 | 51.1 |
| UL2517 | 6x22AWG | 6.2 | 56.2 |
| UL2517 | 7x22AWG | 6.2 | 63.0 |
| UL2517 | 8x22AWG | 6.6 | 70.9 |
| UL2517 | 9x22AWG | 7.2 | 80.9 |
| UL2517 | 10x22AWG | 7.7 | 86.3 |
| UL2517 | 11x22AWG | 7.9 | 93.6 |
| UL2517 | 12x22AWG | 7.9 | 97.0 |
| UL2517 | 13x22AWG | 8.3 | 105.6 |
| UL2517 | 14x22AWG | 8.3 | 109.1 |
| UL2517 | 15x22AWG | 9.1 | 127.6 |
| UL2517 | 16x22AWG | 9.1 | 131.2 |
| UL2517 | 17x22AWG | 9.6 | 141.3 |
| UL2517 | 18x22AWG | 9.6 | 144.9 |
| UL2517 | 19x22AWG | 9.6 | 148.0 |
| UL2517 | 2x20AWG | 5.0 | 36.9 |
| UL2517 | 3x20AWG | 5.3 | 43.8 |
| UL2517 | 4x20AWG | 5.7 | 53.3 |
| UL2517 | 5x20AWG | 6.2 | 63.4 |
| UL2517 | 6x20AWG | 6.7 | 73.7 |
| UL2517 | 7x20AWG | 6.7 | 78.8 |
| UL2517 | 8x20AWG | 7.2 | 90.1 |
| UL2517 | 9x20AWG | 7.9 | 101.6 |
| UL2517 | 10x20AWG | 8.4 | 114.8 |
| UL2517 | 11x20AWG | 9.1 | 129.0 |
| UL2517 | 12x20AWG | 9.1 | 134.0 |
| UL2517 | 13x20AWG | 9.5 | 145.6 |
| UL2517 | 14x20AWG | 9.5 | 150.7 |
| UL2517 | 15x20AWG | 10.0 | 164.0 |
| UL2517 | 16x20AWG | 10.0 | 169.2 |
| UL2517 | 17x20AWG | 10.7 | 186.9 |
| UL2517 | 18x20AWG | 10.7 | 192.1 |
| UL2517 | 19x20AWG | 10.7 | 197.3 |
| UL2517 | 2x18AWG | 5.5 | 47.2 |
| UL2517 | 3x18AWG | 5.8 | 57.1 |
| UL2517 | 4x18AWG | 6.3 | 70.0 |
| UL2517 | 5x18AWG | 6.8 | 84.4 |
| UL2517 | 6x18AWG | 7.4 | 96.6 |
| UL2517 | 7x18AWG | 7.4 | 106.0 |
| UL2517 | 8x18AWG | 8.0 | 121.2 |
| UL2517 | 9x18AWG | 9.2 | 145.3 |
| UL2517 | 10x18AWG | 9.8 | 163.4 |
| UL2517 | 11x18AWG | 10.1 | 172.8 |
| UL2517 | 12x18AWG | 10.1 | 180.3 |
| UL2517 | 13x18AWG | 10.6 | 196.1 |
| UL2517 | 14x18AWG | 10.6 | 203.7 |
| UL2517 | 15x18AWG | 11.3 | 227.3 |
| UL2517 | 16x18AWG | 11.3 | 235.1 |
| UL2517 | 17x18AWG | 11.9 | 251.8 |
| UL2517 | 18x18AWG | 11.9 | 259.6 |
| UL2517 | 19x18AWG | 11.9 | 268.0 |
| Model | Specification | Approx. Outer Diameter (mm) | Approx. Cable Weight (kg/km) |
|---|---|---|---|
| UL2517 | 2x16AWG | 6.1 | 63.0 |
| UL2517 | 3x16AWG | 6.5 | 77.7 |
| UL2517 | 4x16AWG | 7.0 | 96.7 |
| UL2517 | 5x16AWG | 7.7 | 115.2 |
| UL2517 | 6x16AWG | 8.4 | 135.8 |
| UL2517 | 7x16AWG | 8.4 | 148.7 |
| UL2517 | 8x16AWG | 9.4 | 178.4 |
| UL2517 | 9x16AWG | 10.5 | 206.6 |
| UL2517 | 10x16AWG | 11.2 | 231.5 |
| UL2517 | 11x16AWG | 11.6 | 249.6 |
| UL2517 | 12x16AWG | 11.6 | 258.3 |
| UL2517 | 13x16AWG | 12.4 | 289.6 |
| UL2517 | 14x16AWG | 12.4 | 298.6 |
| UL2517 | 15x16AWG | 13.0 | 3245 |
| UL2517 | 16x16AWG | 13.0 | 336.5 |
| UL2517 | 17x16AWG | 13.9 | 367.2 |
| UL2517 | 18x16AWG | 13.9 | 379.3 |
| UL2517 | 19x16AWG | 13.9 | 392.2 |
| UL2517 | 11x22AWG | 7.9 | 93.6 |
| UL2517 | 12x22AWG | 7.9 | 97.0 |
| UL2517 | 13x22AWG | 8.3 | 105.6 |
| UL2517 | 14x22AWG | 8.3 | 109.1 |
| UL2517 | 15x22AWG | 9.1 | 127.6 |
| UL2517 | 16x22AWG | 9.1 | 131.2 |
| UL2517 | 17x22AWG | 9.6 | 1413 |
| UL2517 | 18x22AWG | 9.6 | 144.9 |
| UL2517 | 19x22AWG | 9.6 | 148.0 |
| UL2517 | 2x20AWG | 5.0 | 36.9 |
| UL2517 | 3x20AWG | 5.3 | 43.8 |
| UL2517 | 4x20AWG | 5.7 | 53.3 |
| UL2517 | 5x20AWG | 6.2 | 63.4 |
| UL2517 | 6x20AWG | 6.7 | 73.7 |
| UL2517 | 7x20AWG | 6.7 | 78.8 |
| UL2517 | 8x20AWG | 7.2 | 90.1 |
| UL2517 | 9x20AWG | 7.9 | 101.6 |
| UL2517 | 10x20AWG | 8.4 | 114.8 |
| UL2517 | 11x20AWG | 9.1 | 129.0 |
| UL2517 | 12x20AWG | 9.1 | 134.0 |
| UL2517 | 13x20AWG | 9.5 | 145.6 |
| UL2517 | 14x20AWG | 9.5 | 150.7 |
| UL2517 | 15x20AWG | 10.0 | 164.0 |
| UL2517 | 16x20AWG | 10.0 | 169.2 |
| UL2517 | 17x20AWG | 10.7 | 186.9 |
| UL2517 | 18x20AWG | 10.7 | 192.1 |
| UL2517 | 19x20AWG | 10.7 | 197.3 |
| UL2517 | 2x18AWG | 5.5 | 47.2 |
| UL2517 | 3x18AWG | 5.8 | 57.1 |
| UL2517 | 4x18AWG | 6.3 | 70.0 |
| UL2517 | 5x18AWG | 6.8 | 84.4 |
| UL2517 | 6x18AWG | 7.4 | 96.6 |
| UL2517 | 7x18AWG | 7.4 | 106.0 |
| UL2517 | 8x18AWG | 8.0 | 121.2 |
| UL2517 | 9x18AWG | 9.2 | 145.3 |
| UL2517 | 10x18AWG | 9.8 | 163.4 |
| UL2517 | 11x18AWG | 10.1 | 172.8 |
| UL2517 | 12x18AWG | 10.1 | 180.3 |
| UL2517 | 13x18AWG | 10.6 | 196.1 |
| UL2517 | 14x18AWG | 10.6 | 203.7 |
| UL2517 | 15x18AWG | 11.3 | 227.3 |
| UL2517 | 16x18AWG | 11.3 | 235.1 |
| UL2517 | 17x18AWG | 11.9 | 251.8 |
| UL2517 | 18x18AWG | 11.9 | 259.6 |
| UL2517 | 19x18AWG | 11.9 | 268.0 |
| UL2517 | 2x26AWG | 4.1 | 21.6 |
| UL2517 | 3x26AWG | 4.3 | 24.5 |
| UL2517 | 4x26AWG | 4.6 | 28.6 |
| UL2517 | 5x26AWG | 5.0 | 33.5 |
| UL2517 | 6x26AWG | 5.3 | 38.6 |
| UL2517 | 7x26AWG | 5.3 | 40.3 |
| UL2517 | 8x26AWG | 5.7 | 45.3 |
| UL2517 | 9x26AWG | 6.2 | 52.0 |
| UL2517 | 10x26AWG | 6.6 | 58.2 |
| UL2517 | 11x26AWG | 6.8 | 60.2 |
| UL2517 | 12x26AWG | 6.8 | 61.9 |
| UL2517 | 13x26AWG | 7.1 | 67.2 |
| UL2517 | 14x26AWG | 7.1 | 68.9 |
| UL2517 | 15x26AWG | 7.4 | 75.6 |
| UL2517 | 16x26AWG | 7.4 | 77.4 |
| UL2517 | 17x26AWG | 7.8 | 83.3 |
| UL2517 | 18x26AWG | 7.8 | 85.0 |
| UL2517 | 19x26AWG | 7.8 | 86.5 |
| UL2517 | 2x24AWG | 4.3 | 25.2 |
| UL2517 | 3x24AWG | 4.5 | 29.0 |
| UL2517 | 4x24AWG | 4.9 | 34.2 |
| UL2517 | 5x24AWG | 5.3 | 40.9 |
| UL2517 | 6x24AWG | 5.7 | 47.1 |
| UL2517 | 7x24AWG | 5.7 | 50.4 |
| UL2517 | 8x24AWG | 6.1 | 56.6 |
| UL2517 | 9x24AWG | 6.7 | 64.5 |
| UL2517 | 10x24AWG | 7.1 | 68.6 |
| UL2517 | 11x24AWG | 7.3 | 74.2 |
| UL2517 | 12x24AWG | 7.3 | 76.6 |
| UL2517 | 13x24AWG | 7.6 | 83.2 |
| UL2517 | 14x24AWG | 7.6 | 85.7 |
| UL2517 | 15x24AWG | 8.0 | 93.8 |
| UL2517 | 16x24AWG | 8.0 | 96.3 |
| UL2517 | 17x24AWG | 8.4 | 103.9 |
| UL2517 | 18x24AWG | 8.4 | 106.4 |
| UL2517 | 19x24AWG | 8.4 | 108.6 |
| UL2517 | 2x22AWG | 4.6 | 30.1 |
| UL2517 | 3x22AWG | 4.9 | 35.2 |
| UL2517 | 4x22AWG | 5.3 | 43.4 |
| UL2517 | 5x22AWG | 5.7 | 51.1 |
| UL2517 | 6x22AWG | 6.2 | 56.2 |
| UL2517 | 7x22AWG | 6.2 | 63.0 |
| UL2517 | 8x22AWG | 6.6 | 70.9 |
| UL2517 | 9x22AWG | 7.2 | 80.9 |
| UL2517 | 10x22AWG | 7.7 | 86.3 |
| UL2517 | 2x16AWG | 6.6 | 70.4 |
| UL2517 | 3x16AWG | 7.0 | 87.9 |
| UL2517 | 4x16AWG | 7.6 | 106.0 |
| UL2517 | 5x16AWG | 8.2 | 125.2 |
| UL2517 | 6x16AWG | 9.3 | 154.8 |
| UL2517 | 7x16AWG | 9.3 | 167.7 |
| UL2517 | 8x16AWG | 10.0 | 190.8 |
| UL2517 | 9x16AWG | 11.1 | 219.8 |
| UL2517 | 10x16AWG | 11.9 | 248.0 |
| UL2517 | 11x16AWG | 12.3 | 264.8 |
| UL2517 | 12x16AWG | 12.3 | 277.6 |
| UL2517 | 13x16AWG | 12.9 | 301.2 |
| UL2517 | 14x16AWG | 12.9 | 314.1 |
| UL2517 | 15x16AWG | 13.7 | 344.4 |
| UL2517 | 16x16AWG | 13.7 | 360.3 |
| UL2517 | 17x16AWG | 14.4 | 382.5 |
| UL2517 | 18x16AWG | 14.4 | 398.3 |
| UL2517 | 19x16AWG | 14.4 | 411.2 |
| UL2517 | 11x22AWG | 8.5 | 104.0 |
| UL2517 | 12x22AWG | 8.5 | 109.3 |
| UL2517 | 13x22AWG | 9.3 | 126.2 |
| UL2517 | 14x22AWG | 9.3 | 131.5 |
| UL2517 | 15x22AWG | 9.7 | 141.4 |
| UL2517 | 16x22AWG | 9.7 | 146.7 |
| UL2517 | 17x22AWG | 10.1 | 156.0 |
| UL2517 | 18x22AWG | 10.1 | 161.4 |
| UL2517 | 19x22AWG | 10.1 | 164.5 |
| UL2517 | 2x20AWG | 5.5 | 45.6 |
| UL2517 | 3x20AWG | 5.8 | 54.6 |
| UL2517 | 4x20AWG | 6.3 | 64.1 |
| UL2517 | 5x20AWG | 6.7 | 72.9 |
| UL2517 | 6x20AWG | 7.2 | 84.2 |
| UL2517 | 7x20AWG | 7.2 | 89.3 |
| UL2517 | 8x20AWG | 7.8 | 101.7 |
| UL2517 | 9x20AWG | 8.4 | 113.6 |
| UL2517 | 10x20AWG | 9.3 | 134.2 |
| UL2517 | 11x20AWG | 9.6 | 1398 |
| UL2517 | 12x20AWG | 9.6 | 147.1 |
| UL2517 | 13x20AWG | 10.0 | 157.7 |
| UL2517 | 14x20AWG | 10.0 | 165.0 |
| UL2517 | 15x20AWG | 10.7 | 182.6 |
| UL2517 | 16x20AWG | 10.7 | 190.0 |
| UL2517 | 17x20AWG | 11.2 | 2019 |
| UL2517 | 18x20AWG | 11.2 | 209.3 |
| UL2517 | 19x20AWG | 11.2 | 214.5 |
| UL2517 | 2x18AWG | 6.0 | 55.5 |
| UL2517 | 3x18AWG | 6.3 | 67.2 |
| UL2517 | 4x18AWG | 6.8 | 80.4 |
| UL2517 | 5x18AWG | 7.4 | 93.6 |
| UL2517 | 6x18AWG | 7.9 | 106.8 |
| UL2517 | 7x18AWG | 7.9 | 116.2 |
| UL2517 | 8x18AWG | 8.5 | 132.6 |
| UL2517 | 9x18AWG | 9.7 | 158.2 |
| UL2517 | 10x18AWG | 10.5 | 179.6 |
| UL2517 | 11x18AWG | 10.8 | 188.2 |
| UL2517 | 12x18AWG | 10.8 | 198.7 |
| UL2517 | 13x18AWG | 11.3 | 213.2 |
| UL2517 | 14x18AWG | 11.3 | 223.8 |
| UL2517 | 15x18AWG | 12.0 | 246.8 |
| UL2517 | 16x18AWG | 12.0 | 257.4 |
| UL2517 | 17x18AWG | 12.6 | 272.8 |
| UL2517 | 18x18AWG | 12.6 | 283.4 |
| UL2517 | 19x18AWG | 12.6 | 291.8 |
| UL2517 | 2x26AWG | 4.6 | 29.9 |
| UL2517 | 3x26AWG | 4.8 | 32.8 |
| UL2517 | 4x26AWG | 5.1 | 36.6 |
| UL2517 | 5x26AWG | 5.5 | 42.9 |
| UL2517 | 6x26AWG | 5.9 | 48.4 |
| UL2517 | 7x26AWG | 5.9 | 49.9 |
| UL2517 | 8x26AWG | 6.2 | 55.8 |
| UL2517 | 9x26AWG | 6.7 | 63.0 |
| UL2517 | 10x26AWG | 7.1 | 68.9 |
| UL2517 | 11x26AWG | 7.3 | 70.6 |
| UL2517 | 12x26AWG | 7.3 | 73.5 |
| UL2517 | 13x26AWG | 7.6 | 78.5 |
| UL2517 | 14x26AWG | 7.6 | 81.4 |
| UL2517 | 15x26AWG | 8.0 | 87.8 |
| UL2517 | 16x26AWG | 8.0 | 90.7 |
| UL2517 | 17x26AWG | 8.4 | 96.2 |
| UL2517 | 18x26AWG | 8.4 | 99.2 |
| UL2517 | 19x26AWG | 8.4 | 100.7 |
| UL2517 | 2x24AWG | 4.9 | 33.9 |
| UL2517 | 3x24AWG | 5.1 | 38.1 |
| UL2517 | 4x24AWG | 5.5 | 44.4 |
| UL2517 | 5x24AWG | 5.8 | 50.0 |
| UL2517 | 6x24AWG | 6.3 | 57.1 |
| UL2517 | 7x24AWG | 6.3 | 59.2 |
| UL2517 | 8x24AWG | 6.7 | 66.9 |
| UL2517 | 9x24AWG | 7.2 | 74.8 |
| UL2517 | 10x24AWG | 7.6 | 81.9 |
| UL2517 | 11x24AWG | 7.8 | 84.7 |
| UL2517 | 12x24AWG | 7.8 | 88.6 |
| UL2517 | 13x24AWG | 8.2 | 94.8 |
| UL2517 | 14x24AWG | 8.2 | 98.7 |
| UL2517 | 15x24AWG | 8.6 | 106.2 |
| UL2517 | 16x24AWG | 8.6 | 110.2 |
| UL2517 | 17x24AWG | 9.4 | 126.4 |
| UL2517 | 18x24AWG | 9.4 | 130.3 |
| UL2517 | 19x24AWG | 9.4 | 132.4 |
| UL2517 | 2x22AWG | 5.2 | 39.3 |
| UL2517 | 3x22AWG | 5.4 | 44.3 |
| UL2517 | 4x22AWG | 5.8 | 53.3 |
| UL2517 | 5x22AWG | 6.2 | 59.8 |
| UL2517 | 6x22AWG | 6.7 | 68.6 |
| UL2517 | 7x22AWG | 6.7 | 71.8 |
| UL2517 | 8x22AWG | 7.2 | 81.4 |
| UL2517 | 9x22AWG | 7.8 | 91.2 |
| UL2517 | 10x22AWG | 8.2 | 100.8 |
Certifications Of UL2517
-
Production Processes Of UL cable
JOCA produces UL wires using a fully automated workflow. The cycle synchronizes copper drawing and stranding with precise PVC or XLPE extrusion. Instead of waiting for post-production checks, we employ continuous inline monitoring—using laser diameter gauges and spark testers to catch defects instantly. For multi-core variants, the line handles cabling, shielding, and jacketing to exact specifications. Before shipping, every batch faces final electrical and mechanical inspections to verify full compliance with UL standards.
Packing For Shipment
To meet various transportation needs, there are many methods of packaging that can be used.
Have more questions?
Q: Primary Application?
A: Internal Wiring. Best for cramped, high-heat devices. 105°C rating handles thermal buildup better than standard 80°C wire.
Q: UL2517 vs. UL2464?
A: Temperature Difference.
UL2464 = 80°C (Standard).
UL2517 = 105°C (High Temp). Use UL2517 for medical or industrial instruments.
Q: Shielding Options?
A: Optional. Foil + Braid shield available. Essential for blocking EMI noise in data signals.
Q: Flame Rating?
A: VW-1 Verified. Self-extinguishing insulation. Stops fire propagation in the chassis.
Q: Voltage Limit?
A: 300V. Perfect for 24V DC logic, sensors, and control lines. Not for mains power.
Q: Conductor Type?
A: Tinned Copper. Resists corrosion (“black copper”). Solders faster than bare copper.
Q: Is it Flexible?
A: Static Flex. Good for installation routing. Not designed for continuous robotic motion.
Q: Custom Specs?
A: Yes. Range: 30 AWG – 2 AWG. Custom colors and core counts available upon request.
