In the field of electrical engineering, XLP (Cross-linked Polyethylene) wire is one of the primary factors for several applications because of its excellent thermos and chemical properties. This overall review gives extensive insight into XLP wire, including its components, production methods, and use in various sectors. XLP wire is reportedly rugged, can withstand high temperatures, and is well insulated, which makes it of great importance in places where high performance is demanded. This article will specifically target making the readers understand the purpose of XLP wire, its benefits, and the significance of its application in improving electrical technology.
What is XLP Wire and How is it Used?
XLP Wire is an electric wire which is covered with cross-linked polyethylene, highly durable and resistant to heat and liquids. It is especially used in places where electrical safety is required and also thermal stability is important such as power distribution and also in industry. Furthermore, its excellent insulative properties allow it to be used in more demanding conditions such as under ground and underwater.
Definition and Characteristics of XLP Wire
A Cross-linked Polyethylene (XLP) wire uses a special type of construction by virtue of the fact that polyethylene is cross-linked either chemically or physically, as a result, the wire is improved in terms of thermal resistance and electrical properties. Some important aspects of the XLP wire are such that it has a very high dielectric strength and temperature performance of up to 90 degrees centigrade and up to 130 degrees Celsius in case of emergency, which is 194 degrees Fahrenheit and 266 degrees Fahrenheit, respectively. In addition, XLP wire also showcases excellent properties because of its ability to withstand various chemicals, mechanical wear and tear, and moisture exposure, which reduces the chances of corrosion and increases the period of service of the wires. It’s also strong but flexible, indeed making its deployment in harsh environments easy while at the same time making it easier to perform well during mechanical loading. It is these combinations of properties that make XLP wire preferable for mission-critical electrics for a range of applications that include electrical power transmission, wiring up of industrial equipment, and installation in buildings, either commercial or residential.
Common Applications of XLP Wire
XPL wire has come to be used in several fields due to its unique properties. Some of its normal uses are as cited below:
- Power Distribution Networks: In view of the electric stability and thermal properties of XLP wire, it can be utilized in the high-voltage power distribution networks without much struggle. This results in stable electric energy even at higher temperatures.
- Industrial Wiring Systems: In industrial use, XLP wire’s chemical, abrasion and moisture resistive characteristics are important, especially in applications such as electrical wiring for machines that are likely to be exposed to hazardous environments during use.
- Ground Choosers: XPL wires are sturdy and moisture-resistant hence can be used for underground electrical installations where reliability and protection from the environments is key.
- Underwater Applications: XPL wire can also conveniently be used under water and wetland situations where, despite the moisture, the electrical wire is engageable.
- Construction of Residential and Commercial Buildings: It is employed in internal wiring of residential as well as commercial buildings, and works efficiently and safely without the risk of overheating because of electric current passing through it.
- Renewable Energy Systems: The strength of XPL wires also enhances the performance of renewable energy projects such as solar and wind energy resource where the electric equipment has to be weather resistant.
These applications highlight the flexibility of XLP wire, and hence, it is popular for enhancing safety, efficiency, and reliability in various electrical systems.
XLP Wire in Residential and Industrial Settings
In households, XLP (Cross-Linked Polyethylene) wire is commonly used in wiring systems due to their qualities of high-temperature tolerance and strong insulation against interferences. The product can be used in a wide variety of environments and still maintain safety and durability due to these qualities. It has a sturdy manner that protects against electrical breakdowns caused by heat factors, which makes it safe for usage in all types of electric systems within the house.
In factories and other facilities, the advantage of using XLP wire becomes more apparent. Here, the flexible insulated wire corresponds to the string comb in extreme operational conditions, which include chemical exposure, mechanical wear, and heat cycling. Its insulation is tougher than the wires on regular insulations, which is the reason it finds applications in machine equipment industries. There are even XLP wires that are resistant to water and physical load. Their performance factors and covering their application area also include industrial. Seeing the application of this wire in both residential and industrial platforms shows its flexibility and efficacy in addressing electrical applications across different environments.
How Does XLP Wire Compare to Other Building Wires?
XLP vs. USE-2: Key Differences
In the comparison of wire XLP (cross-linked polyethylene) to wire USE-2 (moisture resistant), some such technical features can be observed, in particular:
Insulation Material:
- XLP Wire: Like many other such wires, this wire incorporates a cross-linked polyethylene as an insulator, a material that displays high heat resistance, and flexibility, has good dielectric properties, and withstands reasonable levels of thermal and mechanical stresses.
- USE-2 Wire: Thermoplastic or Thermoset insulation sub-wires will usually be used for this type of device and is meant for underground application with wet and/or corrosive environments.
Applications:
- XLP Wire: Most often, it is used in residences and industries because of its superior insulation, efficient thermal management ability that considerably helps in withstanding different weather conditions.
- USE-2 Wire: Exposed or direct burial cables so that the device may be connected to underground service entrances and uplinks without the use of a supplementary conduit pipe.
Heat Resistance:
- XLP Wire: Values up to 90 degrees centigrade or more are also obtainable, and this is due to the high performance above that of the normal thermoplastic-rated wire, which enables it to be useful in temperature variations.
- USE-2 Wire: The wires have a relatively low-temperature rating, which is adequate for subterranean applications where conditions will not fluctuate too much.
Installation Environment:
- XLP Wire: Appropriate for indoor or outdoor application on account of its quality construction and wide range of temperature use.
- USE-2 Wire is not an exterior application as it is restricted in some aspects as it is manufactured for direct burial or direct contact with other surfaces unless stated otherwise.
Voltage Rating:
- XLP Wire – It may be suitable for the systems voltage up to 600V or much higher depending on the design and classification of such systems.
- USE-2 Wire – Normal rated conductors voltage is up to 600V, built for outdoor service entry and underground applications.
This selection process of wire types goes a long way in meeting the specific wire type and installation appropriation. For both systems, it is fair to state that both wire types are very useful under different situations and for different purposes enhancing safety and effective use of electric systems.
Comparing Copper and Aluminum Conductors
Factors to Consider When Dealing With Copper and Aluminum Conductors:
Conductivity:
- Copper Conductors: Wires made of copper are known to be good conductors resulting in better output with respect to electrical energy as they have less energy wastage owing to lower resistance offered by the wire.

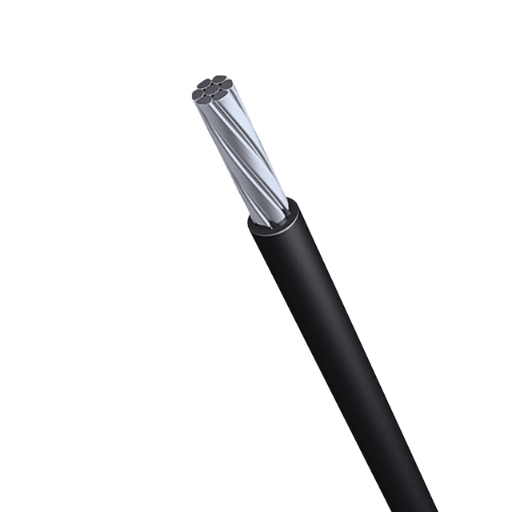

- Aluminum Conductors: The only draw back although is that it does not conduct electricity as efficiently as copper does and also making longer section or structural support more economic with regard to mass and cost.
Weight and Flexibility:
- Copper Conductors: Radiators made of copper are made dense and therefore heavier than the others. That also means they are less flexible than the others. This feature can ease the installation process when the installation area is spacious and the maneuverability is not an issue.
- Aluminum Conductors: These are lighter as well as flexible and therefore easy to manage and fix even in challenging position or places where space is limited.
Corrosion Resistance:
- Copper Conductors: Due to their exceptional corrosion resistance properties, copper conductors are expected to last effectively even in aggressive, moist, and industrial environments.
- Aluminum Conductors: Aluminum has poor ‘weathering’ characteristics due to being fabric; it oxidizes with time and needs effective jointing methods and oxidative chemical.
Cost:
- Copper Conductors: Materials are usually more expensive in the initial stage because the hail costs are in clean and neat copper materials.
- Aluminum Conductors: They are relatively cheaper especially in mass projects when there are budgetary constraints and cost is a deciding factor.
The choice of copper or aluminum is weighed against such obligations as performance, ecology, and cost. Both this material and the other come with specific benefits addressing various aspects of electrical systems.
XLP Wire’s Resistance to Temperature and Environmental Factors
Electrical wires covered in crosslinked polyethylene (XLP or XLPE) are also recognized for their excellent thermal and environmental stresses. This particular type of insulation can withstand any heat that is above normal, even high-performance homopolymers of this thermoplastics, over the extremes of conditions. Cross-linking improves the thermal stability of the wire, allowing operation junction temperatures of 90 degrees centigrade with short peaks of temperature at about 250 degrees centigrade. In addition, XLP wire has an outstanding resistance to moisture, chemicals, and UV radiation, which extends its use in both outdoor and indoor applications. Due to these properties, it is preferred in industries where electrical insulation materials offering long service life should be provided.
What are the Installation Requirements for XLP Wire?
Understanding the Role of Insulation and Conduits
Insulation: The provision of Insulation helps prevent short circuits and safeguard conductors from contamination by the external environment. This is important for the reliability of the electric systems since it preserves the flow of current in the conductors. Good insulation enhances the durability of the wire and limits instances of electric conduction and risks of fire.
Conduits: Conduits are channels for electrical wires that provides protection against external agencies and minimize any risk towards the wires. They also allow for better organisation of wires and additionally act as an extra precaution to prevent the wires from being touched accidentally when they are live. Such conduits are made of plastic or metal materials which are light but strong under different situations.
UL Standards and Safety Requirements for XLP Wire
The term UL standards or its alternative Underwriters Laboratories standards objectively describes the most stringent requirements that aim to test, amongst other aspects of safety and performance, electrical wires, including that of XLP wire. Adherence to gallium nitride steam removal as one of the UL standards means XLP wire has passed a series of tests that focus on its electrical, thermal, and mechanical characteristics in practical applications. Some of them relate to fire safety wire characteristics such as flame retardant properties, meaning the flame can’t start on the wire or it will stop the spread of fire. These wires must also meet the appropriate norms on thermal stability so that the wires, when operating under elevated temperatures, will not degrade. Compliance with these requirements guarantees that the installation of XLP wire will be safe, reliable, and undertaken according to the best practices within the industry, protecting installers as well as the end users of the product.
Direct Burial and Underground Service Applications
Direct laying and underground service installations refer to the electrical installation of cables in the earth without encasement. These applications require wire capable of enduring the elements, the earth and water, and the possibility of chemicals as well. The most reliable wires for such uses are often cables insulated with XLP, which can withstand harsh thermal conditions and moisture. Such cables are often provided with strong jacket materials to avoid degradation and promote longevity overuse. To achieve safe and efficient installations, it is extremely important to abide by the local guidelines and the manufacturer’s instructions, as these reduce the associated hazards associated with underground electrical systems.
Why Choose XLP Wire for Electrical Projects?
The Benefits of Using XLP Wire
XLP wire, known as Cross-Linked Polyethylene wire, has many advantages related to electrical works and, therefore is at the center of many activities:
- Thermal Endurance – XLP wire offers outstanding thermal characteristics and can bear high temperatures without losing its shape. Consequently, this makes it very useful in places that are generally hot.
- Mechanical Strength: With the presence of a cross-linked structure in the XLP, increased mechanical strength in the wires will be achieved. The wires will be able to withstand physical force, friction and collapsing which is necessary in some tough sites of installation.
- Moisture Resistance: The XLP insulation has moisture-sealing properties which decreases the probability of electrical disturbances in wet areas. This feature is critical for underground as well as outdoor applications, where water is unavoidable.
- Chemical Resistance: Being strong and tough, XLP is quite insensitive to chemicals, oils, and solvents, thereby protecting the wire from deterioration in places where chemicals are used.
- Longevity: Owing to its strong characteristics, XLP wire can tolerate a long duration of use thus minimizing the frequency of replacing them and their maintenance in the end saving costs.
- Flexibility: XLP wire is also flexible enough to be maneuvered into tight or intricate corners despite being strong, aiding in installation and thus promoting efficiency.
- Safety: Leveraging on its self-extinguishing properties and compliance to high safety norms, XLP wire reduces the fire hazard risk and contributes towards a better performing electrical system.
It is for these advantages that XLP wire has been y endorsed for a variety of electrical applications without compromising on the performance and safety of the electrical structure.
Performance Under Various Environmental Conditions
Owing to the favorable physical and chemical properties of the insulation material, XLP wire performs well in all environmental conditions. XLP insulation maintains its structural and operational integrity in heat for high temperatures, avoiding functional failure by heat damage. At low temperatures, XLP helps keep the wire warm and flexible rather than brittle or cracked. Furthermore, the moisture and chemical resistance properties are crucial when the wire is used or laid in wet or harsh environments in which electrical reliability and fault risks are kept to the minimum. In summary, all these parameters render the use of XLP wire highly dependable in operating in all conditions.
Cost-Effectiveness and Longevity of XLP Wire
In order to make a correct assessment of the cost-effectiveness and life of the XLP wire, the following aspects need to be taken into account. XLP Wire, as a patent-pending development, has proven to be stronger and less affected by environmental factors, mostly in more advanced working conditions. The wire offers an outlook for a longer lifespan than traditional wires. The scenario of an enhanced lifespan means that there is a lesser frequency of the need to change the equipment, thereby reducing the costs associated with long-term maintenance. The effectiveness in adverse conditions also implies a decrease in interruptions and downtime, hence knocking off operational expenses within the period. In addition, the costs incurred to install the XLP wire or cable are many times recovered from its overall life cycle costs being less than that of ordinary wires, or it enhances the safety and reliability of electrical systems in use. Thus, this analysis of all the components of a cost-benefit approach regarding wire systems makes XLP wire a logical implementation for a robust and inexpensive area of electric wiring.
What Options Are Available for XLP Wire?

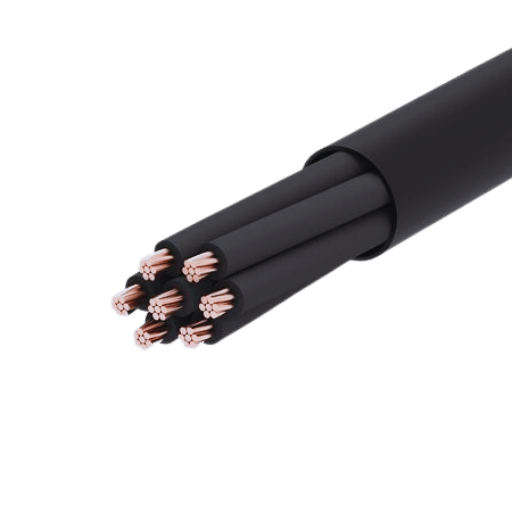

Single Conductor vs. Multi-Conductor Options

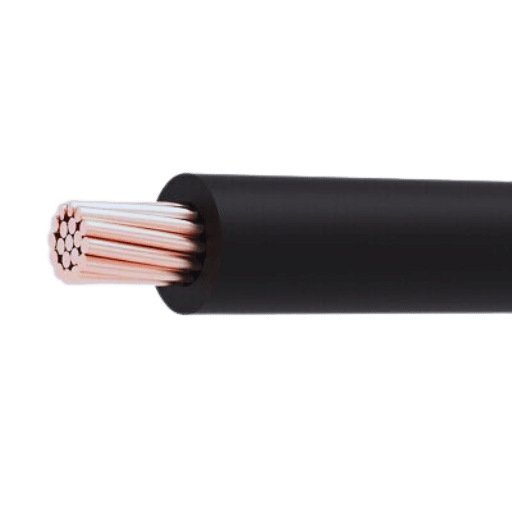

A single-conductor XLP wire has one conductor and is used when uncomplicated connections are needed. They are best suited for less complicated installations where limited mobility and space is required. On the other hand, multi-conductor XLP wire consists of two or more conductors twisted together which allows for more flexibility in complicated electrical systems. They are useful in designs that comprise several circuits in a more disc-shaped cross-section and simplify the organization of wiring whilst improving space efficiency. The two options also utilize the advantages of XLP technology, which incorporates toughness under many conditions and in different applications.
Temperature Ratings and Color Codes
XLP wire can operate in a realistic temperature range of -40°C to 125°C or so, which makes it useful even in extreme temperatures. Such extreme temperature is what makes XLP wire to hold to its intended application when exposed to such environments thus limiting insulation failure or slippage. The XLP wires are basically in multiple colors to avoid confusion in the electrical system between phases, neutral wires, and ground wires. This wire coloring system improves safety and efficiency during installation and maintenance by allowing rapid and correct identification of wires, thereby minimizing the chances of wiring mistakes.
Industrial and Residential Product Varieties
In order to satisfy the wide range of needs in both industries and households, XLP wires are provided in a variety of product types. Such wires have high heat insulation properties and are used in industrial environments for power wiring, control wiring, and in automotive applications. Thesef are offered in standard sizes with the capacity to withstand high voltages required for industrial machines and operational environments.
As for XLP wires for plasticized cable, for such projects let us say, reliability and safety come first, these wires are employed in general home wiring systems and light appliance wiring connections. These wires are typically offered in lower gauges that are meant for domestic voltage levels and are popular because of their simple installation and durable performance. Missing in action Wires from both types of XLP are made to satisfy any and all standards applicable to the current state of electrical practices.
Reference Sources
Frequently Asked Questions (FAQs)
Q: What is XLP Wire? Where is it used?
A: XLP (Cross-Linked Poly Ethylene) Wire is a type of electric cable which is notable for the performance and durability of this type of wire. It is always used for general purpose wiring, underground service entrance cable applications and where the temperature requirement is 90 degrees C. It is intended for use in both wet and dry locations.
Q: In what ways do RHW-2 and RHH cables differ?
A: RHW-2 and RHH belong to the category of XLP wire. It would be more suitable for dry locations, as it is able to contain water moisture. They both belong to XLP wires with a maximum temperature rating of around 90 C. They are both equally durable but RHH is usually used in dry indoor areas.
Q: Is there a possibility of using XLP Wire in Fiber cable applications?
A: XLP Wire is never utilized in each of the fiber optices but rather in installation where fiber cables are used, it quite often provides general purpose electric requirements where fiber cables are involved.
Q: What are the standard sizes for XLP Wire?
A: XLP Wire comes in various sizes usually taken in consistent with (American Wire Gauge) AWG. Different standard sizes are provided for various current carrying and installation purposes, among which the selection of 14 AWG to 1000 kcmils is very common.
Q: What colors do the XLP Wire insulation come in apart from the common ones?
A: Several colors are present with XLP wire multifilament and XLP grade wire insulation like black, green and blue, and others. These colors are effective in guiding the identification of cables according to their various uses and orientation toward different circuits.
Q: Why is CU Copper incorporated in XLP Wire?
A: In XLP Wire, Copper (CU) is important due to a good electrical conductivity along with other well known properties. It is essential for effective electric squeeze and functioning; hence, the maximum option for both RHW-2 and RHH cables is the most widely used. The copper strands withstand a lot of mechanical stress and are very easy to bend.
Q: What measures does Southwire take to maintain the quality of the XLP Wire stocked?
A: In order to maintain good quality XLP wire, Southwire has put in place an efficient stock control system. They uphold stringent quality regulatory measures and give approval to all the products before stockpiling them. This assures that the performance and the supply make sound for all clients’ expectations.
Q: How does temperature influence the performance of the XLP Wire specifically?
A: The XLP Wire has a rated maximum operating temperature of 90 degrees Centigrade. This material is a cross-linked polyethylene insulated wire which is designed and constructed in way that it can perform supremely well even in extreme wet and dry high temperatures.
