Opting for a cable connector ideal for your solar power system transpired as a challenging endeavor as it has a lasting influence on the system’s efficiency and capacity to operate safely. With copper and aluminum tubes emerging as the two primary contenders, how do you determine which one is best suited to your needs? Cables weave interconnections and assist in carrying high voltages for solar panels; this article focuses on imparting necessary comparisons between the two to assist you according to your requirements. It’s essential to delineate, depending on its integration and persistence during the installation process, its economic viability and usage. This guide will go through every aspect regarding efficient decision-making, whether you’re in favor of renewable resources or are an installer yourself.

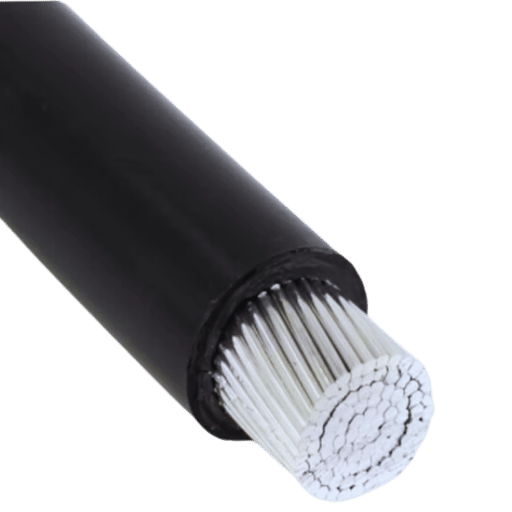

What is a Solar Cable, and Why is Material Choice Important?
A solar cable refers to a type of wire suitable for the different components of a solar energy system, which comprises solar panels, inverters, and batteries, among other components. It supports the safe transfer of electrical energy produced by the photovoltaic system. Thus, the selection of material for solar cables is very important as it determines the cable’s mechanical strength, electrical performance, and its use outdoors. Good quality materials like copper or aluminum are selected to optimize the resistance of cables against weather, ultraviolet light, and mechanical forces, which guarantee an efficient, reliable, and long life span of the solar system.
Understanding the Role of Copper in Solar Cables
The reason solar cables use copper is its efficient electrical conductivity, which reduces power transmission losses. In addition, this metal is very durable and has a high resistance to corrosion, ensuring long-term performance. Copper also makes the cables flexible which facilitates their installation and protects them from damage during mechanical fabrication processes. These properties of copper make it a good option for keeping solar power systems effective and reliable.
Importance of Aluminum in Solar Power Systems
Aluminum is essential in the construction of solar energy systems because of its specific attributes, which are both lightweight and strong. The excellent aluminum frame durability ensures structural integrity for solar panels and mounting systems while eliminating excess weight. Even more, outstanding aluminum properties are low corrosion rates, meaning solar components will endure even high humidity, large amounts of moisture, or prolonged exposure to UV radiation, which ensures the long-lasting performance of the solar cells.
Aluminum is also a convenient material as it is easy to recycle, thus making it environmentally friendly. Approximately 5% of the electricity required to create new aluminum is used to recycle old aluminum, so the overall carbon footprint of aluminum incorporated into the solar equipment is reduced. A key aspect to prioritizing efficiency in photovoltaic cells is ensuring high thermal conductivity, and fortunately, aluminum plays a critical role in reaching that for thermal management.
Currently data indicates that aluminum is the preferred element for constructing 85% of the solar panel frames across the globe due to its weight and ratio strength characteristics. China, Germany, and The United States are using the size of their renewable energy system and the ability to manufacture aluminum at scale to meet their energy demand. Such reliance on aluminum highlights its significant contribution to bettering solar technology with greater efficiency and less pollution.
Key Differences Between Copper vs Aluminum in Photovoltaic Applications
Electrical Conductivity
- Photovoltaic projects greatly benefit from copper’s high electrical conductivity since it is more efficient than aluminum. Light-weight aluminum can be used as a substitute because it is not as durable as copper; still, aluminum makes it possible to use larger conductors without significantly increasing structural weight.
Weight and Density
- When compared to copper, aluminum is approximately three times as light which makes it more suitable for large-scale converters even where weight set restrictions since copper’s carrying capacity would be greater than aluminum’s.
Cost Efficiency
- While copper is more expensive than aluminum in its raw, aluminum is preferable in bulk purchases as It is relatively cheaper, which translates to lower manufacturing costs in large quantities, meaning it can be used more for photovoltaic systems.
Corrosion Resistance
- Both metals do display a fair level of resistance to corrosion. However, in areas where there is extreme exposure to moisture, aluminum should be avoided since copper would be more suitable; this is accompanied by the fact that pure aluminum is oxide and suffers from corrosion protection that entails extreme temperatures.
Thermal Expansion
- Aluminum has the greatest coefficient of thermal expansion compared to copper. This implies that aluminum has a higher rate of thermal expansion relative to copper, which may affect the integrity of joints over a period. This needs to be catered to during the engineering design of photovoltaic systems.
Mechanical Strength
- In contrast with aluminum, copper is tougher and ductile, which means it has more resistance to deformation caused by forces. On the other hand, aluminum’s low-density properties keep it practical since the tensile strength is considerable if weight is a critical issue.
Availability and Global Supply
- Globally, aluminum is produced straighter and is more readily available than copper. Thus, it’s always more convenient to have such an abundance of materials because aluminum-based photovoltaic systems are not easily affected by supply baseball determined the changes or price changes.
Environmental Impact
- On the other side, both flat are causal deformation metals, but in manufacturing and recycling, aluminum saves energy, unlike copper.
Each of these factors must be addressed carefully to choose the optimal metal for certain photovoltaic applications in proportion to magnitude, price, and environmental factors.

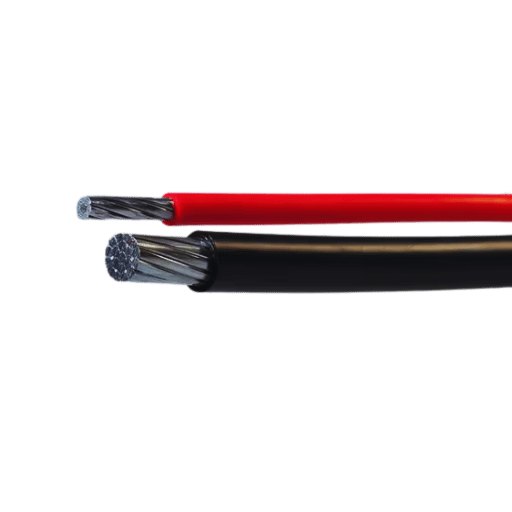

What are the Benefits of Copper PV Wire?
Durability and Reliability of Copper Conductors
Copper wires are widely praised. They stand out in photovoltaic (PV) applications as they exhibit remarkable strength under stress and possess decent tensile strength, which prevents them from breaking during installation or operational processes. What sets them apart even more is their strength to endure because of the fact that they have excellent electrical conductivity, which means energy losses are reduced significantly, which helps with efficiency in performance. As impressive as these wires are, they also do not corrode, and this attribute means that they perform reliably for a long time while assuming that the environment in which the wires are harsh. All said the attributes and characteristics of copper wiring make it a trusted wire to use for photovoltaic wiring solutions.
Why Choosing Copper Means Better Conductivity
Due to its physical and chemical properties, copper has been proven to possess superior conductivity, making it one of the best materials to be used in the creation of PV systems and other electrical systems. Below are the key factors contributing to copper’s unmatched performance:
Excellent Electrical Conductivity
- Copper has one of the highest levels of electrical conductivity among metals, with a rating of over 59 x 106 Siemens per meter. Therefore, it is extremely efficient in terms of energy transfer as the resistance is low, which ensures reduced power loss throughout systems that involve electricity.
Thermal Conductivity
- Copper possesses a thermal conductivity of 400 W/m·K, and therefore, it can effectively be used to get rid of heat while operating in high current situations. This makes it more efficient and reliable as it reduces the overheating of systems.
Durability and Malleability
- Copper has a high ductility, which allows it to be drawn into wires or shaped into more complex structures without breaking. This makes it easier to install while being able to withstand mechanical strength.
Corrosion Protection
- Copper can resist corrosion to a considerable extent because it creates an oxide layer upon reacting with air. This gives it the capacity to be used in high heat, moisture, and salt environments for long periods of time.
Eco-Friendly
- As a material resource, copper is a choice that is, of course, sustainable since it recycles 100% without losing quality. It is also energy efficient; recycling copper uses 85% less energy than what’s used during its primary production.
Economical in the Long Run
- While copper is relatively more expensive to purchase at the very start than some other substitutes, its durability, reliability, and efficiency over time show reduced maintenance and operational costs.
Thanks to copper being used in PV wiring and electrical systems, engineers and manufacturers are guaranteed greater energy efficiency, lower energy losses, and higher system lifetimes. All these factors add up to superior overall performance.
Copper Wire in Solar Panel Installations
Due to its great conductivity, strength, and thermal characteristics, copper wire is an important part of solar panel installations. Copper has a conductivity of 59.6 × 10^6 S/m (siemens per meter) at 20 degrees centigrade, making it one of the fastest conductors of electric current. The high conductivity means and low energy losses mean that electricity from the solar panels can reach the inverters and storage devices in the solar systems at high efficiency.
Moreover, due to its corrosion resistance and mechanical properties, copper is most suitable for solar installations exposed to extreme climates. For instance, research has established that copper wiring outperforms some of the available alternatives by working for several years even in a high salt, humidity or temperature environment. This reduced the system downtimes and maintenance costs greatly.
In the field of solar energy systems, copper has virtually become ubiquitous due to its excellent shock resistance and electrical conductivity. Industry data indicates that adding copper to the mixture while wire drawing offers a maximum of 20% enhancement in system performance efficiency compared to lower conductivity materials. The integration of new technologies, such as copper alloy cables with modern solar panel installations, has made the systems more durable against electrical shock and fires.
The advantages of copper are not limited to efficiency and durability – it is also important for achieving sustainability goals since it is easily recyclable. This is highlighted as of all the copper mined in history, around 80% is still in use today which showcases its recycling ability in minimizing damage to the ecosystem. This is in line with the renewable energy industry’s aim of coming up with green and sustainable solutions.

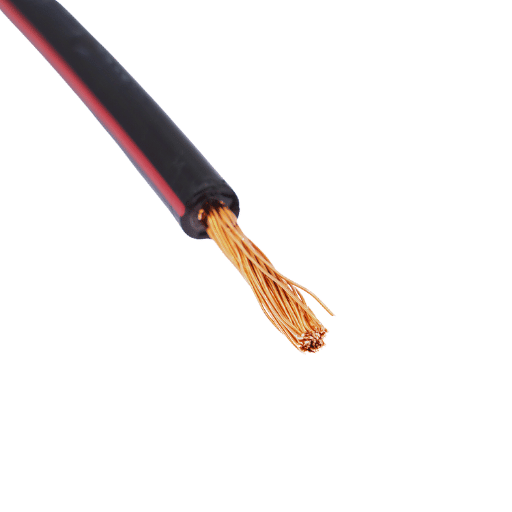

Why Consider Aluminum for Your Solar Cable?
Advantages of Aluminum Solar Cables
Lightweight
- Aluminum is an Installation help as it is much lighter compared to copper, which reduces the overall weight of solar panels’ infrastructure, making them easier to handle. This feature facilitates the use of aluminum in projects like large solar farms that require robust structures.
Cost Efficient
- Aluminum is cheaper than copper due to its more extensive availability. Applying aluminum solar cables helps provide an effective reduction in material overheads, ensuring that the solar also able to yield profits.
Ratios of High Conductivity to Weight
- Aluminum is inferior in terms of conductivity compared to copper, though aluminum does have a relatively high conductivity-to-weight ratio. This alone compliments applications that put as much emphasis on reducing the weight of the device as on reducing the electrical power it consumes.
Resistance to Corrosion
- Using aluminum for solar installations is practical as aluminum serves great resistance to corrosion and oxidation by forming restrained oxide layers when exposed to air which makes aluminum fit for construction in such harsh conditions.
Stability When Heating
- Aluminum would not disappoint in performing as it is ideal for outdoor solar panels due to its ability to endure extreme temperature ranges, ensuring long-lasting craftsmanship.
Sustainability
- Aluminum is a metal that can be sustained and is easily recyclable, and it costs 95% less to recycle in comparison to making primary Aluminum, ensuring reduced carbon emissions.
Flexibility in Long-Distance Transmission
- Aluminum is worth UBS for long-distance power transmission in solar systems, especially for dealing with large-scale or remote sites, as it is comparatively lower in density, making it easier to use.
These perks render aluminum solar cables a viable alternative for any solar energy setup while still ensuring cost, eco-friendliness, and reliability.
Cost Benefits of Using Aluminum in PV Wires
Decreased Costs of Material
- Compared to copper, aluminum is notably cheaper, thus making it a reasonable option for PV wires, particularly in circumstances where a large cabling is necessitated for large-scale solar systems.
Installation Charges are Lower
- As aluminum cables are not only lighter but also significantly cheaper to transport, the labor cost as well as the logistics expenses for installation is relatively lower in comparison to copper cables.
Savings in the Future
- Aluminum cables are not only quite economical but also have a decently efficient conductivity level and a dependable performance, which will inadvertently reduce the cost of investment and improve the ROI in the long run.
Lightweight and Easier to Install
The installation and weight advantages of aluminum cables are substantial. When compared to copper, aluminum is roughly 70 percent lighter, which is extremely useful when it is transported and installed. This weight reduction means less physical exertion on workers and less dependency on heavy equipment which simplifies the installation process and lowers costs. Lighter cables also result in shorter project durations which improves the efficiency of labor and resources. Research conducted across multiple industries shows that aluminum wiring tends to cut down the installation duration of large-scale projects by 20 to 30 percent as compared to wiring done using copper. It is safe to say that aluminum offers a sensible and cost-effective option when speed and cost reduction are required.

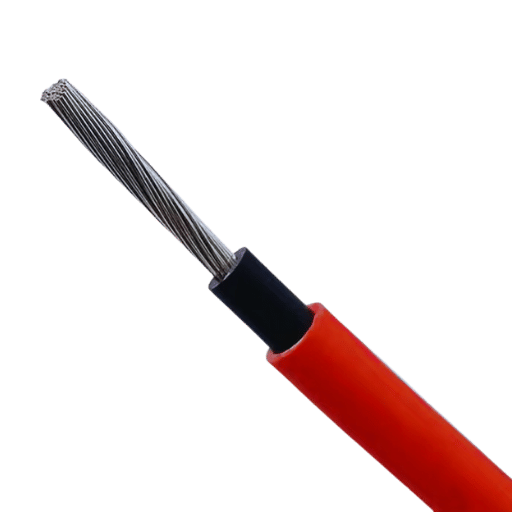

What to Consider When Choosing Between Copper and Aluminum Solar Cables?
The Impact of Thermal Expansion on Cable Size
Aluminum tends to experience more thermal expansion than copper, and it is due to this reason that the size of the cable is greatly influenced by the temperature. A slight alteration in the size and tension of the cable can result in the temperature being altered during the installation of the cable. Expanding and contraction cycles, if not controlled correctly, can result in the connections of the cable being loose or wear out with time, which is particularly risky. In order to eliminate such risks, always ensure that the cable is installed in accordance with the guidelines provided by the manufacturer, and if the set environment is prone to temperature alteration, consider using cables built for such compatibility.
Understanding Insulation and Oxidation Resistance
The cable shielding acts as an additional layer, preventing electrical leakages and short circuits from occurring. Cross-linked polyethylene and polyethylene are examples of insulation materials that are durable and fully functional. Protective metals such as aluminum and copper have the relevant oxygen-contacting resistance. The only thing left to be done is to maintain appropriate humidity levels or, if this is not possible, to just prevent moisture invading the metal from its surface Into the core. Also, insulated cables can be further enhanced with coatings, which create additional barriers. Using materials with good oxidation-resistant characteristics also increases the durability and reliability of the cables under extreme conditions.
Why Proper Connectors Are Essential for Copper and Aluminum PV Cables
This composite presents the criteria for an efficient and safely designed contact system, which is important from both mechanical and electrical aspects when using copper or aluminum cables within photovoltaic (PV) systems. The use of any two materials has their thermal properties of expansion and conductivity, which readily renders the design of suitable connectors a technical requirement. Copper has an electrical conductivity of about 59.6 × 10⁶ S/m compared to 37.7 × 10⁶ S/m for aluminum thus making copper cables suitable when resistance losses need to be minimized. On the other hand, aluminum, although a worse conductor of electricity, is much lighter and cheaper than copper, making it a more feasible option when designing large-scale systems when weight and cost are the deciding factors.
The use of improper or incorrect connectors while interconnecting the predominant metal conductors when interfacing with PV systems leads to the phenomenon of galvanic corrosion at the junction points. This type of corrosion happens due to the electrolytic corrosion induced by copper and aluminum conductors, which are poorly interfaced and mated together with moisture or other forms of electrolytes, further worsening the already existing aluminum degradation. In tackling these instances, there are connectors that have been fabricated to accommodate the use of dissimilar metals, like anti-corrosive bimetallic connects that would do a better job than conventional dissimilar metal connections by uniting electrochemical mitigation and galvanic treatment with multifaceted constructions.
The temperature gradients also pose a challenge, as copper and aluminum have different coefficients of thermal expansion. Loosely fitting connectors due to temperature fluctuations may worsen with time, thereby increasing the chances of overheating and failure of the PV system. Spring-loaded or torque-optimized quality connectors can accommodate thermal expansions and contractions and provide a secure connection.
It has been noted that suitable connectors are a requisite in enhancing the system’s reliability. Research performed in the industry found that up to one-quarter of all PV systems fail because of improper connections, especially due to overheating, arcing, or corrosion. Doing so can optimize energy transmission and extend the entire system’s life. By using connectors designed specifically for copper or aluminum PV cables and following best installation practices, operators can greatly reduce the likelihood of faults.
Which Material is Best for Your Solar Installation?
Evaluating Corrosion Resistance and Conductivity
I might have to start with a material that doesn’t do corrosion and offers good conductivity, as both these features are required to measure longevity performance. For instance, Copper is an excellent choice due to its high conductivity and resistance to corrosion. However, aluminum, albeit less conductive than copper, is lightweight, cheap, and ideal to use in situations where weight and cost are a consideration. In doing an analysis of the environmental conditions and the specific associated details within a system to be set up, I can find a suitable non, non-disorderly material that fulfills the requirements of the system set.
When to Avoid Aluminum and Choose Copper
There are specific contexts where copper has to be chosen over aluminum. This is the case, for example, when superior electrical conductivity and mechanical strength are required, as in the case where there are expected extreme ambient temperatures. Under such conditions, aluminum would tend to thermally expand, whereas copper would become unreliable. On the other hand, copper conductors are advisable in marine and industrial locations where high humidity exists or where the atmosphere is corrosive, as aluminum would corrosion quicker there. With respect to the maintenance and life expectancy of the installation, copper proves to be a good choice even though its price is relatively high.
How Solar Photovoltaic Systems Benefit from the Right Choice
The choice of materials is critical for the composition of solar PV systems as it affects their performance, efficacy, and durability. As an example, copper is heavily employed in Solar photovoltaic systems because of its great electrical conductivity, thereby reducing losses associated with power transmission. Recent studies suggest that the use of copper wiring and connectors has been found to increase solar efficiency by 15% more than aluminum, hence making it the material of choice for high-energy generation. More so, the great thermal conductivity of copper and its anti-friction properties guarantee that critical components like inverters and wiring are able to sustain optimum performance in extreme environments.
On the other side, for medium-scale projects or in situations where minimizing expenses is the focus, structural components like module frames and racking systems may include aluminum due to its cost-effective and light-weight features. However, these applications are limited to the structural elements and non-conductive components of the PV system, so energy efficiency remains unaffected. The performance and cost-effectiveness of solar PV systems are optimized by using aluminum for structural elements and copper for electrical ones.
At the end of the day, the material selection will have a direct impact on the longevity of the system as well as determine if it would require frequent maintenance in order to be functional and cost effective in the long run. Even though it is expensive, the depletion of copper is a no-brainer as it offers excellent lasting power, especially when preserved for many, many years. With a more optimized approach towards the clean energy sector in regards to the materials used for construction, a greater emphasis is placed on higher durability while being energy efficient for solar PV installations.
Frequently Asked Questions (FAQs)
Q: What makes aluminum PV wire different from copper cable in connection to solar systems?
A: To begin with, Aluminum PV wire has a reasonable price per unit and is also considerably lighter than copper, which is a plus. However, this also results in copper wires being available in a larger range of ampacity, which is a point when making a comparison between the two wires. Returning back to copper, it has a great conductivity ratio and a high corrosion resistance but is expensive and has a scrap value that makes it tempting for thieves.
Q: Why has the demand for aluminum cables increased for solar installations?
A: The demand definitely has noticed significant growth, and that is due to the fact that installation and cabling costs have been reduced along with having a lower scrap price compared to copper, which enables them to have high resistance against thieves. In reality, aluminum comes with an exceptionally great conductivity-to-weight ratio, which can aid significantly in dealing with ECG and rapid change in different solar system designs.
Q: Are all solar installations compatible with aluminum PV wires?
A: In contrast to the majority of installations, aluminum PV wires do not always function correctly, even if they can be used in a number of projects. Local constraints in terms of legislation, climate, and system requirements should all be taken into account. For instance, because of its greater corrosion resistance, copper may be used in certain applications in regions that are close to the ocean. To determine the optimal approach to your particular installation, it is wise to contact an expert.
Q: Compare the thermal expansion coefficient of aluminum to copper for the solar cables.
A: Aluminum has a higher thermal expansion coefficient than copper, which means it expands more. This feature, if not allowed in the system design and construction, could cause connections to become slack with time. Such matters can be combated with appropriate installation methods and periodic servicing.
Q: Are aluminum and copper PV wires compatible with each other in the same solar system?
A: Yes, it is permissible to use both types of wires in the same solar system, but this requires proper planning and installation techniques. Bi-metallic connectors or lugs are essential connectors for aluminum and copper wire to ensure there is no galvanic corrosion. In most cases, it is recommended to use only one type of conductor throughout the system to minimize compatibility issues.
Q: Are Aluminum solar cables more durable than Cooper and tend to last longer than copper cables?
A: There are significant differences between the two materials. Copper usually tends to last longer and is favorable to be used in harsher weather conditions, unlike aluminum wires, but with time, the modern alloys of aluminum have improved cable toleration a lot more. Provided that the cables have been constructed and installed properly, aluminum wires can sustain their quality for the lifetime of the solar systems. It would be prudent to recognize the fact that other variables such as microclimate, system specifications, and target budgets also determine which of the materials is most appropriate for use.
Q: What are some special considerations for terminating aluminum in PV wires?
A: There are a few things to take into account when terminating aluminum conductors. The first consideration is the presence of aluminum oxide which tends to form naturally on the surface of aluminum for a prolonged duration during air exposure. This oxide acts as a ‘resistor’ and increases the resistance at the connection area. As a solution to this, ‘brushing of wires’ and ‘anti-oxidant compounds application’ are highly recommended per se. With regard to aluminum conductors, regularly scheduling re-torquing for connections can assist in dealing with the problem of aluminum compressing over time. A specification and installation of lugs and connectors to suit aluminum bends is a helpful strategy.
