Each solar power system relies on correctly done wiring to be efficient, and knowing the basics of wiring optimizes a system’s performance and safety. This guide centers on configuring the solar panels in series—this entails a specific arrangement aimed at raising system voltage for increased energy output in specialized applications. DIY enthusiasts and professional installers alike need to understand series wiring to construct a solar system that adequately meets their energy demands. We will outline the major concepts and advantages of series wiring along with uncomplicated instructions guiding you through each process to prepare you for this crucial step of installing solar panels. You will gain a profound understanding of the configuration to enable dependable and efficient wiring.
What Are the Basics of Solar Panel Wiring?
The process of solar panel wiring entails the interconnection of numerous panels into a system that can efficiently produce power. Solar panels can be wired in two primary ways: series and parallel.
- Series Wiring: This is the process of connecting where the positive terminal of one panel is connected to the negative terminal of another. This configuration raises the system voltage while having the current remain the same, which is better for higher voltage systems, especially in series solar panel wiring.
- Parallel Wiring: This is done by connecting the positive terminals and the negative terminals with each other. In contrast, this configuration increases the current output while the voltage remains constant, which is better when the system needs higher current outputs.
The decision to wire in series or in parallel is affected by the configuration of your solar inverter, solar panels’ energy output requirements, and the panel’s specifications. Achieving the correct wiring is fundamental to ensure efficiency and the ability to work with other components in the system.
Understanding the Solar Panel Wiring Guide
While wiring solar panels, check the system’s requirements for total voltage and current to ensure compatibility. For stronger systems that require higher voltage, connect the panels in series or daisy-chain by connecting the positive terminal of one panel to the negative terminal of the next. This will increase the voltage while keeping the current at a constant level. If higher currents are needed instead, use parallel wiring—linking all positives together and all negatives together—as this will keep voltage stagnant.
Maintain a check on other system components like the inverter and charge controller to make sure they are compatible with the voltage and current levels spawned by the wiring configuration you’ve selected. Following proper planning steps and unlike instructions will help avoid any manufacturer’s performance benchmarks and result in hazard-free system operation.
Key Components in Solar Panel Wiring Basics
Every solar power system has defined parts, each of which serve a purpose that works towards effortless generation of energy and convenient power transmission. The following explains the most important parts and how they function together.
Solar Panels
A solar panel is made up of photovoltaic (PV), craze cells, which generate electricity when exposed to sunlight. Additionally, solar panels are categorized based on ‘watt produced’. For example, a normal household solar panel would produce around 250W to 400W, given they’re under optimal conditions.
Charge Controller
This device balances the flow of both voltage and current from solar panels to the battery bank, thereby taking care of overcharging and excessive power discharge. Newer charge controllers like Maximum Power Point Tracking (MPPT) can offer up to thirty percent better efficiency than older systems like Pulse Width Modulation (PWM).
Batteries
Electricity supplied by the solar panels is stored in batteries so that they can be utilized at a later time, especially when the sun isn’t out. Most prefer using lithium-ion batteries due to their, energy density, longevity and lead-acid batteries due to their cheaper price and lower lifespan.
Inverter
The majority of electrical appliances operate using AC, unlike the DC produced from solar panels. An inverter brings about this transformation of current to be utilized for the designated purpose. Depending on the scale of solar panel systems, their inverters can range typically from hundred-watt in size units to kilowatt-tier industrial grade ones.
Wiring and Connectors
Cables, wires and connectors are important for the efficient and safe transfer of electricity. Cables used with the solar panel systems must be insulated as well as UV resistant and fit for the outdoors. They are usually in the form of PV wires or solar cables and can ampecity rated to ensure that they do not overheat due to the current produced.
Fuse and Circuit Breakers
Fuses and circuit breakers within a solar panel system are protective systems that ensure heat from surges or short circuits. These components have specific ratings for voltage and currents that ensure safety as well risk out the operational integrity within the system.
Mounting and Racking Systems
To maintain the balance of harnessing the most energy possible, the set solar panels along with advanced racking systems are mounted in such a manner that allows resistance against changing environmental conditions. This includes temperature differences as well as wind and snow loads while also ensuring that the angle in which the panels are tilted and placed remain aligned for maximum solar power capture.
Furthermore, combining the solar panel components mentioned enables the creation of a system with maximum efficiency, reliability, and safety spanning multiple applications.
Exploring Different Types of Solar Panel Connections
The steps taken in providing the connection of solar panels are in direct relationship with the design of the photovoltaic (PV) systems. Connections of solar panels affect the efficiency, functinality as well as how flexible these panels can be set up to meet unique circumstances. There are different approaches to make connections between panels using series circuits or parallel circuits or even a mix of the two depending on the needed output voltage, current or both.
Series Connections
Solar panels are connected in a way that follows a chain. The positive terminal of one solar panel has to be connected to the negative terminal of the other solar panel. This improves the total system’s output voltage, but the current s will still remain at the range of value of a single panel of 10 A. For instance, if we consider a state where each solar panel gets 40 volts and 10 amps and 4 of these panels are put in series, then 4 solar panels on a series will yield 160 volts and 10 amps. If there is more than one panel, the output reaches 160 volts, and hence, all other panels yield the intended output. From this example, we can easily note the value proposition that comes alongside the series connection in solar panels. From this single example, we can conclude that series solar panel wiring is preferable in situations when voltage output solar panels are required to minimize energy loss when the energy is transported over extended distances due to the reduction of power in most cases. The yield of the entire string could still be modified by a single panel when the selected panel is shaded or isn’t functioning because the current supplied moves uniformly through each panel.
Parallel Connections
Increasing the current by combining all positive terminals in one group and all negative terminals in another is what constitutes a parallel connection, which maintains the voltage of a single panel. For example, two solar panels in parallel with each producing 40 volts and 10 amps, will generate an aggregate output of 40 volts and 40 amps. This arrangement is appropriate for higher current output requirements, such as off-grid systems with batteries. Because each panel functions on its own, parallel connections are less likely to experience partial shading issues, but increased current does mean greater energy loss and overheating potential through thicker cables.
Hybrid Configurations
Most new PV systems use hybrid configurations which incorporate both series and parallel connections in order to adapt voltage and current to what is needed at a given time. These configurations cater to the diverse energy production requirements of different applications—these can include integration with inverters or storage devices. Properly designed hybrid systems allow operators to achieve structural shading or equipment failure while still meeting their goals for efficiency, power output, and flexibility.
New Considerations
Recent advancements in technology have introduced modernized versions of traditional configurations like power optimizers and microinverters. These devices allow for panel-level optimization by performing individual panel-level enhancement to mitigate losses due to shading or underperformance. Evidence indicates that systems with microinverters can outperform the energy yield of systems with traditional setups by as much as 25% in sub-optimal conditions.
With the correct choice of solar panel interconnection type, along with the addition of other high-technology components, PV systems can be tailored to meet particular energy requirements, climatic parameters, and operational objectives. The design of the system ensures that there is not only optimum performance but also dependable performance over time.

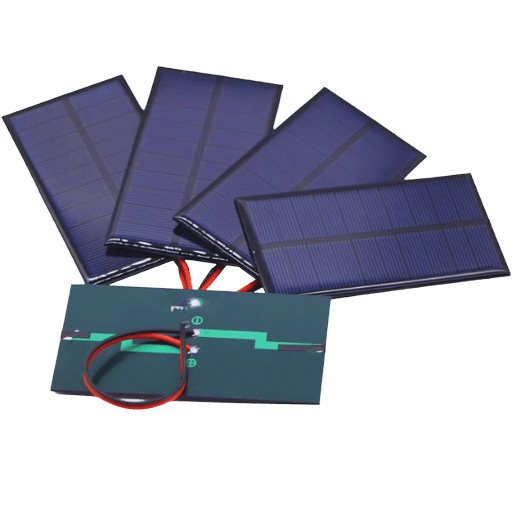

How Do You Wire Solar Panels in Series?
Step-by-Step Wiring in Series Process
Grasp Series Wiring
Connecting solar panels in a series is accomplished by linking the positive terminal of one solar panel to the negative terminal of another. This configuration increases the summed voltage of the array while maintaining the current value of a single panel. For example, wiring three solar panels with a voltage of 20V and 5A current in series will result in 60V and 5A current.
Collection of Tools and Materials
Make sure to gather all the required components including the solar panels, mounting solar charge controllers, and connecting cables that have MC4 connectors. During the process, ensure you have a multimeter with you to confirm connections and check the electrical values.
Inspect Solar Panels
Inspect each solar panel for signs of damage or defects before wiring them. Also, be sure to check each panel’s voltage and current rating as lower rated panels connected in series to higher rated ones will not only become highly inefficient but also get damaged over time.
Mount the Solar Panels
Position the Solar Panels at the required location which is ideally where maximum sunlight exposure is guaranteed. Make sure to consider orientation and tilt angles to make certain they are aimed in a straight line towards the energy source for optimum energy generation. Finally, secure the panels using the supplied mounting brackets to ensure full stability.
Link the Panels in Series
- Start with the positive (+) side of the first panel and the negative (-) terminal of the second panel.
- Use connector cables to join the positive terminal of the first panel to the negative terminal of the second panel.
- For additional solar panels in the series, follow the same procedures. After finishing the connections, make sure that the final positive and negative terminals in the series array are left open for the controller connection. With these last connections, the terminal marked positive and the terminal labeled negative will be blocked and unusable.
Check the Connections
Using a multimeter, check the voltage at the positive and negative terminals of the array that is connected in series to determine if their values meet expectations. Verified voltage should correspond with the summation of all individual panel voltages. Any variation may suggest some loose or improper connections are present.
Interconnect to Charge Controller or Inverter
Connect the positive and negative terminals of the array, which is connected in series to the specific input ports of the charge controller. Always check that the charge controller accepts the voltage and current from the series array. From the charge controller, link to the battery bank or inverter while observing the wiring configuration that is specific to the system.
Examine the System
After completing the connections, test the system to verify its functionality. System voltages and currents should be checked at different locations within the system to ensure they are within the expected limits. It is also necessary to verify that the solar panels are operating optimally and without malfunctions.
Wiring solar panels in series increases the voltage of the system, making it more convenient for use in long-distance power transmission and high-voltage applications. These include interfacing with an MPPT (Maximum Power Point Tracking) charge controller. Adding surge protection, along with other safety measures, further enhances system reliability and longevity.
Advantages of Solar Panels Wired in Series
Increased System Voltage
The voltage of the system is raised when solar panels are connected in series. With four 20V 100W solar panels, the voltage will be 80V. This voltage is beneficial when there is a need to reduce power loss, especially during long distance transmission.
Works Well With MPPT Charge Controllers
An MPPT charge controller functions at the highest efficiency when its input voltage is much greater than the voltage in the battery bank. With series combinations, the required voltage levels are met which makes the controller perform better and ensure more energy is collected.
Reduced Current and Improved Cost Efficiency
When solar panels are wired in series, the current in the system flows at the same level as a single panel while the voltage increases. Less current results in reduced need for thicker, expensive cables, which means lower overall system costs.
Improved System Efficiency
Systems with higher voltage tend to have improved efficiency when transmitting power over long distances since there would be lower resistive losses compared to low-voltage systems. This ensures that the generated power is transmitted to its destination more efficiently.
Managing Cables More Efficiently
Cabling for series wiring is less than that required for parallel wiring, which simplifies installation and reduces the complexity of system layout. It helps maintain an orderly setup without clutter.
Works Well With High-Voltage Equipment
Large inverters and other power handling devices often have higher input voltage requirements which are simpler to obtain with solar panels wired in series. Component integration within the system is smoother.
The series configuration of solar panels leads to increased and more readily accessible voltages. This configuration is ideal for advanced applications as it improves system performance and lowers costs while ensuring reliability and efficiency.
Common Issues When Solar Panels in Series Are Not Working
If two or more solar panels are connected with differing panel specifications, it can cause suboptimal energy harnessing.
When solar panels are connected in series, differing power output, voltage, or current can lead to performance issues. The overall output from a string of solar panels is directly influenced by the least capable (or weakest) panel in the series. This phenomenon is often referred to as the ‘achieved string performance.’ For example, in a setting where one panel has the capability of producing 300W while the other can only achieve 250W, the setup would only utilize the lower wattage. Consequently, the efficiency output is lower than intended.
Impact of Shadow on Solar Panels
Shading poses a more significant problem for series arrays because a solar panel which is either fully or partially shaded can have a drastic impact on the total output of the system. Shading one panel in a series string reduces its current output, which in turn impacts the entire series string. This is a direct consequence from the wiring of the circuits in series, since current is constant and flows throughout the unit. The use of bypass diodes in panels can reduce these effects, but it will not eliminate lost performance.
Loose Connections or Faulty Wiring
Loose or improperly connected wires may impede electrical flow due to insufficient conductivity. This issue is even more pronounced in series circuits, where one interruption in the ‘loop’ stops current flow. To mitigate these problems, maintenance of all interconnecting links, boxes, and cables is required to meet operational standards.
Temperature Changes and Voltage Output
The operation of solar cells is directly affected by temperature changes. In particular, high temperatures may limit the voltage that a panel can output, which could create problems for systems with specific operating voltage ranges. For systems with high precision, variability in temperatures may cause inefficiencies or improper system behavior.
Damaged Components of Solar Panels
External damage such as broken glass and internal damage of layers of a panel affect the flow of electricity, which results in the underperformance of the string and the panel. Similarly, old internal parts like bypass diodes or contacts that have diminished lose resistive properties and hinder energy movement in the circuit.
Incorrect System Sizing and Design
Another crucial challenge arises from a weak system design. If the voltage from the series string is higher than the inverter’s maximum input voltage or lower than the minimum, it will not work optimally. The calculation of design parameters should be based on the system’s temperature coefficient, voltage drops, and inversely, an inverter’s specifications must also be taken into account.
Degradation Over Time
The aging of solar panels directly increases their level of degradation, lowering their power output, best minimized with solar cells of the highest caliber. The partial degradation of certain components, such as a series circuit, leads to a deepening performance gap. On average, panels degrade at a rate of approximately 0.5% to 1% annually, depending on the manufacturer and environmental conditions.
Addressing these challenges enables operators to enhance the level of performance achieved by solar panels operating in series. Regular maintenance, professional design planning, and scheduled inspections are critical in order to achieve long-term efficiency and reliability.
Why Choose Solar Panels in Series vs. Parallel?
Understanding Series vs. Parallel Connections
The decision to connect solar panels in series or parallel configurations largely depends on system requirements. For example, grid-tied inverter systems require higher array voltages, which can be achieved by series connections. These connections keep the current constant while increasing the array voltage. Alternatively, certain off-grid systems with battery banks that require high current outputs are better suited to parallel connection configurations. These types of connections increase the array’s current while maintaining the stable voltage. Having multiple configurations is advantageous as a specific configuration can be tailored to the particular energy demands and design specifications of the solar power system.
Benefits of Series and Parallel Configurations
As far as the advantages and disadvantages of series vs. parallel configurations are concerned, their integration has certain benefits for each application individually based on its requirements. Series connections are more advantageous for systems where voltage elevation is needed to reduce energy losses over long distances or for higher operational energy systems. In contrast, parallel connections are more advantageous for the elevation of the current, aiding in greater energy reserve storage and more reliable energy delivery in battery bank systems. The decision is made based on what the focus is on, be it system efficiency or system performance.
When to Use Solar Panels in Series vs. Parallel
Evaluate the following factors when choosing between series or parallel connections for solar panels:
- Use Series Connections when the system needs a higher voltage to match the compatibility inverter or charge controller. This connection is also useful in reducing energy losses due to longer distances between cables.
- Use Parallel Connections when the system requires an increase in current capacity, accommodates larger battery banks, or continues to operate in the presence of partial shading on other panels since shading on one panel will have a negligible effect on the other panels.
Determine the most efficient configuration based on your system’s voltage and current requirements.

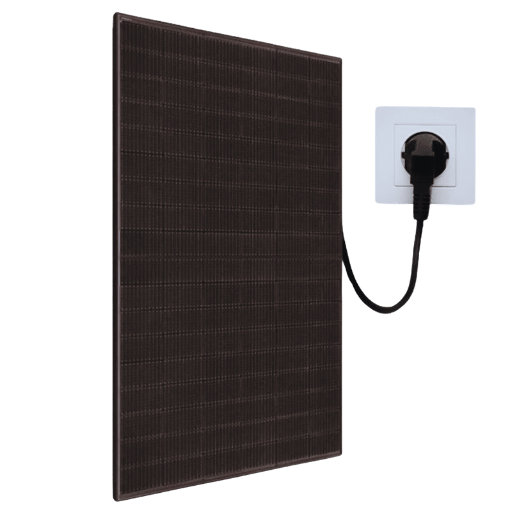

What Role Does the Inverter Play in Solar Panel Wiring?
The Importance of an Inverter in a Solar PV System
In a solar photovoltaic (PV) system, the direct current (DC) produced by the solar panels is transformed into alternating current (AC) electricity by the inverter. In a household, the appliances, systems, and the electrical grid operate on AC power. An inverter is essential in the solar industry as, without it, the energy produced from solar panels is incompatible with most electric devices. This is of great importance as many electronic devices depend on solar energy.
String inverters and microinverters represent the modern type of inverters that are equipped with added features, go far beyond just transforming energy from DC to AC. For example, they maximize energy production by ensuring that the maximum power point tracking (MPPT) processor works efficiently even in the presence of shading or temperature fluctuations. Many other advanced inverters allow users to monitor energy generation, system performance and remotely diagnose issues due to the advanced monitoring features incorporated in many modern inverters.
Inverters have become vastly more efficient throughout the years. Today’s high-grade inverters that one can purchase from the market can reach conversion efficiencies as high as 98%. Moreover, certain hybrid inverters incorporate batteries with the solar system, which allows for the storage of surplus energy to be used later and supplies backup power when the grid is down. This feature adds to the strength and independence of the system.
As this market rapidly expands, picking the inverter that fits best with the solar PV system becomes very important as it heavily affects energy yields, reliability, and even the cost efficiency of the renewable energy solution.
Connecting Solar Panels to the Inverter
Correctly interfacing solar panels with an inverter is crucial to optimizing system safety and operational efficiency. The first step for an installer is to determine the configuration of the solar array, which may be set up in series, parallel, or a blend of both. A series connection increases voltage, while parallel increases current at a constant voltage.
With the majority of residential and commercial solar installations, utilizing individual solar cells will require the combined voltage and current of the solar array to work with inverter specifications. Most modern inverters possess what is commonly referred to as a maximum input voltage range, which for bigger systems is often in the ballpark of 400V to 1,000V. By way of example, a solar panel with an open-circuit voltage of 40V will have its output summed with the other panels in series so they yield 10 panels or 400V.
The tracking capability of the inverter also has to ensure they can dynamically monitor changes of the array power to match the array’s voltage and current performance. In many modern, advanced designs one can find numerous inputs for Multi Power Point Tracking or MPPT. This innovative design feature allows for different tilt angles or types of panels to be integrated into one system with no compromise on performance.
Also, protective elements must be added to the procedure of making the connections. These safety measures include the DC isolators, string fuses, and surge protection devices to provide defense against overcurrent and voltage spikes. Grounding the system is equally important to mitigate electrical fault risks and reduce threats posed during lightning strikes or system failures.
When connecting the panels, the solar array’s positive and negative outputs are connected to the associated DC ports of the inverter. Transmission losses must be reduced by wisely selecting cable cross-section areas within the recommends guidelines of 4mm² to 10mm² depending on the length of the cable and the current it carries. All local electrical codes as well as identification of connections and labeling must be followed.
After finishing all electrical connections, the system needs a check for proper voltage and current levels about his outputs to avoid operating outside the parameters of the inverter. Achieving optimization while reducing faults and inefficiencies enables the solar PV system to operate at peak performance.
Maintaining Efficiency with the Right Inverter
Choosing the right inverter is crucial for optimizing the efficacy and lifespan of a solar photovoltaic (PV) system. In modern inverters, features are included to enhance power conversion and reduce energy losses. Other factors of considerable importance include the type of inverter (string, microinverter, or hybrid), efficiency ratings, and alignment with the specifications of the solar array.
String inverters, for example, are very efficient in the solar industry, reaching an astonishing 97-99% conversion efficiency. However, they work best for systems that receive direct sunlight for most of the day and have little to no shading. Microinverters work best in installations with diverse exposure to the sun because they work independently on each panel and eliminate shading issues. There is a growing acceptance of hybrid inverters, which combine functions of solar and battery inverters. This is a result of their exceptional capability to manage stored energy and grid interconnectedness.
In addition, maximum power point tracking (MPPT) is one of the most sophisticated features of modern inverters in the solar industry, allowing them to pivot with changes in sunlight intensity to capture as much energy as possible. Without MPPT tracking, a system’s energy output could fall by as much as 20-30% during less than optimal conditions. In addition, one must also assess the inverter’s capability to manage peak loads and verify that it is not oversized concerning the system’s panels. For instance, a typical residential inverter is rated 3kW to 10kW, with efficiencies of up to 98%.
Lastly, the monitoring features of new advanced inverters offer the possibility of monitoring the performance of two or more solar panels in real time. This approach enables rapid detection of a possible drop in performance, a fault in the system, or any other issues that would otherwise increase the maintenance or downtime costs. The selection of a dependable, high-efficiency inverter will not only increase the energy output value of the system but will also increase the operational life of the entire PV system, thereby yielding higher ROI.
How to Ensure Safe and Efficient Solar System Wiring?
Following the Electrical Code for Safe Installations
Compliance with electrical codes, including the National Electrical Code (NEC) in the USA, has a great impact on the safety practice of solar system wiring. One of the fundamental requirements of the NEC is that conductors must be appropriately rated for voltage and current levels for the system. For instance, PV wires rated UL 4703 are custom manufactured to withstand exposure to UV radiation, high temperatures, and other fierce outdoor conditions, fortifying the durability of solar panels that are wired in parallel.
Another key NEC requirement is adequate grounding and bonding of the system. Reducing the risk of electric shock and damage to the system from lightning or surge power is done by grounding metallic components. Moreover, the NEC wiring instructions require the conductors to be anchored and supported to the vertical and horizontal runs of the framing at intervals, using cable ties or outdoor-rated clamps, to avert hazards such as abrasion, wire sag, or sub-movement of the wires.
In cases of shorting of a circuit or surging of current, the NEC instructions have incorporated overheating of circuits with protection devices in the form of fuses or circuit breakers. In addition, the maximum voltage drop recommended is confined to 2 to 3 percent of total voltage of wires, which is also regarded as optimum efficiency and effectiveness from long cable runs.
Another vital aspect is the enclosure ratings, such as NEMA ratings for junction boxes. For example, for solar panels that are wired in parallel, NEMA 3R or higher is required for outdoor installations to safeguard wiring connections from environmental factors such as rain, dirt, and ice.
Optimal performance and safety of solar PV systems are achieved by combining compliance with electrical codes and robust design standards on system safing. The proper implementation of wiring practices not only protects but also improves the system’s efficiency and reliability while meeting technical and regulatory requirements.
Using the Correct Connector and Solar Cable
Selecting the appropriate connectors and solar cables is crucial in the design and operation of photovoltaic (PV) systems. In modern PV systems, MC4 connectors are the most common due to their reliability and ease of installation. These connectors provide secure and weatherproof seals, along with UV resistance and IP67 or IP68 ratings, which protect against water and dust ingress.
On the other hand, solar cables are made according to certain technical standards. Usually, these cables are produced as single-core double insulated cables, designed to withstand temperatures from -40ºC to 90ºC and are insulated with cross-linked polyethylene (XLPE) or similar materials. Additionally, solar cables are rated for 1.5 kV (1,500 volts) and must be UV, ozone, and mechanically resistant to harsh outdoor conditions.
The use of cables with the correct conductor size has its significance. Other than insufficient current rating, cables tend to have excessive voltage drops and posses thermal risks. In systems functioning at twenty amps with 30 meter long cables, it is standard practice to use 6 mm² conductors to prevent voltage drop from exceeding two percent which, as is known, is a benchmark for system efficiency.
To accomplish maximum efficiency in Photovoltaic systems, active crimping and contact techniques should be used to reduce contact resistance, which is the leading cause of energy wastage in PV systems. The use of good quality connectors and strong solar cables in the PV system is claimed to guarantee good energy transfer, security in operations, reliability in performance over time, and industry standards along with customer contentment.
Tips for Hiring a Professional Solar Installer
Examine Certifications and Credentials
Make sure the installer is certified by a reputation, for example, NABCEP (North American Board of Certified Energy Practitioners). This would indicate that the installer is certified by a licensed organization and meets industry standards.
Evaluate Experience and Expertise
Consider installers with documented experience in designing and installing solar systems which are to your particular specifications. Should be able to provide references or testimonials from past customers.
Assess Licenses and Insurance
Check if the installer possesses the required state or local licenses and if he carries sufficient liability and worker’s comp insurance.
Check Custom Proposals
Get at least two bids and ensure every single one includes a detailed description of costs associated with equipment, specifications, warranties, and the estimated performance of the system.
Assess the Equipment Quality and Warranty
Make sure the installer uses high quality components that are with reasonable warranties and clearly mark the installation service warranted.
Check Customer Support
Go for an installer that is known for efficient support and after-installation services.
These steps will guarantee that you select a professional, reliable solar installer, allowing you to make informed decisions about your investment.

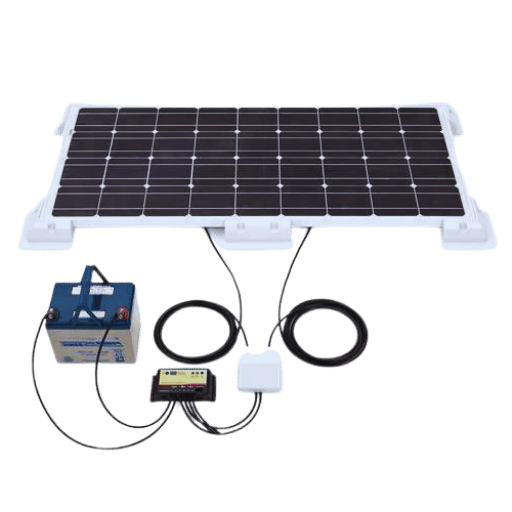

Frequently Asked Questions (FAQs)
Q: What are the benefits of wiring solar panels in series versus wiring them in parallel?
A: Wiring solar panels in series means connecting one panel’s positive terminal to another’s negative terminal. This increases voltage but keeps current constant. With parallel wiring, the positive terminals and negative terminals of the panels are connected together which increases current but keeps voltage constant. Specific requirements of the solar panel system including the type of inverters to be used determines the choice of series or parallel.
Q: What are the considerations for wiring solar panels in parallel?
A: Parallel wiring is advantageous when you want a lower voltage while increasing current. This is particularly useful for solar power systems where shading might impact one of the panels as it ensures that the entire array works efficiently. Additionally, it allows greater flexibility for future upgrades by enabling more panels to be easily added to the system.
Q: What is the process of wiring solar panels in parallel?
A: In order to wire solar panels in parallel, all of the positive terminals of the solar panels have to be interconnected with parallel wiring, while the negative terminals also have to be interconnected in a similar manner. This technique requires all connections to be made properly, usually with a particular solar connector meant for parallel solar wiring. It is important to make certain that the wiring for solar panels is sufficient for the level of current that is expected to pass through it.
Q: What are the advantages of connecting solar panels in a series?
A: When connecting solar panels in series, the overall voltage of the array is increased, while the current remains at the same level. This is useful for systems which require higher inputs, like some solar inverters. Moreover, series wiring is likely to be more cost effective with regards to cabling since higher voltage would require lower current, which means smaller cables would be needed, thus reducing costs.
Q: Is it possible to integrate both series and parallel connections in my solar panel configuration?
A: Absolutely. It is common in the installation of solar panels to combine series and parallel connections. This, alongside sub-arrays of series-wired panels in parallel, is what is considered a solar panel array. This method optimizes the design and performance of your solar power system.
Q: What type of wire is best for solar panel connections?
A: For the connections of solar panels, pv wires are the most appropriate as they are specially designed for solar power applications. PV wire is tough and can endure weather elements, durable against flexible hawser that may bust solar panel systems’ electrical load. It is essential to select the proper wire gauge based on the distance between the panels and the current carried in order to reduce the energy loss in the system.
Q: What do solar connectors do for wiring your solar panels?
A: Solar connectors, for example MC4 connectors, serve to join solar panels in a manner that is both tight and secure. A solar connector tightly seals each joint against weather elements like wind, enabling the prevention of water and chemical corrosion. They enable fast connections and disconnections which simplifies wiring the solar system in series or parallel configurations.
Q: What considerations do I need to keep in mind for a solar panel system design?
A: For solar panel system design, pay attention to the required power output, space available for installation, the orientation and tilt of the panels, and if series or parallel wiring will be used. Also, address environmental aspects like the presence of shading and local weather, and ensure that all components, including solar inverters and batteries related to your solar design, are cohesive and compatible.
Q: To what degree does shading impact the output of solar panels configured in series and parallel?
A: Shading has a detrimental effect on solar panel output, specifically with regard to series configurations. In this setup, the performance of one solar panel influences performance of the entire string. In parallel configurations, the shading only affects the specific panel that is covered, while the remaining components continue solar energy production unhindered. For this reason, parallel wiring is advantageous for regions that experience partial shading.
