Understanding Wire Low Voltage: Comprehensive Guide to Low Voltage Wiring and Cabling

Low voltage cabling and wiring are crucial aspects of contemporary electrical systems that have a wide range of uses, such as security systems and telecommunications, among others. This all-inclusive manual seeks to clarify the fundamentals of low-voltage technology by discussing its benefits, safety precautions, and installation methods. It also offers information on different kinds of cables used in low voltage applications, some regulatory requirements related to their usage, and recommendations for ensuring they operate at their best whether you have been long enough in this profession or just starting out, whether you are experienced or a beginner – The intention behind writing this guideline is to provide the necessary understanding needed for easy dealing with complexities associated with working on systems powered below 1000 volts.

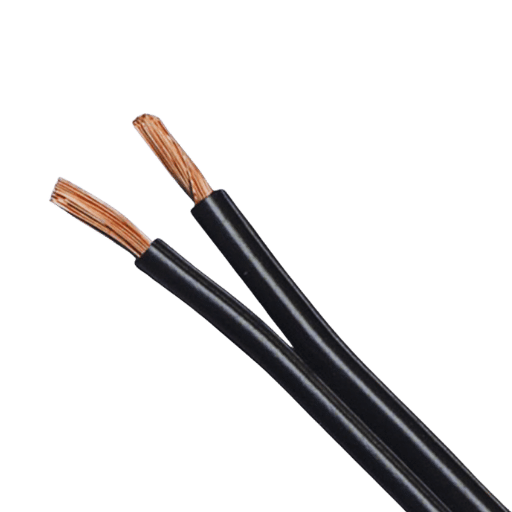

What is Low-Voltage Wire, and How is it Different from High-Voltage Wire?

Defining Low Voltage Wire

A low-voltage wire is an electrical conductor that works with voltages, usually between 50 and 1000 volts. It is different from high-voltage wires that operate beyond 1,000 volts. Because it is safe and works well with many gadgets, this type of wiring is often used in telecommunications, data transmission, control circuits, and security systems. Typically, insulation materials will be packed into their design along with certain requirements so that they can reliably perform their function under the intended working environment.

Differences Between Low Voltage and High Voltage Wire

The main differences between low-voltage and high-voltage wire are intended applications, insulation requirements, safety standards, and installation methods. For residential or commercial buildings where people live or work, light insulation systems that operate at 50-1000 volts (considered safe) are used. They’re also much lighter, which makes them easier to handle and route. On the other hand, heavy-duty insulator materials are required by high-voltage wires because they deal with electrical arcs and short circuits caused by greater electrical stresses. Due to this, it should be constructed more strongly than normal so as not only to survive those conditions but also to prevent any accidents from happening around it, such as electric shock or fire outbreaks. High voltages above 1000 volts call for stringent safety precautions during their installation process which may need special training programs too… The selection between low-voltage wires vis-a-vis those rated higher depends on specific electrical demands alongside safety considerations applicable in each case.

Common Applications of Low-Voltage Wire

Low-voltage wire is much used in many areas because it is safe and efficient in electrical installations. Some of its common applications include the following:

1. Telecommunications: This kind of wire constitutes a major part of phone lines as well as data networks which are necessary for reliable communication and internet services.
2. Security Systems: For proper monitoring and security that ensures minimum risk of electric shock during installation and maintenance, alarm systems, CCTV installations among others need to rely on low voltage wiring.
3. Lighting Systems: In landscape lighting or architectural lighting where energy efficiency is required while still giving room for design and installation flexibility low voltages wires cannot be left out.

These uses illustrate how adaptable safety features can be improved by using different environments with low-voltage wires.

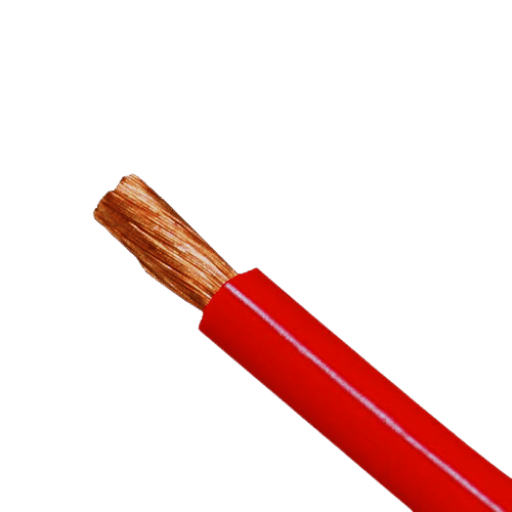

How to Choose the Right Low-Voltage Wire for Your Electrical Project?

Factors to Consider When Choosing Low-Voltage Wire

1. Voltage Rating: To prevent it from getting too hot and breaking down, the wire should have a voltage rating that fits the electrical system requirements.
2. Current Capacity: It should be checked whether or not this wire can carry the expected current without overheating.
3. Wire Gauge: The selection of an appropriate wire gauge should follow American Wire Gauge (AWG) standards and take into account both the distance over which it will run and the total amount of amps being transmitted through it.
4. Insulation Type: Insulation materials should be chosen based on what they can withstand in terms of exposure to moisture, chemicals, temperature extremes, etc., around where they are going to be used.
5. Application: Determine what kind of use is intended for each wire- e.g., flexibility might matter more when installing wires into tight spaces, while outdoor installations may require more robustness against harsh weather conditions…etc.
6. Regulatory Compliance: Make sure any wires chosen meet local electrical codes and are safe and reliable in accordance with applicable regulations.

Understanding Wire Gauge and Its Importance

In terms of the American Wire Gauge (AWG), wire gauge is a crucial element in low-voltage electrical installations because it affects the current-carrying ability and resistance of a wire directly. The diameter of the wire is inversely proportional to its gauge number; thus, lower gauges represent thicker wires that can carry higher currents with less resistance. Choosing the right size wire is important for preventing voltage drop across long distances which ensures efficiency and prevents overheating. For applications where suppleness is important such as in complex or landscape lighting setups, choosing an appropriate wire thickness should be done while considering safety measures so that they remain functional as required by design standards. Properly selecting gauges also improves durability and reliability in any electric power system.

Types of Cables Used in Low-Voltage Applications

Different kinds of cables are regularly used in low-voltage applications based on certain needs and conditions. Listed below are three commonly utilized forms:

1. Power Cables for Low Voltages: They are manufactured to handle up to 1,000 volts and can be found in homes, offices, factories etc., where electricity is distributed for use by humans or machines. Typically such cables have a robust insulation material which is weather resistant thereby ensuring safety and reliability in all environments.
2. Control Cables: These are meant for transferring signals as well controlling power supply to devices within automation systems. The shielding and insulation of control cables safeguard against electromagnetic interference making them suitable for use in process control areas of factories where many machines communicate with each other through wires.
3. Data Communication Cables: This category comprises networking or telecommunications wires such as twisted pair cable (TPC) and Coaxial Cable (CC). TPC helps facilitate high speed data transfer while minimizing loss whereas CC enables devices within low voltage systems communicate effectively with one another.

Each cable type is important for enhancing performance and guaranteeing safety during low-voltage electrical installations. It is therefore necessary to carefully select them depending on application requirements so that reliable system functionality can be achieved.

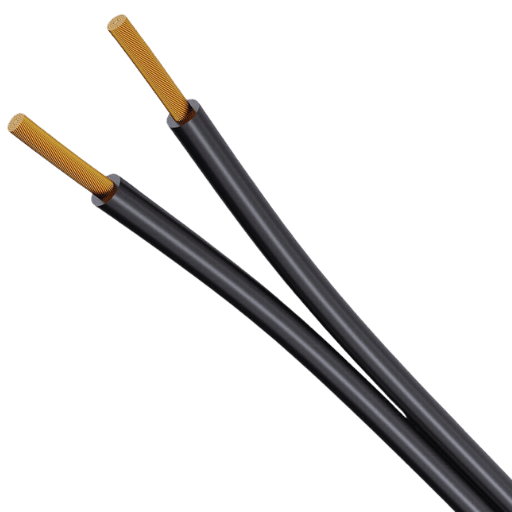

How to Install Low-Voltage Wiring in Your Home?

Step-by-Step Guide to Installing Low-Voltage Wiring

1. Plan Your Installation: Decide what you want to do with the wires and where you are going to put them. Then create an elaborate map that shows how everything will be connected together.
2. Get Tools and Materials: You need a number of tools like cable cutters, wire strippers, screwdrivers etc., along with necessary low-voltage cables according to your plan.
3. Pick Cable Type: Identify the right kind of low voltage cable required for this particular application i.e. power supply, control system or data communication link.
4. Fit Cable Supports: Use cable trays or clips fixed on walls/ceilings etc., so that these supports meet local code requirements without fail while holding wires securely in place.
5. Wire Routing: Route wiring neatly without any sharp bends between the source location and the target device areas. Also, avoid high voltages, which can cause interference.
6. Make Connections: Connect each cable with its appropriate device, ensuring tightness and adherence to the manufacturer’s instructions.
7. Test Installation: Test all connections after completion to confirm system functionality as well as signal integrity plus power delivery capability too.
8. Securely Label: Tie up loose ends by securing cables adequately and then labeling them appropriately for future reference during maintenance or upgrade works once installed and tested.

Tools and Materials Needed for Installation

To install low-voltage wiring successfully, you should have the following materials and tools at hand:

Tools

• Cable Cutter: For cutting cables to pre-set lengths.
• Wire Stripper: Remove the insulation from the wires whenever necessary.
• Screwdriver: This is for installing outlets, connections, and other fixtures.
• Drill: In case there is a need to make holes for the passage of cables.
• Fish Tape: This is useful for guiding cables through walls or ceilings.

Materials

• Low-Voltage Cable – Choose appropriate cable type depending on the application (e.g., CL2, CL3 or Ethernet).
• Cable Supports – Secure wire using cable trays, clips or raceways.
• Connectors and Terminals – Ensure that devices being powered or connected have correct linkages.
• Electrical Tape – Use this to hold down connections and to bond multiple wires together.
• Labels – These are used to mark cables after installation for easy maintenance in the future.

The availability of these tools and materials therefore enhances an easy installation process as well as realization of safety regulations.

Common Mistakes to Avoid During Installation

When you install wiring that operates at low voltage, it is important to avoid common mistakes. Here are some critical errors you should watch out for:

1. Insufficient planning: If you fail to plan the layout and installation process thoroughly enough, you may make mistakes about cable lengths, materials required or potential hindrances in the environment for fixing them. Always come up with a detailed plan of how you will carry out your installation before embarking on it.
2. Overloading circuits: Connecting many appliances onto one circuit can exceed its power capacity thereby causing overheating or even failure. Make sure that devices are distributed evenly across different circuits based on manufacturer’s loading specifications.
3. Disregarding local codes: Failure to comply with building regulations as well as electrical safety standards could lead to non-compliance issues and hazards which affect people’s lives near these installations. Always confirm whether what you have done meets the requirements of those living around such areas including types of cables used, ways they are installed and securing methods among others.

If you keep these points in mind; then there is no doubt that your low-voltage wiring will be both safe and efficient.

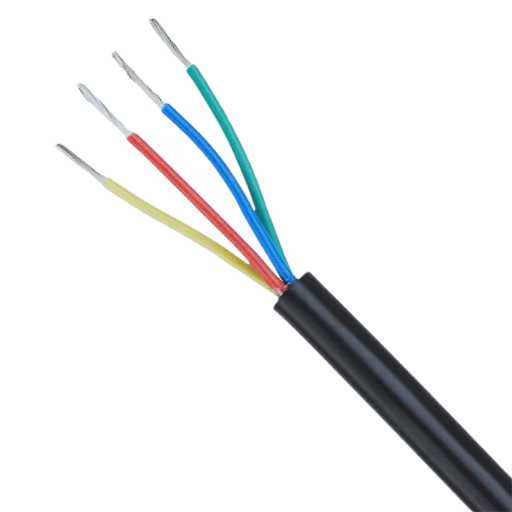

What are the Best Practices for Low-Voltage Outdoor Lighting?

Choosing the Right Low-Voltage Landscape Lighting

When picking landscape lighting of low voltage, you should consider the following:

1. Lumens and Brightness – determine how bright you want it to be in certain areas. Use a fixture that has enough lumens for what you need the light to do such as accenting or security.
2. Type of Fixtures -Decide between path lights, spotlight fixtures, or wall mounted options depending on what kind of effect you are going after and where they will be used at.
3. Energy Efficiency – Get LED fixtures whenever possible since these consume less power than traditional bulbs while lasting much longer too.
4. Voltage Compatibility – Make sure that all your fixtures work with the transformer being used so there are no electrical problems and everything runs as best it can.
5. Durability – Choose materials which can survive outside conditions like metals resistant against corrosion or plastics built for weather resistance.

If followed correctly, this advice should lead to successful and dependable low-voltage landscape illumination.

Installing Low-Voltage Landscape Lighting Wire

When you are putting the low-voltage landscape lighting wire, here are some necessary steps to ensure safety and make sure that it is working properly:

1. Design your layout: Make a detailed plan showing where fixtures will go, wire paths and transformer placement before starting installation. This will help you know how much wiring is needed and reduce unnecessary connections.
2. Choose the right wire: Use a gauge of wire suitable for the distance of your run. Rule of thumb is 12 gauge for anything over 100 feet and 14 gauge for shorter runs but thicker wires drop less volts.
3. Digging trenches: Burying wires require shallow trenches dug along its path, approximately 6-8 inches deep should be enough to protect it from physical damage while allowing for adjustments in the future.
4. Laying down the cable: Put the wire inside trench avoiding sharp bends or kinks, let it run from transformer to each fixture following your previously made layout plan.
5. Connecting fixtures: The way lighting fixtures are connected with this type of wiring may vary by manufacturer, so just read the instructions. All connections must be tight and straightened out for optimum performance.
6. Testing system: After connecting every light together or at least all lights that can be reached if there are any far away from power source; turn on power supply temporarily to see if they work fine. Look out for bright even illumination across the whole yard area covered by these lamps as well ensure every single bulb lights up as expected when powered up.
7. Covering & protecting: Once everything is working properly, cover exposed parts with soil or mulch, then clean around, leaving no trace besides hiding them from being seen, which adds protection against weather elements such as rain or snow later on while still making sure people do not trip over during daytime too much hence injuring themselves unnecessarily.

By following these steps, one can install low-voltage landscape lighting wire efficiently and according to the code.

Maintenance Tips for Low-Voltage Outdoor Lighting Systems

To guarantee long life and the best performance, one must always maintain low-voltage outdoor lighting systems. Some of the tips for maintenance are as follows:

1. Inspection: Fixtures and connections should be inspected regularly for wear, corrosion or damage. Ensure that fixtures are aligned correctly and not blocked by overgrown plants.
2. Cleaning of Fixtures: Dust, dirt and other forms of debris may accumulate on top of lighting fixtures hence reducing their brightness. Wipe lenses gently using a soft cloth and mild detergent so as to achieve maximum light output.
3. Wiring Checkup: Underground wiring should be examined occasionally to see if there is any part that is exposed or damaged. Ensure that wiring remains well-buried securely without being interfered with by plant roots among other things.
4. System Testing: Carry out regular tests on the whole system of lights; this will help in identifying malfunctioning bulbs or problems associated with transformers. Any issue found should be fixed on time to avoid failure.
5. Seasonal Changes: Evaluate the entire system after extreme weather conditions particularly winter storms. Replace any component which may have been destroyed by such events as well as adjusting angles of light to fit changed landscape designs if need be.
6. Bulbs’ Choice: Always use bulbs that match your fixtures and can withstand outdoor environment when replacing them. This saves energy because they work efficiently under these circumstances besides being strong enough too.

Through observing these guidelines for maintaining low voltage outdoor lighting systems, you will be able to increase their durability as well resilience thus making sure they serve you better throughout their lifespan.

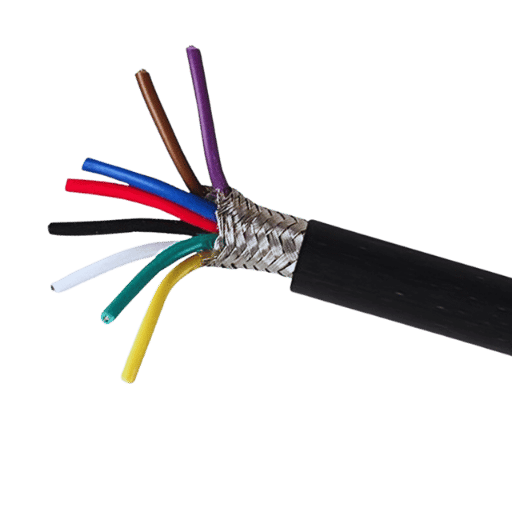

What Types of Low-Voltage Systems are Used in Modern Smart Homes?

Overview of Low-Voltage Systems in Smart Homes

In current smart homes, low-voltage systems consist of intelligent lighting, security systems, and home automation controls among other things. These systems work at lower voltages – typically 12 to 24 volts – which makes them safer and more energy-efficient. Common applications include garden lights, doorbell cameras or smart thermostats that all communicate via central hubs or networks. They can be managed from afar through smartphones or voice assistants thanks to integration with wireless protocols such as Zigbee, Z-Wave or Wi-Fi thus enhancing convenience and security.

Integrating Low-Voltage Wiring with Smart Home Devices

Creating an efficient smart home environment requires the integration of low voltage wiring with smart home devices. In order to do this, you must first plan out the layout of your low-voltage system so that wire routes are optimized for functionality and accessibility alike — but it doesn’t stop there: Use appropriate connectors or junction boxes where necessary to ensure sound connections between equipment and low voltage wires; additionally; take advantage of smart home hubs which can serve as intermediaries between different parts thus enabling them to communicate with each other seamlessly; also make sure that devices are compatible with such an infrastructure by checking if their voltage requirements meet those provided in the latter. Following these steps will help homeowners achieve reliable integration between their various systems and smart home appliances based on lower voltages.

Benefits of Using Low-Voltage Systems in Smart Homes

There are many advantages to using low-voltage systems in smart homes. First, they are more energy efficient. Since low-voltage systems use less power, they decrease utility bills and reduce environmental impact by decreasing carbon emissions. Second, these systems have a higher level of safety throughout installation and use, which helps prevent electric accidents that may occur with high-voltage counterparts. Thirdly, low-voltage wiring makes it easier to install and expand the system without major renovations being needed by homeowners; this is possible because they require smaller wires than those used in higher voltages. Last but not least important; integrating them into smart homes often increases connectivity features and automation possibilities, thus making devices work together better while allowing for management from anywhere remotely too.

Why is Structured Cabling Important in Low-Voltage Wiring?

What is Structured Cabling and What Is Its Role in Low-Voltage Systems?

Structured cabling is a method of installing cabling systems that are standardized and support many uses of hardware for easy communication within a building. In low-voltage systems, structured cabling acts as a foundation for data, voice, and video transmissions so that they can be reliably connected. This method helps to organize and manage the infrastructure of cables used in installations by making them less complex to install but better performing. When used in low voltage applications, this will allow homeowners to have more direct routes for information, which makes it easier to scale their system up later on down the road, also ensuring it is ready for any future technology advances!

Advantages of Structured Cabling in Low-Voltage Installations

Structured cabling in low-voltage installations is designed to be efficient and effective. This includes many things besides the point, such as reducing signal interference and optimizing bandwidth for faster data transmission. Besides being organized in a way that is easy for troubleshooting and maintenance, structured cabling also makes it easier for technicians to find out what’s wrong and fix it quickly. Also, this kind of wiring helps with future-proofing systems because they can handle new technology without needing too much rewiring done. It also has a modular design, which allows scalability where necessary, so if more connections are needed somewhere down the line, they can just plug into an existing outlet instead of having everything ripped out again. Last but not least, all safety concerns must be met; whether those rules come from industry standards or building codes is irrelevant since both should be observed when working on anything involving electricity below 50 volts.

Common Types of Structured Cables Used in Low-Voltage Applications

Many types of structured cables are used in low-voltage installations, each with different functions and performance criteria.

1. Category (Cat) Cables: These cables are mainly used for Ethernet networking. Cat5e, Cat6, and Cat6a grades provide different maximum data rates and frequencies to support VoIP or video conferencing, among other applications.
2. Coaxial Cables: Coaxial cables have a strong design which makes them ideal for cable TV and broadband internet connections. They consist of an inner conductor surrounded by insulation and then by an outer shield that reduces signal interference.
3. Fiber Optic Cables: Fiber optic cables use light to transmit data over long distances at high speeds. Single-mode or multi-mode fibers can be chosen for this purpose depending on whether one needs high-speed internet access or interconnection between data centers.

All these types of structured cable are necessary for efficient transmission of information within low-voltage settings, therefore facilitating various uses in both residential and commercial buildings.

Reference Sources

Wire

Electrical cable

Low voltage

Frequently Asked Questions (FAQs)

Q: What is low-voltage wiring?

A: Generally, low-voltage wiring refers to the kind of wiring that carries electricity at a maximum of 50 volts. Often, this type of wire is used for applications like doorbell systems, motion detectors, and even landscape lighting.

Q: Why is low-voltage wiring used in specific applications?

A: One reason why low voltage wiring is preferred for certain applications such as ethernet cables and landscape lighting is that it can be safer to use because it requires less costly materials like small wire connectors and smaller gauges of wire that don’t carry large amounts of power.

Q: What is direct burial wire, and when should it be used?

A: Direct burial wire belongs to the category of electrical wires that are put underground without additional conduit or protection. Quite often, it’s utilized when laying down low voltage lines for example in the case where outdoor electrical installations are required.

Q: How does low-voltage wiring differ from standard wiring?

A: Wire drawing with 50 volts or less characterizes Low-voltage wiring, which is usually applicable in cases where high power usage isn’t needed. On the other hand, Standard Wiring employed within a household circuitry usually utilizes voltages around 120v or above, which are suitable for powering domestic appliances and other high-current devices.

Q: What factors affect the installation cost of low-voltage wiring?

A: Factors such as cable length and type, installation complexity, need for special connector plugs designed specifically for individual types of wires involved as well as hiring an electrician have impact on how much you will pay for installing low-power voltage circuits.

Q: Can one wire a network with low-voltage wiring?

A: Yes, this is true. Ethernet cables or other types of systems that run on lower power are commonly assembled using low-voltage wiring. These devices work at 48v or lower, which is quite enough for data transmission without higher voltages.

Q: Where can low-voltage wiring be applied in residential areas?

A: Low voltage wiring has several applications in residential settings. For example, it can be used for low voltage landscape lighting, doorbell systems, motion sensors and home networking among others. Such installations enjoy the benefits of reduced costs and enhanced safety associated with lower voltages.

Q: How does safety improve when landscape lighting is installed using low-voltage wires?

A: The use of low voltage wires when installing landscape lighting helps to increase safety by minimizing risks associated with electrical shocks and fires. Since these systems operate under lower electric potentials, they become much safer not only to touch but also to live around within outdoor environments where people or pets may accidentally come into contact with them.

Q: What are some connectors used in low-voltage wire connections?

A: Twist-on wire connectors, crimp connectors and push-in connectors are some examples of wire connectors used for low-voltage connections during installations. The choice of connector depends on the specific application as well as the type of conductor being used i.e., copper core vs stranded wire etc.

Q: When should an electrical contractor be contracted for a project involving low-voltage wiring?

A: An electrical contractor should be contacted for any project related to low-voltage wiring whenever there is high complexity in installation process; compliance with local electrical codes becomes necessary or professional skills are required to achieve safe and reliable operation standards. If you have any inquiries or need support please reach out us now!
