N2XSR(AL)Y/NA2XSR(AL)Y

Q: Q: Voltage Application?

A: Full Medium Voltage spectrum: 3.6/6kV through 26/35kV .

Q: Q: Why Aluminum Wire Armor (AWA) instead of Steel?

A: Physics constraint. Steel is magnetic and acts as an inductor on single-core AC circuits, causing overheating. AWA is non-magnetic, eliminating this eddy current risk while retaining mechanical tensile strength.

Q: Q: Conductor options?

A: Copper (N2XSR) for max ampacity, or Aluminum (NA2XSR) for weight/cost reduction.

Q: Q: Function of the Copper Tape screen?

A: Field Stress Control. It manages radial electric fields and provides a calculated earth fault path.

Q: Q: Insulation type?

A: XLPE. Chosen for its 90°C continuous thermal rating, far superior to legacy PVC limits (70°C).

Q: Q: Outdoor installation?

A: Verified. The outer jacket utilizes UV-stabilized PVC (Type ST2), suitable for exposure or trench burial.

Q: Q: Manufacturing Standard?

A: IEC 60502-2 (Class 2 Stranded Conductors).

Q: Q: Sheath Colors?

A: Standard: Red or Black . (Black recommended for high UV zones).

3.6KV-35KV Single XLPE Insulation Aluminum Wire Armoured and PVC Jacket power cable

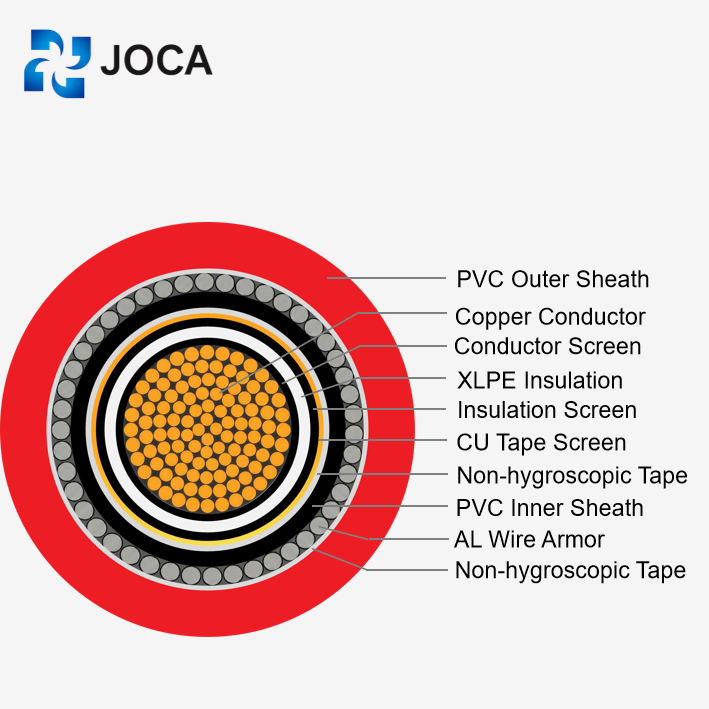

Conductor : Copper or Aluminum(Class 2 according to IEC 60502-2).
Insulation : XLPE
Metallic Screen : Copper Tape
Separation Layer : Non-hygroscopic Tape.
Inner Sheath : PVC
Armour : Aluminum Wire Armor (AWA).
Outer Sheath : PVC
Color : Usually Red or Black.

Save at least 30% on average

Product Description

N2XSR(AL)Y/NA2XSR(AL)Y : Product Description and Specifications

The N2XSR(AL)Y and NA2XSR(AL)Y series are engineered for Single-Core Medium Voltage applications (3.6kV–35kV). Crucially, the mechanical protection system utilizes Aluminum Wire Armor (AWA) instead of steel. Since steel generates magnetic heating (eddy currents) in single-core AC circuits, the non-magnetic AWA design eliminates this thermal risk. Simultaneously, the ‘Wire’ construction provides the longitudinal tensile strength required for vertical runs, distinct from tape-armored alternatives. The core is insulated with high-grade XLPE and finished with a weather-resistant PVC sheath.

Advantages

N2XSR(AL)Y/NA2XSR(AL)Y : Benefits and Features

Magnetic Neutrality (AWA): For single-core AC applications, Steel armor is strictly prohibited as it causes magnetic induction heating. We use Aluminum Wire Armor (AWA) to eliminate this eddy current risk while maintaining mechanical crush resistance.
Thermal Headroom: The XLPE insulation system is rated for 90°C continuous operation. This offers a significantly higher safety margin against thermal overload compared to standard thermoplastic limits.
Tensile Capability: Unlike tape armor, the “Wire” construction provides the longitudinal tensile strength necessary for vertical installations or high-tension pulls.
Screening Logic: A Copper Tape metallic screen is applied to control electrical field stress and provide a fault current path, encased in a Type ST2 PVC sheath for environmental sealing.

Dimensions/Parameters

3.6/6 kv Single XLPE Insulation Aluminum Wire Armoured and PVC Jacket power

Nom. Cross Sect. (mm2)	Conductor DC Resistance at 20°C (Ω/km)	Conductor AC Resistance at 90°C (Ω/km)	Inductance Trefoil formation (mH/km)	Inductance Flat formation (mH/km)	Current Capacity Trefoil in air (A)	Current Capacity Trefoil in ground (A)	Current Capacity Flat in air (A)	Current Capacity Flat in ground (A)	Short circuit current Conductor (kA)	Short circuit current Screen (kA)
25	0.727	0.927	0.451	0.498	167	154	171	157	3.58	1.14
35	0.524	0.668	0.428	0.474	202	184	207	188	5.01	1.14
50	0.387	0.494	0.410	0.457	241	216	246	221	7.15	1.14
70	0.268	0.342	0.386	0.432	300	264	306	269	10.01	1.14
95	0.193	0.247	0.371	0.417	363	313	370	318	13.59	1.14
120	0.153	0.196	0.357	0.403	417	355	424	359	17.16	1.14
150	0.124	0.159	0.345	0.391	471	395	478	399	21.45	1.14
185	0.0991	0.128	0.334	0.380	536	442	543	445	26.46	1.14
240	0.0754	0.098	0.330	0.376	625	501	627	499	34.32	1.14
300	0.0601	0.079	0.323	0.369	706	555	705	550	42.90	1.14
400	0.0470	0.063	0.312	0.358	805	617	797	607	57.20	1.14
500	0.0366	0.050	0.312	0.358	894	663	877	645	71.50	1.14
630	0.0283	0.041	0.302	0.348	993	720	967	695	90.09	1.14

6/10 kv Single XLPE Insulation Aluminum Wire Armoured and PVC Jacket power

Nom. Cross Sect. (mm2)	Conductor DC Resistance at 20°C (Ω/km)	Conductor AC Resistance at 90°C (Ω/km)	Inductance Trefoil formation (mH/km)	Inductance Flat formation (mH/km)	Current Capacity Trefoil in air (A)	Current Capacity Trefoil in ground (A)	Current Capacity Flat in air (A)	Current Capacity Flat in ground (A)	Short circuit current Conductor (kA)	Short circuit current Screen (kA)
25	0.727	0.927	0.467	0.513	169	154	172	157	3.58	1.14
35	0.524	0.668	0.443	0.489	204	184	209	187	5.01	1.14
50	0.387	0.494	0.425	0.471	243	216	248	220	7.15	1.14
70	0.268	0.342	0.401	0.447	302	263	308	268	10.01	1.14
95	0.193	0.247	0.383	0.430	365	313	372	318	13.59	1.14
120	0.153	0.196	0.369	0.415	419	353	426	358	17.16	1.14
150	0.124	0.159	0.362	0.409	475	392	481	396	21.45	1.14
185	0.0991	0.128	0.353	0.399	538	438	543	440	26.46	1.14
240	0.0754	0.098	0.340	0.386	627	500	629	498	34.32	1.14
300	0.0601	0.079	0.329	0.375	706	554	705	549	42.90	1.14
400	0.0470	0.063	0.316	0.363	805	616	798	606	57.20	1.14
500	0.0366	0.050	0.313	0.360	895	664	878	646	71.50	1.14
630	0.0283	0.041	0.304	0.350	995	721	969	695	90.09	1.14

8.7/15 kv Single XLPE Insulation Aluminum Wire Armoured and PVC Jacket power

Nom. Cross Sect. (mm2)	Conductor DC Resistance at 20°C (Ω/km)	Conductor AC Resistance at 90°C (Ω/km)	Inductance Trefoil formation (mH/km)	Inductance Flat formation (mH/km)	Current Capacity Trefoil in air (A)	Current Capacity Trefoil in ground (A)	Current Capacity Flat in air (A)	Current Capacity Flat in ground (A)	Short circuit current Conductor (kA)	Short circuit current Screen (kA)
25	0.727	0.927	0.485	0.531	170	153	174	156	3.58	1.14
35	0.524	0.668	0.461	0.507	206	183	211	187	5.01	1.14
50	0.387	0.494	0.442	0.489	245	215	250	219	7.15	1.14
70	0.268	0.342	0.417	0.463	304	262	310	267	10.01	1.14
95	0.193	0.247	0.398	0.444	367	312	373	316	13.59	1.14
120	0.153	0.196	0.391	0.437	422	351	427	354	17.16	1.14
150	0.124	0.159	0.377	0.424	477	391	482	394	21.45	1.14
185	0.0991	0.127	0.366	0.412	540	437	545	438	26.46	1.14
240	0.0754	0.098	0.351	0.397	628	499	630	497	34.32	1.14
300	0.0601	0.079	0.340	0.386	709	553	707	548	42.90	1.14
400	0.0470	0.063	0.334	0.381	799	604	790	592	57.20	1.14
500	0.0366	0.050	0.323	0.369	896	663	880	645	71.50	1.14
630	0.0283	0.041	0.313	0.359	997	720	971	695	90.09	1.14

12/20 kv Single XLPE Insulation Aluminum Wire Armoured and PVC Jacket power

Nom. Cross Sect. (mm2)	Conductor DC Resistance at 20°C (Ω/km)	Conductor AC Resistance at 90°C (Ω/km)	Inductance Trefoil formation (mH/km)	Inductance Flat formation (mH/km)	Current Capacity Trefoil in air (A)	Current Capacity Trefoil in ground (A)	Current Capacity Flat in air (A)	Current Capacity Flat in ground (A)	Short circuit current Conductor (kA)	Short circuit current Screen (kA)
35	0.524	0.668	0.475	0.521	208	183	212	186	5.01	1.14
50	0.387	0.494	0.456	0.502	246	215	251	219	7.15	1.14
70	0.268	0.342	0.429	0.476	306	262	311	266	10.01	1.14
95	0.193	0.247	0.418	0.465	370	310	375	314	13.59	1.14
120	0.153	0.196	0.403	0.449	423	350	429	354	17.16	1.14
150	0.124	0.159	0.389	0.435	478	390	483	393	21.45	1.14
185	0.0991	0.127	0.377	0.423	541	436	545	437	26.46	1.14
240	0.0754	0.098	0.361	0.407	630	498	631	496	34.32	1.14
300	0.0601	0.079	0.355	0.402	707	545	703	538	42.90	1.14
400	0.0470	0.062	0.343	0.389	801	604	792	592	57.20	1.14
500	0.0366	0.050	0.331	0.377	900	663	884	645	71.50	1.14
630	0.0283	0.040	0.321	0.367	999	721	974	695	90.09	1.14

18/30 kv Single XLPE Insulation Aluminum Wire Armoured and PVC Jacket power

Nom. Cross Sect. (mm2)	Conductor DC Resistance at 20°C (Ω/km)	Conductor AC Resistance at 90°C (Ω/km)	Inductance Trefoil formation (mH/km)	Inductance Flat formation (mH/km)	Current Capacity Trefoil in air (A)	Current Capacity Trefoil in ground (A)	Current Capacity Flat in air (A)	Current Capacity Flat in ground (A)	Short circuit current Conductor (kA)	Short circuit current Screen (kA)
50	0.387	0.494	0.495	0.542	250	214	254	217	7.15	1.14
70	0.268	0.342	0.467	0.513	309	260	314	264	10.01	1.14
95	0.193	0.247	0.446	0.493	372	309	377	312	13.59	1.14
120	0.153	0.196	0.429	0.475	426	349	431	352	17.16	1.14
150	0.124	0.159	0.415	0.461	480	389	485	391	21.45	1.14
185	0.0991	0.127	0.409	0.455	543	431	546	431	26.46	1.14
240	0.0754	0.097	0.392	0.438	630	491	630	488	34.32	1.14
300	0.0601	0.078	0.379	0.426	708	542	705	536	42.90	1.14
400	0.0470	0.062	0.363	0.410	804	603	796	591	57.20	1.14
500	0.0366	0.050	0.350	0.396	902	662	887	645	71.50	1.14
630	0.0283	0.040	0.340	0.386	1004	721	981	697	90.09	1.14
