Why Is Testing Of Already Installed Solar Panel So Crucial?
What is the role of testing in the production of power using a solar system?
Testing is essential for the performance of the solar panels. Technicians are able to quantify performance and, more specifically, calculate output that centers the solar panel’s actual weight and identify volumes of shading dirt buildup, and other component failures. It is possible to monitor and rectify faults on a regular program of testing and extend the energy production expectations from the solar system. It is better when there is actual power prediction of the solar system by the actual testing of the panels in question.
What are the common defects associated with second-hand solar panels?
Secondhand solar panels usually have several drawbacks, such as less efficiency due to micro-fractures, yellowing of the encapsulant, and also possible delamination. Another problem that can occur is hot spots on cells, which can lead to overheating in particular areas. Aging parts tend to develop faulty wiring, and some terminals can corrode, whilst shading by buildings and trees can lower the amount of energy from an off-grid solar system multiplier considerably. Prevention through inspection and testing remains the key to these problems in the appropriate conditions.
What equipment is essential in the examination of solar panels?
Can a multimeter function as a solar panel tester?
A Yes, it suffices, although a multimeter is a basic tester that can be employed in solar panel tests. It enables the technicians to rate individual solar panel(s)’s voltage and current output to determine their efficiency. This instrument is crucial for testing problems attributed to faulty connections or non-functional cells. Still, although a multimeter serves well for uncomplicated tests, advanced testing tools may have similar or better accuracy in rating electric performance and diagnostics.
What does a clamp meter measure, as well as the current and voltage?
In the current and voltage gauge section, a meter with a clamp is of immense importance, especially in electric systems such as the ones involving solar panels. The technicians using such a device are able to get the current in the conductor without breaking the circuit, allowing for less interruption on the circuit, which is a very important factor. The principle of operation of the meter is that it clamps over a conductor, after which the current can be obtained from the magnetic field of the current flowing in the wire. Furthermore, it is common to find clamp meters with voltage-gauging heads, and therefore, one is able to test both parameters to have a complete picture of the performance of a particular equipment. All these characteristic features of clamp meters contribute to their high utility in fault finding and performance optimization in a solar energy system.
Is it mandatory to install a solar charge controller?
It is necessary to have one which is sold separately to control the charge and discharge process of batteries which in this case will come from the solar panels. This protects the batteries from reaching overcharging levels as well as deep discharge, thus improving their lifespan and ability for energy stacking. Apart from safety, it also improves the system’s efficiency thus performance of the solar power system.

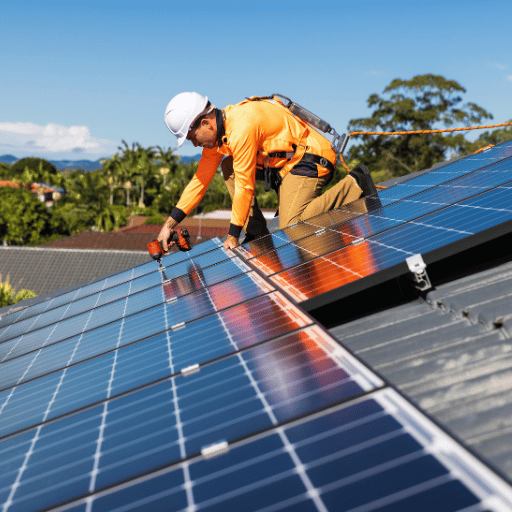

How is the output voltage of the solar panel measured?
What is the process of measuring voltage with the multimeter?
- Set up the Multimeter: Raise the Multimeter and switch to the required setting, either AC or DC voltage, depending on the type of the circuit.
- Probe Preparation: Place the black lead in the common terminal (often in the middle), while the red lead is put in the VΩ terminal in the multimeter.
- Get to the Circuit: The circuit is switched on, and the two points between which the voltage is to be measured are located.
- Take the Voltage: Locate the black lead of the clip on the negative end of the component or circuit and the red lead on the positive end.
- Take Note of the Display as a Response: The multimeter has been correctly used as far as it works, and the expected voltage of the portable solar system has been registered.
- Power off: Finally, after the measurement is done, remove the probes and switch the multimeter off.
In what ways is open circuit voltage different from other measurements?
When the solar panel is not connected to any load (hence, the current is zero), then the open circuit voltage (V oc) symbolizes the voltage available from the solar panel, which is maximum in value. This is because the voltage drop due to current is not present in this measurement, as opposed to the measured voltage across components in service, which do. V oc indicates the capability of the panel rather than the load conditions. Nevertheless, a common observation is that open circuit voltage is greater than the working voltage in a circuit owing to the effects of load and intrinsic resistance. This area of distinction is important in evaluating the resulting system performance and in the determination of the sizes of various solar power application components.

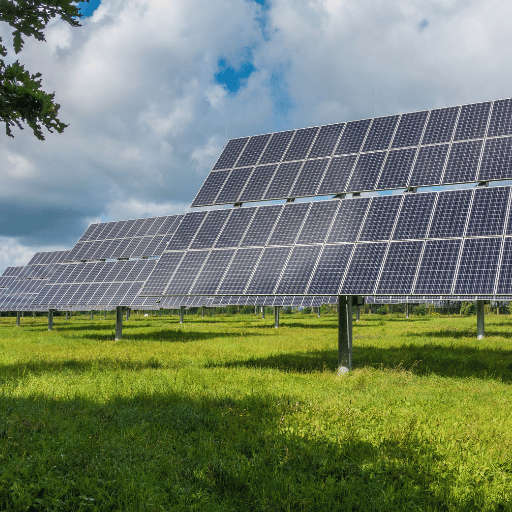

What is the Way One Tests the Ampere of Solar Panels?
How current can be established via a clamp?
In order to measure the current using a clamp meter the following procedure should be observed.
- Choose the Right Setting: The clamp meter should be turned on and adjusted to read the current within a range adequate for the type of circuit, whether AC or DC.
- Open the Clamp: The clamp should be placed over the conductor whose current is to be measured and it should be such that it only accommodates a single wire.
- Close the Clamp: The clamp has to be closed around the conductor with care to ensure that contact is made fully.
- Take the Reading: The position that gives the current through the wire is the display of the clamp meter.
- Turn Off: After the measurement is complete, the clamp is removed, and the meter is turned off where necessary.
What does short circuit current (Isc) mean?
Short circuit current (Isc), also known as photocurrent, is such an important factor when evaluating the performance of solar panels as it simply denotes the amount of current that can be generated by the panel when the terminals are shorted during standard test conditions. This is an important measurement, which plays a role in defining the efficiency and performance of a solar panel because it indicates the output of the solar panel when all factors are ideal. The ISC is a particularly important variable when planning solar energy systems as it helps to match the various components to be used in the system, thus maximizing energy production by allowing accurate computations of system performance and safety and system Ingress protection.

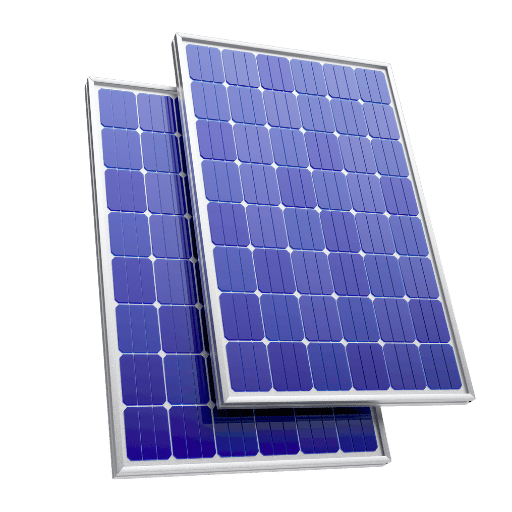

How to Investigate a Faulty Solar Panel?
How do you know when a panel in a solar PV system is faulty?
Normal inspection methods used to determine the quality of the PV panels and identify potential defects include:
- Low Output: Overall, less energy was produced than anticipated for the given power rating.
- Physical Damage: The presence of surface cracks or peeling of the panel.
- Color Changes: The formation of deposits or patches that signify overheating or other types of damage.
- Intermittent Output: Variations in the output that are not a response to the change in the intensity of solar radiation or other conditions.
- Abnormal shapes: The configuration of the panel has distorted and such deformation has damaged the structure of the panel.
How does one test bypass diodes in photovoltaic panels?
To assess the operation of bypass diodes in a solar panel, the procedure is as follows:
- Sight Inspection: Look at the panel to verify if there are any discolorations or destruction around the bypass diodes preventing one from maximizing solar energy business operations.
- Testing with a Multimeter: If the panel is lit, connect the glass probe to the top minus bypass diode and hit the voltage drop for a forward-biased test across the bypass diode. The standard diode should have a forward voltage worth less than about 0.7 volts.
- Bias Displacement Test: Change the multimeter probes; in this orientation the bypass diode under test would display no current representatives are moving across Therefore it is functioning normally.
- Thermal Imaging: Employ a thermal imaging camera therefore pinpointing the hot spots on the panel where a bypass diode may be failing because there is excessive heat.
- Comparative Analysis: Performance of the said panel, which is in doubt, is evaluated against that of other similar panels put under the same conditions to see if output differed.

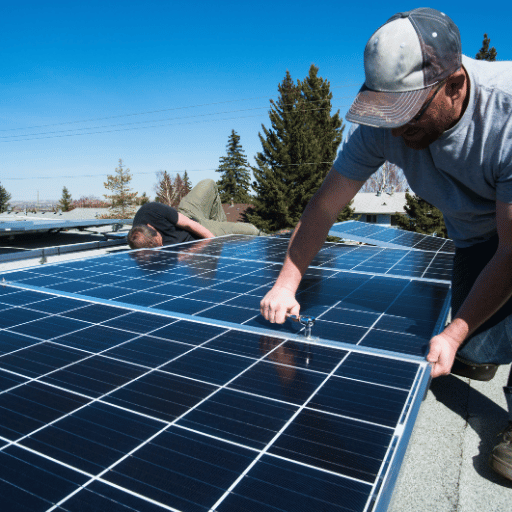

What About Solar Panels? What Are the Challenges?
How can we test for deficiencies in voltage output?
In terms of voltage output issues associated with solar panels, the following approaches can be employed:
- Voltage Evaluation: The voltage output of the panel is evaluated using a multimeter under Normal Operating Conditions. It is necessary to confirm that these values conform to the requirements of the manufacturer.
- Benchmarking: The output voltage obtained is compared to a threshold voltage obtained from other similar panels in the same ambient conditions.
- Voltage Testing: Voltage tests can also be performed on the panel when connected to a sellout where the panel output is connected to a resistance.
- Temperature Changes: Also, it is important to note other factors that may cause a drop in output voltage; for instance, an increase in temperature typically leads to a lower output voltage.
- Visual Inspections: Inspect the terminal connections and wiring for wear and tear, loose wires, or evidence of corrosion; however, these could also be reasons for the drop in voltage.
What are some common defects of solar modules?
Solar modules may present the following shortcomings:
- Hot Spots: These occur due to shading or even defects in the cells, leading to a rise in temperature only in specific areas, and thus, the cell may burn.
- Bypass Diode Failure: This would usually cause underperformance of the module or its total failure due to climate conditions as a result of the defective bypass devices.
- Delamination: It is the layer separations of the module that occur mainly due to the intrustion of moisture or defect in the manufacturing process and which affect the efficiency.
- Microcracks: These are very small cracks on solar cells that are mainly due to stress or mechanical pressure and where the loss of energy conversion efficiency might become a core issue for any solar energy company.
- Corrosion: This is the process of deterioration of electrical terminals and other components that result from many factors and leads to rise in resistance and output reduction.
- Poor Bypass Functionality: Causes of such types of bypass are ineffective and therefore there can be excessive energy production losses in the shaded regions.
In which way is performance retained from the used panels?
Used solar panels can cause adverse performance for various reasons. To begin with, the gradual wear down of solar cells decreases the percentage of energy that can be converted, which is also known as “aging.” Where there are also damages that can be caused by environmental conditions, for instance, recurrent hailstorms, exposure to ultra violet light, or extreme cold or heat may result to internal imperfections such as microcracks or delamination. In addition, dirt, oils, and other foreign substances may build up on the surfaces of the panels that, in turn, reduce sunlight penetration, producing accordingly low output. The use pattern, and particularly the maintenance pattern of panels is also very important; forgotten or wrongly used panels are the ones that may cause adverse effects rather than contributing positively to the performance of the system design use.
Reference Sources
Frequently Asked Questions (FAQs)
Q: Testing Solar Panels with a Multimeter. How Do I Do That?
A: There are several methods to test solar panels, however one of the simplest is to use a multimeter. You start by switching the multimeter to the DC voltage mode of measurement. You can then attach the positive and negative leads of the solar panel to the multimeter leads. Make sure the panel is illuminated in order to take a measurement of the panel output.
Q: At what time of the day is a solar panel test performed to get precise output readings?
A: Ideally, the best time to test for solar panel output is when the panel is directly facing the sun, especially when the sun is at its peak position at noon. This ensures that you are measuring the output of a solar panel that is in its best performance state.
Q: How do I know if my solar panel is faulty?
A: One way to determine whether a solar panel is faulty is to check the panel for any physical defects, such as cracks or discoloration. Another method is to measure the output with a multimeter and verify whether the voltage, and current read are in the expected values. If the output is reduced significantly, this may be a sign of a faulty panel.
Q: How can I check the wattage of my solar panel?
: In order to check the watt output of the solar panel, it is essential to check two parameters which are voltage (Voc) and current (Isc). These parameters are important while tuning the MPPT settings. The finding is either current times voltage or effective power is voltage times current (Watt = V x I). Carry out this measurement when the panel is fully illumined for accurate results.
Q. Is it possible to perform a solar panel test in a series configuration?
A: Yes, it is possible to perform a solar panel test in a series configuration. When taking out such tests on the panels in parallel, only the total current flow from the panel is taken with the help of an async amp meter. Use same voltage panels to avoid problems.
Q: What meters do I require in order to evaluate the efficiency of my solar panel system?
A: In evaluating solar panel systems, measuring devices such a multimeter or an amp meter to measure DC current and voltage will be required, while an inverter may be required if AC output is to be evaluated. A sunny day is of utmost importance in order to secure accurate readings throughout the test process.
Q: How do I identify the correct working of my solar panel system?
A: In hoping that the panels are doing their work, you check the solar panel system by measuring the panel output with a mulitmeter under full sun conditions. The values should match those provided by the manufacturer’s requirements. If the readings are within estimates then your system is most probably working well. Alternatively a more thorough testing may be contemplated with the assistance of an external expert.
Q: Are there any home tests for the solar panels?
A: In short , yes .It is possible to test out solar panels by one’s self using rudimentary instruments such as a multimeter. : However, if you are not confident about any given step, or if your efforts yield odd outcomes, it is better to consult a specialist and be sure you do not make mistakes in your solar energy business’ work.
Q: What are the indicators of a faulty solar panel?
: Faulty solar panels are characterized by physical defects such as cracks and discoloration, a decrease in power output relative to its set threshold, or strange voltage and current readings that may virtually cripple your off-grid system. For a suspected bad solar panel a thorough inspection or a professional consultation is able to remedy the condition.
Q:.lista de documentosDisponiblesQ: How do I measure the dc power output of a solar panel?
A: To measure the DC power output of a solar panel, set your multimeter to measure DC voltage and current. Push the probes of the multimeter to the positive and negative terminals of the solar panel. To find the power output in watts, simply multiply the voltage obtained and the current measured.
