Every part of a solar energy system has a role to play for it to work best, but one of the most important is the photovoltaic (PV) cables. The most important types of wires do not get recognition, but they deserve as much credit as the PV cables are essential. The wires connecting the solar panels to the energy system ensure that power is transferred without interruptions. This blog post explains the importance of PV Cables and their role in a solar setup. You do not have to be a homeowner interested in renewable power sources or a solar professional to know that PV cables help achieve optimum yield from the system and ensure the setup is durable. Still, everyone must understand cables to make the most out of a setup. Keep learning why these cables are as critical to solar energy systems as the solar panels are.

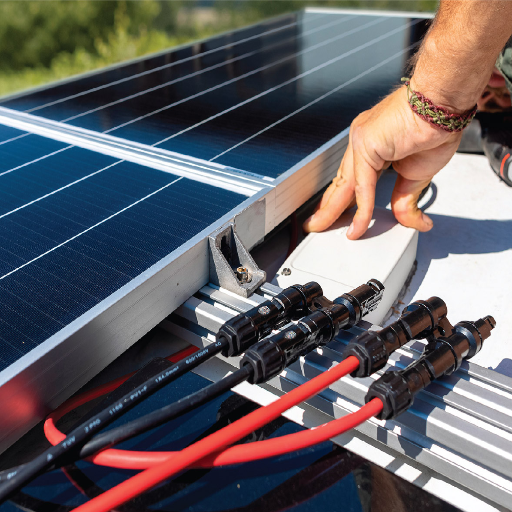

What is a PV Cable and Why is it Important?
A PV cable, or PV cable for short, is an electrical cable used in solar power systems. It connects solar panels, inverters, and batteries, and ensures efficient and reliable electricity transmission. These materials withstand harsh environmental factors, including UV radiation, wind, extreme temperatures, and dampness. This wear resistance increases their life span and protects them from severe weather. PV cables maintain the safe and consistent flow of electricity with standby current, and therefore, they contribute to the overall performance of durability during use, safety, and endurance.
Defining Photovoltaic Cables
Photovoltaic (PV) cables are a type of electrical cable with a specific purpose. They connect all solar energy system components, including the solar panels, inverters, and charge controllers. Cables with such a design are tailored to deal with the market conditions of solar power systems, including high-voltage electricity and direct (DC) current. These materials are made from robust goods that undergo UV wear. And extreme temperature and environmental stress exposure for long-lasting PV cables. Their core claim to primitive attention to loss of energy transfer while risking power, all confirm the purpose and construction of solar fixtures and installations.
Importance of PV Wiring in Solar Systems
Wiring in photovoltaic (PV) systems is vital in balancing solar power systems’ performance and safety requirements. The right quality of wiring helps ensure minimal energy losses during transmission, which affects the system’s energy yield. In addition, proper PV wiring minimizes electrical faults that may arise, including short circuits or ground faults that could result in system failures or safety threats. Given the increased use of renewable energy, newly adopted PV cable technologies focus on additional features such as improved fire resistance, weatherproofing, and compatibility with new high-voltage systems for longevity and compliance with safety standards. Therefore, investigations of PV wiring directly impact the performance, ease, and consistency of the solutions applied and provide maximum returns from investment.

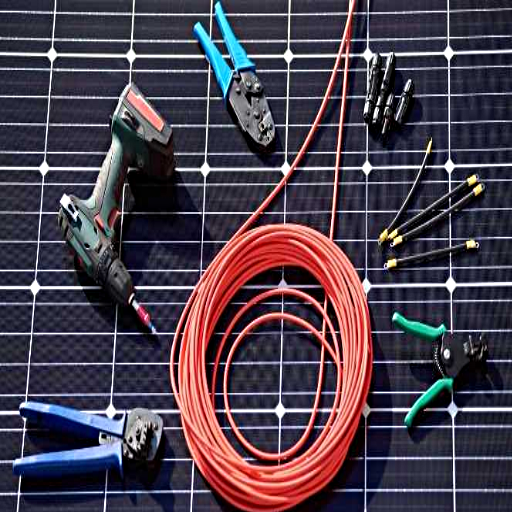

How to Choose the Right PV Wire for Your Solar Installation?
While selecting the right PV wire for a solar installation, the following parameters must be considered:
- Wire Type: Only wires designed for photovoltaic applications, such as PV wire or USE-2, should be used. These wires provide outdoor approval, UV protection, and the ability to withstand temperature changes.
- Voltage Rating: The wire’s voltage rating must be checked against the system’s specifications. While most installations require 600V, 1000V, or 1500V, some may require more.
- Temperature Resistance: Select wires whose temperature ratings encompass the installation environment’s temperature extremes for optimized safety and efficiency.
- Conductor Material: Copper wires are often preferred due to their high conductivity; however, they can be costlier than aluminum, especially in larger systems where installations are easier.
- Certifications and Compliance: Reliability and safety are pivotal; thus, UL certifications or other industry standards must be met.
Considering all the points above will help select PV wires that will optimally aid in the performance and durability of the solar installation.
Understanding AWG Ratings: 8 AWG vs 10 AWG
Because they can transmit higher current with reduced voltage drop compared to 10 AWG wires, 8 AWG wires are more appropriate for efficient transmission over long distances and placement during heavy load usage.
| Parameter | 8 AWG | 10 AWG |
|---|---|---|
| Current | Higher | Lower |
| Voltage | Lower drop | Higher drop |
| Diameter | Larger | Smaller |
| Flexibility | Less | More |
| Cost | Higher | Lower |
| Usage | Heavy loads | Moderate loads |
Factors to Consider When Selecting Photovoltaic Cables
Every solar installation project will have efficiency concerns regarding safety. These concerns arise while selecting cables to be used. The following are the best practice pointers to be observed:
Selecting Solar PV Cables: Best Practices
- Current-Carrying Capacity: Power cables must be capable of carrying the system’s current without burning out. Cables incapable are said to have energy-sapping losses due to high heat.
- UV and Weather Resistance: Due to prolonged and harsh weather fluctuations, specific temperatures and other environmental conditions can affect cables. Look for maximum-strength UV-resistant weather-proof insulated cables.
- Flexibility and Durability: The construction of the cables is vital. They must be flexible enough to be relocated yet durable enough to withstand heavy tensile forces over a long life span. Often, solar cables use cross-linked polyethylene for these properties.
- Voltage Rating: Generally, especially with DC PV cables, it’s best to ensure that the cables are suited for the desired performance voltage levels.
- Thermal Stability: Since solar equipment requires exposure to open fields or rooftops where heat levels are monitored and temperatures constantly rise, a special rugged design should be applied to the equipment’s thermal endurance.
- Compliance with Standards: Check the system installations and construction of such cables to meet and comply with the needed safety standards, such as UL 4703 and IEC 62930. These standards guarantee that the peripherals meet the sockets and system fittings to be used in photovoltaic systems.
Considering these factors leads to selecting the perfect PV Cables, which ensures system performance.
Comparing Copper PV Wire and Other Materials
Copper PV wire records the highest conductivity, durability, and thermal stability results compared to alternatives such as aluminum, which are lighter and more cost-effective but have expansion issues.
| Parameter | Copper | Aluminum |
|---|---|---|
|
Conductivity |
High |
Moderate |
|
Durability |
High |
Moderate |
|
Flexibility |
Low |
High |
|
Cost |
High |
Low |
|
Weight |
Heavy |
Light |
|
Thermal |
Stable |
Expands |
What Are the Different Types of PV Cables Available?
The most frequently used types of PV cables in solar power systems:
- Single-core PV Cables are mainly used as the first cables connecting the solar panels with the inverters. They are highly durable and can withstand extremely adverse weather conditions.
- Twin-Core PV Cables: These cables are primarily used for installations that require two conductors to be housed within one sheath, simplifying wiring and saving space.
- Battery Cables: These are flexible and much thicker cables that link the batteries in solar energy storage systems. These cables are specifically designed to transfer high currents.
- Jumper Cables: Also called module interconnect cables, these serve to connect solar panels amongst themselves in a photovoltaic array.
Careful selection of the type of PV cable will help ensure the system’s efficiency, safety, and longevity.
Overview of UL 4703 Rated Cables
Cables with UL 4703 certification are critical components for photovoltaic (PV) systems as they are manufactured for solar power generation applications exposed to harsh environments and UV radiation for prolonged periods. These cables must pass rigorous testing and are specially designed for ultraviolet (UV) resistance, high temperatures, and prolonged environmental stress, making them ideal for solar power applications. Their insulation is made with cross-linked polyethylene (XLPE), which can withstand these conditions and ensures performance over time.
Having UL 4703 certification assures compliance with the solar installation safety requirements for electrical wiring, guaranteeing flame resistance, weatherproofing, and enhanced conductivity. System operators employing UL 4703-compliant cables for their solar systems benefit from reduced risk of electrical faults while increasing reliability, system lifespan, and operational efficiency. These cables are crucial to foster the reliability and sustainability of renewable energy infrastructure.
Understanding Direct Burial vs Above Ground Wiring
Direct burial wiring is used for underground applications because it is more moisture—and pressure-resistant than above-ground wiring. It is also less rugged and better suited for open-air environments.
| Parameter | Direct Burial | Above Ground |
|---|---|---|
|
Installation |
Underground |
Open-air |
|
Durability |
High |
Moderate |
|
Moisture |
Resistant |
Vulnerable |
|
Flexibility |
Limited |
High |
|
Applications |
Outdoor/Utility |
Accessible Areas |
Exploring Twin Solar and Other Configurations
Twin solar configurations involve using two solar panels to increase overall energy production, efficiency, and/or optimize energy use. This often enables better space utilization and higher output than a single-panel setup. How does this compare with other configurations, and which one best suits your needs?
The decision is primarily based upon the installation area’s location, the system’s energy requirements, and the financial budget. Twin solar setups can excel in areas with limited scope and achieve a substantial energy output. On the contrary, series or parallel configurations may work better for larger installations with a specific voltage or current. Each configuration has its advantages, and for those with specific goals, consulting a professional installer will ensure the energy system works flawlessly while providing adequate energy goals per the required guidelines set, such as the standard approach UL 4703.

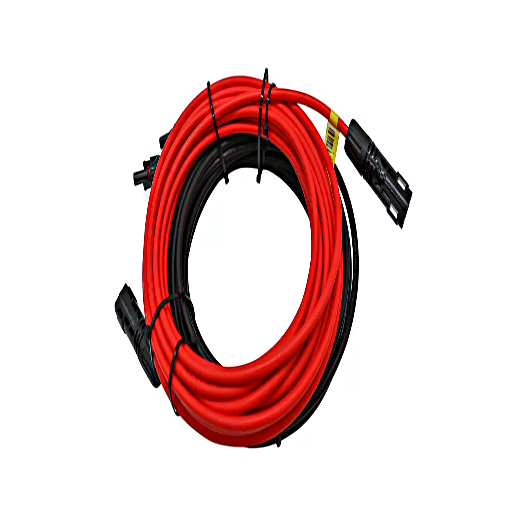

How Do You Install PV Cables Safely?
To ensure the safe installation of PV cables, do the following:
- Plan the Layout: Develop a complete route plan that preserves the cable’s ordered flow and minimizes the chances of entanglement. Avoid placing the cable in high-traffic areas or near sharp edges.
- Use Proper Protection: Install conduits or cable trays designed for those specific purposes to safeguard the cable from moisture, sunlight, or damage.
- Ensure Secure Connections: Use adequate tools and connectors to affix tighter and dependable connections to the cables and other components. Be certain that all connections are properly insulated to protect against short circuits.
- Follow Voltage Ratings: Check that the cables support the system’s voltage and current to prevent overloads or overheating.
- Ground the System: Satisfactory grounding of all the components is essential to ensure electrical fail-safes.
- Comply With Regulations: All local safety and electrical installation codes must be considered and respected.
- Inspect and Test: Post-installation, check all the components and connections built to confirm that the fully functional criteria are met.
These steps, when performed in order and with attention to detail, will ensure the solar energy system’s required safety and practicality.
Essential Tools for Solar Cable Installation
Accurate, efficient, and safe solar cable installation requires proper tools. The following are some notable tools:
- Wire strippers effectively remove solar cable insulation while ensuring that the wires present internally are not damaged.
- Cable cutters effectively cut through solar cables ‘cleanly’ so that no frayed or uneven edges are left behind.
- Crimping tools are needed for connectors that are electrically affixed to cables. These tools enable secure connections that facilitate reliable charge flow through the cable.
- A multimeter is a test device that enables testing of vitals such as voltage, current, and resistance. The device is essential for checking the system as it helps ensure its functionality.
- Cable management clips and ties are effective in organizing and securing cables.
- A conduit bender helps shape conduits that protect and hold cables. The tool is especially useful in complex installations.
- Safety gear includes insulated gloves, goggles, helmets, and other items that protect from physical harm and electrical danger.
- Labeling tools help mark vital areas such as cables and their connections for future maintenance and troubleshooting, ultimately ensuring ease of access.
Compared to other tools, the solar energy system is more powerful while simpler to use, with enhanced safety, a greater level of personalization, and overall ease of access.
Steps to Properly Connect Solar Panels
- Plan and Design the System
Analyze the energy requirements first and determine the most suitable positioning of the solar panels. Focus on the layout to minimize shading and ensure optimum sunlight exposure.
- Set Up Mounting Structures
The mounting structures should be fitted according to the ground or roof design. They should provide adequate framing and be oriented correctly to the surrounding weather challenges.
- Install the Solar Panels
Affix the solar panels to the mounting structures using bolts or clamps, maintaining the correct tilt and orientation needed for efficiency in energy capture.
- Connect the Panels in Series or Parallel
As per your system design, connect the solar panels in series for higher voltage output or in parallel for higher current. Confirm the polarity (positive and negative terminals).
- Wire the Panels to the Combiner Box
Connect each solar panel to the corresponding cables with the combiner box, consolidating several inputs and outputs into a single signal for streamlined electrical processing.
- Set Up the Charge Controller
To set it up, attach the output from the combiner box to the charge controller. This component prevents battery over- or undercharging, thus controlling energy flow.
- Connect the Batteries (if applicable)
If the system contains batteries, link them to the charge controller following the guidelines. Make sure the connections are tight and well insulated.
- Wire To The Inverter
Connect the batteries or charge controller to the inverter. The inverter converts the DC electricity from the solar panels to AC electricity used by the appliances.
- Test The System
Check all components meticulously to test for any loose connections, check if the system works correctly, and monitor for voltage and energy output throughout the test.
- Activate The Solar System
The system can be activated after thorough checks. Performance checks should also be done. Continuous use of the system will ensure optimization over time.
These steps will allow for the safe and efficient installation of solar panels and constant energy generation.
Reference Sources
1. “Temperature Effects on DC Cable Voltage Drop in Utility Scale Rooftop Solar PV Plant Based on Empirical Model”
- Authors: A. Desai et al.
- Publication Date: June 14, 2020
- Key Findings:
- This paper presents an empirical model to assess the impact of temperature on voltage drop in DC cables used in solar PV systems. It highlights the importance of cable sizing in minimizing losses.
- Methodology:
- The authors analyzed temperature effects on cable performance through experimental data and simulations, providing recommendations for optimal cable sizing(Desai et al., 2020, pp. 2397–2402).
2. “Selecting and sizing transformer and AC cable for PV system’s safe and reliable operation”
- Authors: Irtaza M. Syed et al.
- Publication Date: February 1, 2020
- Key Findings:
- The study focuses on selecting and sizing transformers and AC cables in PV systems to ensure safe and reliable operation and address the challenges posed by varying load conditions.
- Methodology:
- The authors utilized simulations to evaluate the performance of different cable and transformer configurations under various operational scenarios(Syed et al., 2020).
3. “A Novel Crossover Wiring of DC Cable for Photovoltaic System Against Lightning-Induced Overvoltage”
- Authors: Qiuqin Sun et al.
- Publication Date: April 1, 2023
- Key Findings:
- This paper proposes a novel crossover wiring scheme for DC cables in PV systems to mitigate the effects of lightning-induced overvoltage and enhance the safety and reliability of PV installations.
- Methodology:
- The authors conducted simulations to compare the induced voltages in different wiring configurations, demonstrating the effectiveness of the proposed scheme in reducing overvoltage risks(Sun et al., 2023, pp. 475–485).
Frequently Asked Questions (FAQs)
Q: What is Solar PV Wire & Cable: UL Listed Photovoltaic 8 AWG?
A: Solar PV Wire & Cable: UL Listed Photovoltaic 8 AWG is a type of electrical wire specifically designed for solar photovoltaic applications. It is rated for use in photovoltaic systems and complies with UL standards, ensuring safety and performance in solar power installations.
Q: What are the key features of this solar panel cable?
A: This solar panel cable features copper conductors, is sunlight—and moisture-resistant, and is available in black and red. It is also designed to withstand UV exposure and is rated for 600V and 2kV applications, making it ideal for various solar applications.
Q: Can I use 12 AWG solar PV wire for my photovoltaic solar system?
A: While 12 AWG wire can be used in some solar applications, the 8 AWG solar PV wire is typically preferred for higher current applications. Always check the specifications and requirements of your specific photovoltaic system to ensure compatibility.
Q: Are the solar connectors compatible with UL Type PV wire?
A: Yes, solar connectors used with UL Type PV wire are designed to ensure photovoltaic systems’ safe and efficient interconnection. For optimal performance, connectors must match the wire gauge and type.
Q: Is the 8 AWG solar PV wire suitable for grounded and ungrounded photovoltaic power systems?
A: The 8 AWG solar PV wire is suitable for grounded and ungrounded photovoltaic power systems, adhering to the National Electric Code (NEC) requirements for interconnection wiring of grounded and ungrounded systems.
Q: What does it mean for the wire to be rated for direct burial?
A: Being rated for direct burial means the solar PV wire can be installed underground without additional conduit protection. This rating ensures the wire can withstand moisture and soil conditions, making it suitable for outdoor installations.
Q: What is the significance of the VW-1 flame test for solar cables?
A: The VW-1 flame test indicates that the solar cables have passed a vertical flame test, demonstrating their resistance to fire and ensuring safety in case of electrical faults. This is an essential feature for photovoltaic systems, as it helps to minimize fire hazards.
Q: How is the photovoltaic wire sold, and can I buy it on foot?
A: The photovoltaic wire is typically sold by the foot, allowing you to purchase the exact length needed for your installation. This flexibility is beneficial for customized solar energy projects.
Q: What are the advantages of using quality PV wire in solar applications?
A: Using quality PV wire in solar applications ensures reliability and longevity in your solar power system. It enhances performance, reduces the risk of electrical failures, and complies with safety standards, ultimately leading to more efficient energy generation.
