The clock spring, commonly referred to as the spiral cable, is one such component that remains crucial yet often overlooked in modern vehicle safety systems. It acts as the conductor from the vehicle’s steering wheel to the airbag system: without it, the airbag cannot deploy, the horn cannot sound, and steering wheel controls cannot be communicated to. Without it, each of these features would be rendered impossible: such an occurrence would jeopardize safety and occur only in scarce circumstances for genuine convenience! This article will examine the clock spring’s fundamental role in maintaining airbag functionality, discussing its common issues and symptoms of failure, and then address maintenance and replacement. Knowing that this is an important part will make drivers and technicians more aware of the necessary steps to ensure the vehicle’s safety is never compromised.
What is a Spiral Cable?
A spiral cable, often referred to as a clock spring, is a crucial component of a vehicle’s steering mechanism. It enables the transmission of electric signals between the steering wheel and other systems such as airbag deployment mechanisms, horn, and audio controls, while allowing the steering wheel to rotate. This type of coiled cable ensures uninterrupted functionality for these systems, allowing vital safety and convenience systems to operate continuously during vehicle operation.
Definition and Functionality
A clock spring primarily refers to the continuous electrical connection that electronic devices have with rotary movement. This connection cable features a flexible flat band that is coiled within a structure designed to be fitted onto the steering column; this, in turn, prevents signal loss when the steering wheel is turned. The area is pertinent for the proper operation of car safety features, such as airbags, but also supports user-friendly options, including the horn and steering wheel controls.
The Role of Spiral Cables in Airbag Systems
Spiral cables fit the race to ensure the reliable operation of an airbag system. They pass signals during an accident by maintaining electrical continuity from the vehicle’s control unit to the airbag module. The system must get proper input even if the steering wheel is rotated, enabling the airbag to deploy within milliseconds, thereby affording some time for driver protection. The durability and utmost precision of spiral cable installation go a long way to enhancing the effectiveness of this safety feature.
Importance of Vehicle Safety
Vehicle safety remains a key factor in preventing injuries and fatalities related to traffic accidents. Properly maintained safety systems, such as airbags, seatbelts, and advanced driver-assistance systems, protect occupants during collisions. These systems mitigate the impact of crashes on the road, creating a safer environment for all users. Thus, some form of safety is embedded into vehicle design, allowing manufacturers and drivers to work together in creating an even safer transportation environment.
How Spiral Cables Work in Airbag Systems
Mechanics of the Clock Spring
A clock spring or spiral cable is a crucial component of modern airbag systems, providing an electrical connection between the vehicle’s fixed steering column and the rotating steering wheel. The device comprises a coiled ribbon-type electrical conductor housed in a flat, circular casing. The function of the clock spring is to maintain uninterrupted transmission of electrical signals, for example, for deploying the driver’s airbag during a crash or for activating other functions through steering-wheel-mounted controls, including audio and cruise control buttons.
The clock spring operates by unwinding and rewinding as the steering wheel rotates, with possibly a few complete rotations of the wheel in either direction, allowing for signal continuity between parts on the wheel and the rest of the vehicle. Its internal conducting material is usually made of a very tough material to last through repeated flexing over a significant period. Any fault in the clock spring, such as wear or damage to the inner conductor, can cause intermittent connection problems, which may eventually activate the airbag warning light or render some steering wheel functions inoperable. Most modern designs incorporate various fail-safe features to mitigate risk in the event of failure, ensuring that critical systems, such as the airbag, remain reliable.
Manufacturers rigorously test clock spring assemblies to ensure compliance with strict automotive safety standards, taking into account factors such as material durability, temperature resistance, and electrical integrity. Along with advances in vehicle technology, more advanced clock spring designs accommodate additional wiring for enhanced steering wheel controls.
Connection Between Steering Wheel and Airbag Module
The clock spring serves as the primary connection interface between the steering wheel and the airbag module. In many modern vehicles, the clock spring features a spiral cable mechanism that provides a continuous signal path, regardless of steering wheel rotation. The signals can include airbag deployment signals, horn signals, and signals from other various steering wheel controls.
The design of clock spring assemblies in cars has become increasingly complex with the advent of new automotive technologies. Some of these systems install up to 20 or more electrical circuits and permit data transfer rates in the range of a few megabits per second, matching advanced safety features such as adaptive cruise control and lane-keeping assist. Research has shown that the materials used in clock spring assemblies offer the best resistance to temperature and humidity variations, ensuring reliable service under various environmental conditions.
Furthermore, extensive quality and control tests are performed to ensure that the clock spring and the rest of the electrical system stand the tests of utmost safety and endurance. It is even subjected to stress tests for long periods of rotational movement cycles, which typically exceed 1,000,000 rotations, to ensure long-term reliability. Following such rigorous requirements, a manufacturer guarantees that the interface between the steering wheel and the airbag module is smooth and dependable, thereby furthering the safety and functionality of the vehicle.
Electrical Signals and Control Systems
Modern control systems owe their existence to the electric signals, which are perfectly applied mainly in transport machinery and industry. They allow necessary information to be conveyed from one unit to another, thus ensuring real-time interaction and accurate regulation. Just as in the case of the vehicles, the control areas and network protocols, such as CAN (Controller Area Network), divide electronic control units (ECUs), and tend to command and improve only the required functions in the case of engine operation, braking, and skid control.
Data is crucial in showing the effectiveness of these chips. In this regard, high-end ECUs can now handle numerous commands within seconds while performing tasks such as adaptive cruise control and lane departure prevention. Furthermore, after several investigations were conducted to assess the effect of adaptive signal processing algorithms on response time used in crash mechanisms, such as airbags, it will be implemented at 50%. Consequently, this will lead to increased safety and efficiency in such systems. By utilizing robust cable connections, measuring equipment sensors, and corresponding mechanisms that minimize signal degradation, engineers can ensure that control systems, including airbags, operate reliably whenever needed.

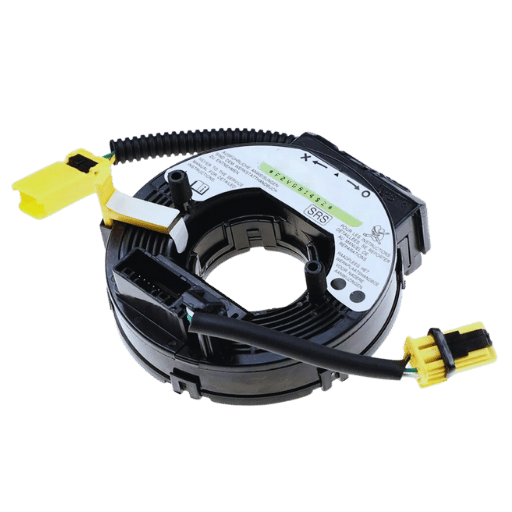

Recent Advancements in Spiral Cable Technology
Innovations in Safety Features
Recent developments in spiral cable technology have focused on enhancing the safety features in modern-day automobiles. Improved materials provide further durability, giving assured performance under extreme temperatures and prolonged periods of holding; hence, avoiding sudden system failure. Modern-day spiral cables may even be fitted with sensors for real-time health monitoring. Such early-stage detection of failure increases the responsiveness of safety mechanisms, such as airbag deployment or ADAS, thereby enhancing vehicle safety and occupant protection.
Trends in Airbag System Development
Recent developments in airbag systems highlight the need to incorporate adaptive and intelligent technologies for maximized occupant safety. Another trend in the development of multi-stage airbags is their ability to vary deployment forces depending on the severity of the collision, occupant size, and seat position. Studies have shown that adaptive airbags can reduce injuries by providing a more targeted response in accidents.
Another significant modification involves the addition of side, curtain, and knee airbags for modern vehicles, ensuring protection beyond just frontal impacts. Curtain airbags have been gaining traction, with their market penetration expected to grow at a CAGR of more than 6% in the forecast years; this acceptance is thus driven mainly by increasing regulations for the upgrade of safety standards across regions.
Additionally, the integration of airbags with ADAS will shape the future of vehicle safety, particularly regarding SRS technologies. For instance, pre-collision sensors can trigger the earlier deployment of airbags or adjust their deployment in real-time, depending on the vehicle’s dynamics. This trend highlights the increasing interlinking of passive and active safety systems in accident mitigation.
Lastly, the use of sustainable materials and designs in airbag manufacturing is gaining ground. Automakers are targeting eco-friendly alternatives, such as recyclable fabrics and non-toxic propellants, to reduce the environmental impact of airbag systems without compromising their performance. These trends all reflect a commitment to safety and sustainability practices in modern vehicle design.
Common Issues and Failures of Spiral Cables
Identifying Airbag Light Malfunctions
When the vehicle’s airbag warning light appears on the dashboard, it indicates that a problem may have occurred within the airbag system, requiring urgent maintenance. One of the most common reasons is the breakdown of the spiral cable or clock spring, which connects the steering wheel electrically to the airbag module. A worn or damaged spiral cable, caused by wear and tear over extended use or excessive rotational stress, can interfere with the signal that enables the airbag to deploy.
Other reasons for causing the airbag light to activate could be sensor malfunctions, wiring problems, or a drained backup battery for the airbag control module. With disturbed connections or aging over time due to impacts and vibration, for example, the integrity of the airbag system lessens. In another way, moisture seeping into the wiring harness and causing corrosion can lead to either short circuits or anomalous electrical resistance, thereby triggering the warning light.
The onboard diagnostic (OBD-II) system is a valuable tool for pinpointing the actual root cause. Once scanned for fault codes, technicians can identify specific issues, such as the absence of a circuit, the lack of a crash sensor, and other technical details. Industry research indicates that these types of malfunctions are frequently encountered during technical vehicle inspections, with harness wire and spiral cable faults accounting for the majority of airbag-related failures.
The airbag light malfunction should be addressed as soon as possible since it concerns the operation of the passenger safety system. To ensure the system retains its long-term functionality and reliability, regular maintenance checks must be performed, including connector inspections and verifying the spiral cable’s condition.
Potential Risks of Faulty Spiral Cables
Faulty spiral cables pose a major safety hazard, as their failure can prevent airbag deployments in actual collision scenarios. This diminishes the level of protection offered by vehicle systems, leaving occupants more susceptible to serious injuries. Similarly, malfunctioning spiral cables can cause failure in other steering wheel controls, compromising functions such as the horn, thereby reducing safety in exigent circumstances. These risks must be assessed and addressed promptly.

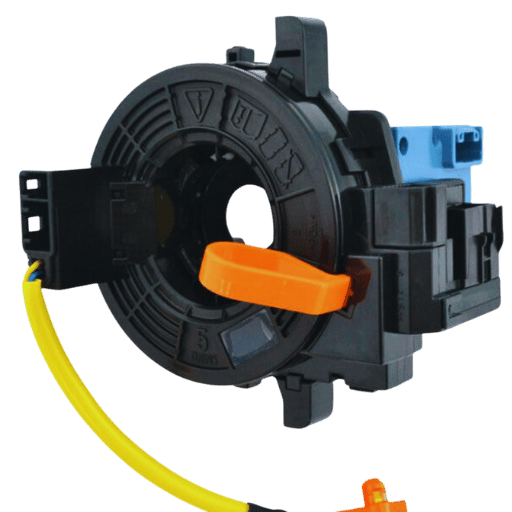

Tips for Maintenance and Replacement
Signs It’s Time to Replace Your Spiral Cable
Suppose you have noticed unusual situations, such as airbag warnings on the dashboard, lost steering wheel controls, a horn that does not work when the audio button is pressed, or perhaps some strange noises while turning the wheel. In these instances, the replacement of the spiral cable may be due. This is a warning; act now to prevent another safety concern and ensure the vehicle’s systems function properly.
How to Properly Maintain Spiral Cables in Your Vehicle
- Regular Inspections: Periodically inspect the visible wear and tear on the spiral cable to check for any damage. Signs to look for include fraying or distortion.
- Handle with Care: When servicing or making adjustments to related parts, such as the steering wheel, avoid unnecessarily overstretching or twisting the spiral cable.
- Avoid Excessive Force: Never forcibly rotate the steering wheel more than necessary, as this may cause damage to the spiral cable.
- Consult a Professional: If you suspect a defect in the spiral cable, have it inspected and potentially replaced by a competent mechanic to ensure correct installation and proper functioning.
- Adhere to Maintenance Schedules: Follow the recommended service schedules provided by the manufacturers to ensure the cable’s longevity and prevent sudden breakage.
Purchasing Guidelines for Clock Spring for Toyota Camry and Corolla
- Identify the Correct Part Number: Refer to your owner’s manual or contact a certified parts dealer to determine the correct part number for your model and year.
- Purchase Genuine or OEM Parts: Choose between genuine Toyota parts and OEM parts to ensure the best quality, reliability, and compatibility.
- Verify Compatibility: Double-check your car’s make, model, year, and trim before placing your order to guarantee that the clock spring is a good fit.
- Check Warranty and Return Policies: Look for sellers who offer warranties or have flexible return policies, so your investment is protected if the item turns out to be defective or incorrect.
- Purchase from Trusted Suppliers: Buy from authorized dealers, reputable online sellers, or certified parts distributors to avoid counterfeit or substandard supplies.
Frequently Asked Questions (FAQs)
Q: What is a spiral cable for an airbag in a car?
A: The spiral cable for the airbag, also known as a clock spring, is a vital component that connects the airbag system to the steering wheel in the vehicle. Through this cable, electrical signals are allowed to pass as the steering wheel turns, which is crucial for deploying the airbag.
Q: How do I remove and install the airbag spiral cable in a Toyota Corolla?
A: To remove and install the airbag spiral cable in a Toyota Corolla, you first have to disconnect the battery for safety reasons. Afterward, remove the steering wheel and gently pull out the old spiral cable. Install the new airbag spiral cable by following the removal procedures in reverse, ensuring proper alignment. You can always refer to some YouTube videos for detailed instructions.
Q: Could I reset the airbag system after the spiral cable replacement?
A: Yes. After installing a new spiral cable, the airbag system may need to be reset. This can generally be effectuated through the employment of a diagnostic tool or by following instructions specific to the model of vehicle you have, such as a Nissan or a Toyota Prius.
Q: Where can I obtain a new airbag spiral cable for my car?
A: There are several options for buying a new spiral cable, including eBay, stores selling auto parts, or an official dealership, as one can read from several online discussions. However, it’s advisable first to ascertain that the part fits one’s exact vehicle, whether that may be a Toyota Corolla or a Nissan.
Q: What to do if the airbag light shows up after replacing the spiral cable?
A: If the airbag light reveals itself after replacing the spiral cable, it speaks about some unsuccessful installation, or the trouble may lie within the airbag system itself. You may want to consider taking your car to the dealership for a thorough diagnostic check.
Q: Are there any recalls for the airbag spiral cable in a vehicle?
A: Yes, the airbag spiral cable has been recalled in several different vehicles. It is essential to check with the manufacturer or your local dealership for any recalls that may be specific to your car model, including those from Toyota and Nissan.
Q: How can I find related videos on installing a spiral cable for an airbag?
A: Searching on YouTube for the phrases “install airbag spiral cable” or “clock spring replacement for Toyota Corolla” is most likely to provide related videos on installing the airbag spiral cable.
Q: What is the function of the connector in the airbag spiral cable system?
A: The connector is essential as it electrically links the airbag system with the steering wheel through the airbag spiral cable, ensuring proper signaling for airbag deployment during an accident to protect the occupants.
Q: What is the function of the airbag system in my car?
A: The airbag system in your car functions as an added safety element during a collision. The system activates the airbag to cushion occupants from impact and reduce injuries. The airbag clock spring is crucial for the proper functioning of the airbags.
Reference Sources
1. Design of a Spiral Double-Cutting Machine for an Automotive Bowden Cable Assembly Line
- Authors: A. F. Barbosa et al.
- Published In: Machines
- Publication Date: September 15, 2022
- Citation Token: (Barbosa et al., 2022)
- Summary:
- Designing a machine capable of simultaneously cutting and cleaning two spiral cables, for automotive use, is the research topic. The study highlights the significance of automation in the production process, aiming to enhance efficiency and minimize defects.
- Key Findings:
- The machine, thus designed, could satisfy the requirements of whole automatic operation while doubling the output compared to existing solutions.
- The installation of the machine is likely to result in better quality and uniformity of Bowden cables used in automotive systems.
- In consideration of this document, the squib circuit, which includes the airbag sensor assembly, spiral cable, and various other components, is discussed.
3. Airbag
