N2XBY/NA2XBY

Q: Q: N2XBY vs. NA2XBY: What’s the real difference?

A: Just the conductor metal. N2XBY is Copper. NA2XBY (with the 'A') is Aluminum. Structurally? Identical. Aluminum is just cheaper and lighter.

Q: Q: Voltage rating?

A: Standard Low Voltage: 0.6/1kV .

Q: Q: What kind of armor is it?

A: Double Steel Tape (DSTA). We wrap two layers of galvanized steel tape around it. Unlike wire armor, this is specifically designed to stop the cable from getting crushed by rocks or heavy soil pressure.

Q: Q: Insulation material?

A: XLPE. It runs at 90°C , so you get better ampacity than old-school PVC cables.

Q: Q: Can I get a sample first?

A: Yep. We can ship a short cut so you can inspect the layers and quality yourself before committing to a full drum.

Q: Q: Can I bury this underground?

A: Definitely. That’s exactly what the tape armor is for. It makes the cable tough enough for direct burial in trenches.

Q: Q: Can you customize the specs?

A: Sure. Need a specific jacket color or a non-standard length? Just tell us what you need. We’ll build it.

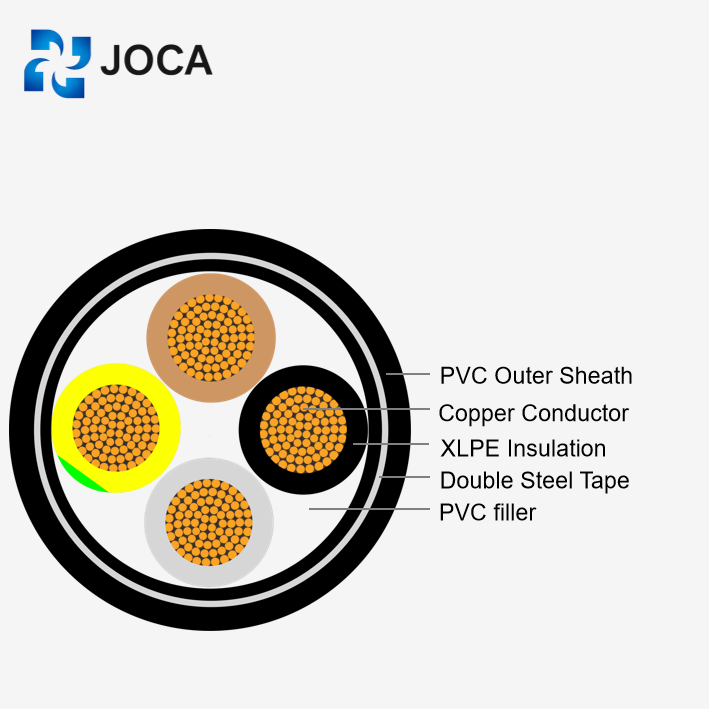

0.6/1kV Multi Core XLPE Insulation Double Steel Tape Armoured and PVC Jacket power cable

Conductor : copper conductor or aluminium conductor
Insulation : Extruded layer of Cross-linked Polyethylene (XLPE)
Bedding : Extruded layer of Polyvinyl Chloride (PVC) – Type (ST2)
Armouring : Double layers of galvanized steel tapes.
Outer Jacket : Extruded layer of Polyvinyl Chloride (PVC) – Type (ST2)

Save at least 30% on average

Home » Power Cable » N2XBY/NA2XBY

Product Description

N2XBY/NA2XBY : Product Description and Specifications

The N2XBY (Copper) and NA2XBY (Aluminum) series are heavy-duty 0.6/1kV cables built for one main purpose: crush resistance. Instead of armor wires, we wrap these with Double Steel Tape Armor (DSTA). This makes the cable rock-hard against lateral pressure—perfect for direct burial in rocky soil where standard cables would get crushed. We pair this with XLPE insulation (rated for 90°C) so you can push higher loads than standard PVC cables without overheating.

Advantages

N2XBY/NA2XBY: Benefits and Features

0.6/1kV Rating: Standard Low Voltage spec.
Copper or Aluminum: Your choice. Go Copper for conductivity or Aluminum to save the budget.
Why XLPE? It handles 90°C. Beats standard PVC (which quits at 70°C) hands down for thermal stability.
Double Steel Tape Armor (DSTA): Two layers of galvanized steel. Unlike wire armor, this is built specifically for crush resistance in rocky soil.
Tough PVC Sheath: Type ST2 jacket. Formulated to take a beating and resist abrasion in the trench.

Dimensions/Parameters

0.6/1kV Copper Conductor Multi Core XLPE Insulation Double Steel Tape Armoured and PVC Jacket Power Cable

Category	Max Conductor Resistance DC at 20°C (Ω/km)	Max Conductor Resistance AC at 90°C (Ω/km)	Continuous Current - Laid in Ground (A)	Continuous Current - Laid in Ducts (A)	Continuous Current - Laid in Free Air (A)	Approx. Overall Diameter (mm)	Approx. Overall Weight (kg/km)
Two Core Cables	3.0800	3.9274	67	49	62	15.4	430
Two Core Cables	1.8300	2.3336	89	65	83	16.6	530
Two Core Cables	1.1500	1.4667	114	84	110	18.6	705
Two Core Cables	0.7270	0.9275	148	111	148	21.7	1000
Two Core Cables	0.5240	0.6688	177	134	180	23.8	1260
Three Core Cables	3.0800	3.9274	55	40	52	16.2	500
Three Core Cables	1.8300	2.3336	74	54	70	17.9	615
Three Core Cables	1.1500	1.4667	95	70	93	20.1	835
Three Core Cables	0.7270	0.9275	123	92	124	23.4	1170
Three Core Cables	0.5240	0.6688	140	106	140	22.8	1390
Three Core Cables	0.3870	0.4944	166	128	171	25.8	1790
Three Core Cables	0.2680	0.3431	203	159	215	29.7	2495
Three Core Cables	0.1930	0.2481	243	193	263	33.3	3310
Three Core Cables	0.1530	0.1976	278	224	310	37.8	4430
Four Core Cables	4.6100	5.8783	45	37	41	16.0	480
Four Core Cables	3.0800	3.9274	55	40	52	17.3	590
Four Core Cables	1.8300	2.3336	74	54	70	19.2	755
Four Core Cables	1.1500	1.4667	95	70	93	21.7	1070
Four Core Cables	0.7270	0.9275	123	92	124	25.4	1465
Four Core Cables	0.5240	0.6688	140	106	140	25.8	1780
Four Core Cables	0.3870	0.4944	166	128	171	29.5	2370
Four Core Cables	0.2680	0.3431	203	159	215	34.0	3235
Four Core Cables	0.1930	0.2481	243	193	263	38.1	4630
Four Core Cables	0.1530	0.1976	278	224	310	42.6	5760
Four Core Cables	0.1240	0.1612	310	252	349	47.1	6990
Four Core Cables	0.0991	0.1302	349	287	402	52.1	8590
Four Core Cables	0.0754	0.1012	402	335	473	58.3	10995
Four Core Cables	0.0601	0.0829	452	380	541	63.9	13550
Four Core Cables	0.0470	0.0676	511	435	627	72.9	17260
Four Core Cables	0.0366	0.0561	570	491	713	81.8	22775
Four Core Cables with Reduced Neutral	0.7270 / 1.1500	0.9275 / 1.4667	123	92	124	24.5	1370
Four Core Cables with Reduced Neutral	0.5240 / 1.1500	0.6688 / 1.4667	140	106	140	25.8	1635
Four Core Cables with Reduced Neutral	0.3870 / 0.7270	0.4944 / 0.9275	166	128	171	29.3	2135
Four Core Cables with Reduced Neutral	0.2680 / 0.5240	0.3431 / 0.6688	203	159	215	32.6	2905
Four Core Cables with Reduced Neutral	0.1930 / 0.3870	0.2481 / 0.4944	243	193	263	37.4	4160
Four Core Cables with Reduced Neutral	0.1530 / 0.2680	0.1976 / 0.3431	278	224	310	40.5	5185
Four Core Cables with Reduced Neutral	0.1240 / 0.2680	0.1612 / 0.3431	310	252	349	44.7	6165
Four Core Cables with Reduced Neutral	0.0991 / 0.1930	0.1302 / 0.2481	349	287	402	49.6	7650
Four Core Cables with Reduced Neutral	0.0754 / 0.1530	0.1012 / 0.1976	402	335	473	55.5	9735
Four Core Cables with Reduced Neutral	0.0601 / 0.1240	0.0829 / 0.1612	452	380	541	60.6	11940
Four Core Cables with Reduced Neutral	0.0470 / 0.0991	0.0676 / 0.1302	511	435	627	68.5	15100
Four Core Cables with Reduced Neutral	0.0366 / 0.0754	0.0561 / 0.1012	570	491	713	76.1	19270

0.6/1kV Aluminum Conductor Multi Core XLPE Insulation Double Steel Tape Armoured and PVC Jacket Power Cable

Category	Max Conductor Resistance DC at 20°C (Ω/km)	Max Conductor Resistance AC at 90°C (Ω/km)	Continuous Current - Laid in Ground (A)	Continuous Current - Laid in Ducts (A)	Continuous Current - Laid in Free Air (A)	Approx. Overall Diameter (mm)	Approx. Overall Weight (kg/km)
Two Core Cables	3.0800	3.9490	68	50	64	16.6	410
Two Core Cables	1.9100	2.4490	89	65	85	18.6	515
Two Core Cables	1.2000	1.5388	115	86	115	21.2	675
Two Core Cables	0.8680	1.1133	138	104	140	23.8	840
Three Core Cables	3.0800	3.9490	57	41	54	17.9	440
Three Core Cables	1.9100	2.4490	73	54	72	20.1	545
Three Core Cables	1.2000	1.5388	95	72	97	22.8	700
Three Core Cables	0.8680	1.1133	108	82	108	22.8	750
Three Core Cables	0.6410	0.8224	129	99	132	25.8	930
Three Core Cables	0.4430	0.5688	158	124	167	29.7	1235
Three Core Cables	0.3200	0.4115	189	150	204	33.3	1575
Three Core Cables	0.2530	0.3259	217	174	241	37.8	2245
Four Core Cables	3.0800	3.9490	57	41	54	19.2	515
Four Core Cables	1.9100	2.4490	73	54	72	21.7	640
Four Core Cables	1.2000	1.5388	95	72	97	24.8	845
Four Core Cables	0.8680	1.1133	108	82	108	25.8	930
Four Core Cables	0.6410	0.8224	129	99	132	29.5	1180
Four Core Cables	0.4430	0.5688	158	124	167	34.0	1560
Four Core Cables	0.3200	0.4115	189	150	204	38.1	2315
Four Core Cables	0.2530	0.3259	217	174	241	42.6	2845
Four Core Cables	0.2060	0.2660	241	196	272	47.1	3390
Four Core Cables	0.1640	0.2126	274	255	314	52.1	4075
Four Core Cables	0.1250	0.1634	317	264	372	58.3	5105
Four Core Cables	0.1000	0.1321	357	301	428	63.9	6085
Four Core Cables	0.0778	0.1047	410	349	503	72.9	7705
Four Core Cables	0.0605	0.0838	464	400	580	81.8	10245
Four Core Cables with Reduced Neutral	0.6410 / 1.2000	0.8224 / 1.5388	129	99	132	29.3	1125
Four Core Cables with Reduced Neutral	0.4430 / 0.8680	0.5688 / 1.1133	158	124	167	32.6	1435
Four Core Cables with Reduced Neutral	0.3200 / 0.6410	0.4115 / 0.8224	189	150	204	37.4	2140
Four Core Cables with Reduced Neutral	0.2530 / 0.4430	0.3259 / 0.5688	217	174	241	40.5	2580
Four Core Cables with Reduced Neutral	0.2060 / 0.4430	0.2660 / 0.5688	241	196	272	44.7	3045
Four Core Cables with Reduced Neutral	0.1640 / 0.3200	0.2126 / 0.4115	274	255	314	49.6	3690
Four Core Cables with Reduced Neutral	0.1250 / 0.2530	0.1634 / 0.3259	317	264	372	55.5	4590
Four Core Cables with Reduced Neutral	0.1000 / 0.2060	0.1321 / 0.2660	357	301	428	60.6	5445
Four Core Cables with Reduced Neutral	0.0778 / 0.1640	0.1047 / 0.2126	410	349	503	68.5	6805
Four Core Cables with Reduced Neutral	0.0605 / 0.1250	0.0838 / 0.1634	464	400	580	76.1	8405

Production Processes Of Power cable

To ensure superior quality, JOCA operates fully digitalized and automated production lines for power cables. Specifically, this comprehensive workflow covers conductor stranding, insulation extrusion, metallic screening, and final sheathing. Moreover, intelligent systems actively monitor each stage to ensure stable performance and consistent product quality. In addition, the factory utilizes advanced testing facilities, such as partial discharge testing, tensile testing, and spark testing. Consequently, these rigorous measures guarantee that every delivered cable strictly meets international standards.

Packing For Shipment

To meet various transportation needs, there are many methods of packaging that can be used.

Have more questions?

Easily get started by finding the answers to commonly asked questions about our company and services.

Q: N2XBY vs. NA2XBY: What’s the real difference?

A: Just the conductor metal. N2XBY is Copper. NA2XBY (with the ‘A’) is Aluminum. Structurally? Identical. Aluminum is just cheaper and lighter.

Q: Voltage rating?

A: Standard Low Voltage: 0.6/1kV.

Q: What kind of armor is it?

A: Double Steel Tape (DSTA). We wrap two layers of galvanized steel tape around it. Unlike wire armor, this is specifically designed to stop the cable from getting crushed by rocks or heavy soil pressure.

Q: Insulation material?

A: XLPE. It runs at 90°C, so you get better ampacity than old-school PVC cables.

Q: Can I get a sample first?

A: Yep. We can ship a short cut so you can inspect the layers and quality yourself before committing to a full drum.

Q: Can I bury this underground?

A: Definitely. That’s exactly what the tape armor is for. It makes the cable tough enough for direct burial in trenches.

Q: Can you customize the specs?

A: Sure. Need a specific jacket color or a non-standard length? Just tell us what you need. We’ll build it.
